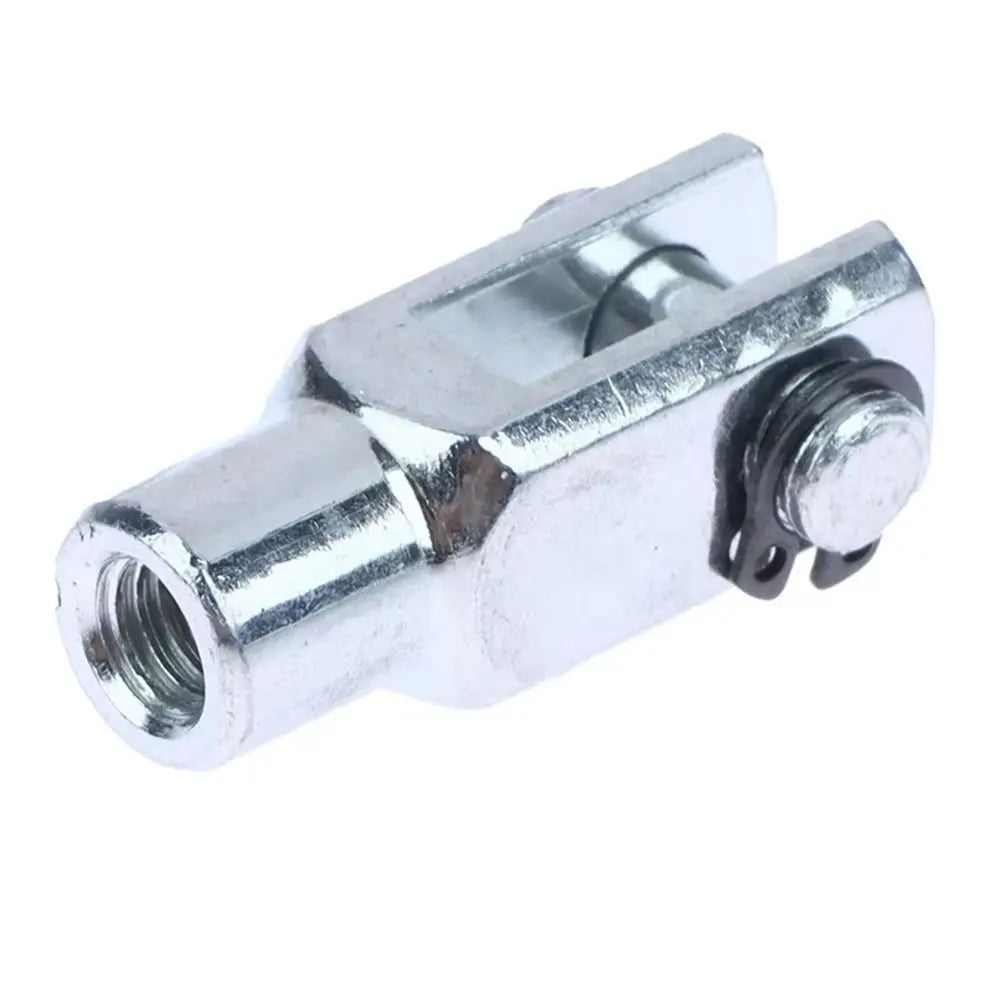

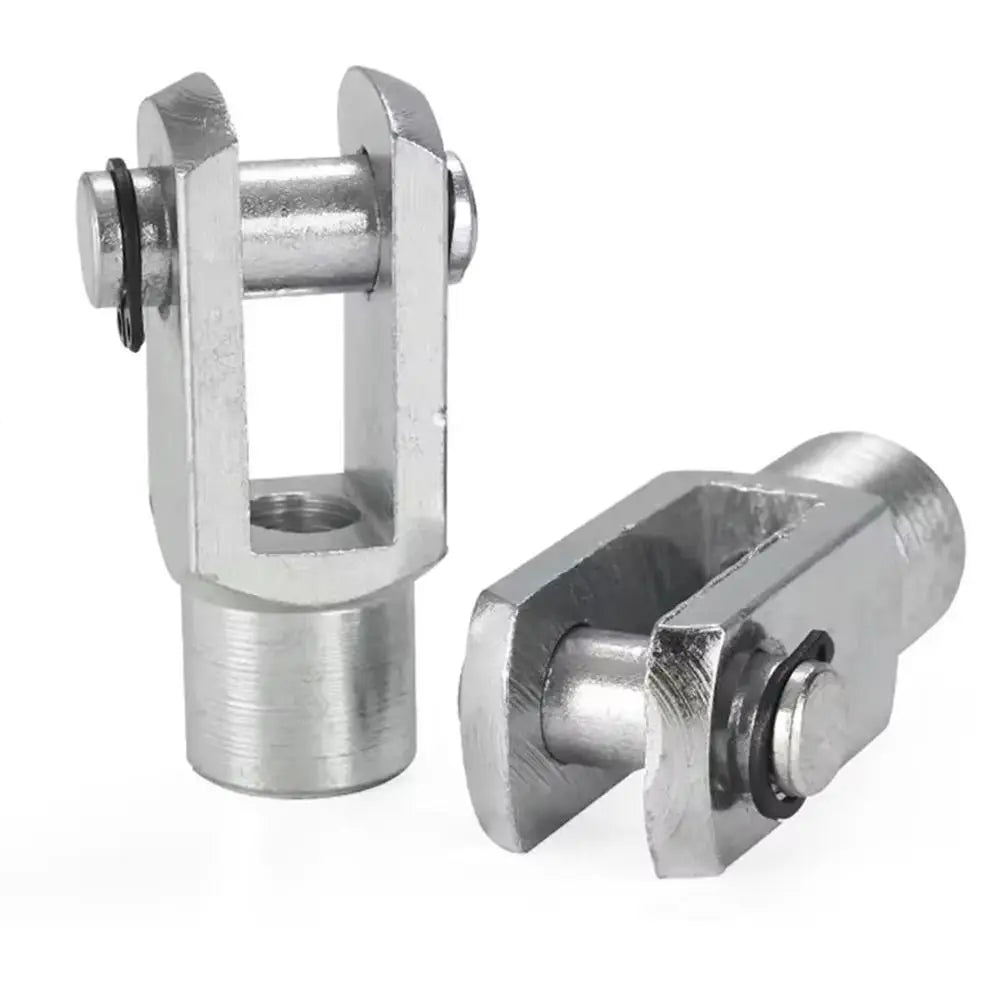

Metal Pneumatic Cylinder Clevis – Y-Type Connector for SC, MAL & MA Cylinders
This heavy-duty metal pneumatic cylinder clevis is a precision-engineered Y-type joint designed to serve as a standard linkage connector on the connecting rods of pneumatic cylinders and gas springs. Available in multiple thread sizes — M6, M8, M12, M16, and M20 — this clevis provides a secure, vibration-resistant flange connection for reliable static force transmission in industrial and workshop applications.
Key Features
- Y-Type Clevis Design: Provides a robust, articulated connection between cylinder rods and external linkage components.
- Wide Thread Compatibility: Available in M6, M8, M12, M16, and M20 threaded configurations to suit a variety of cylinder rod diameters.
- Broad Cylinder Compatibility: Fits SC, MAL, and MA standard pneumatic cylinders, giving you versatile installation options.
- Galvanized Iron Construction: Nickel-plated, galvanized iron build offers solid structural integrity for static force applications with operating pressure under 850 kPa.
- Flange Connection Type: Engineered for reliable, secure rod attachment in automated and pneumatic machinery setups.
Specifications
- Material: Galvanized Iron (Nickel Plated)
- Connection Type: Flange / Y-Type

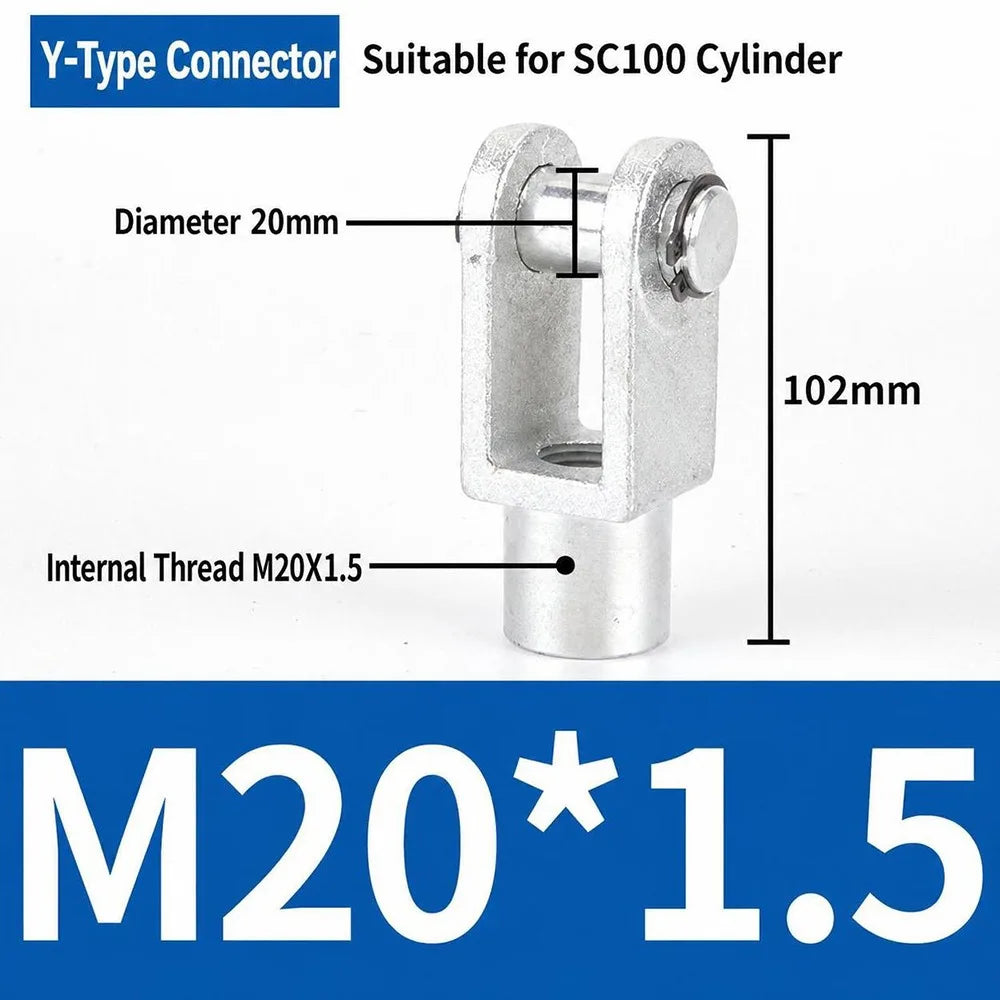

- Thread Sizes: M6, M8, M12, M16, M20
- Max Operating Pressure: <850 kPa
- Compatible Cylinders: SC, MAL, MA Standard Cylinders
- Quantity: 1 Piece
- Country of Origin: Made in China
What's in the Box?
- 1× Metal Pneumatic Cylinder Clevis (Y-Type Joint)
Please Note
- Color may vary slightly from images due to monitor brightness and lighting conditions.
- Allow ±1–2 mm for manual measurement variance.
- 1 cm = 0.39 inches.
You May Also Like
For other workshop and repair tools, check out our 10-in-1 Multi Functional Bone Wrench Hex Socket Spanner and our 16-in-1 Multi-Function Bike Repair Tool Folding Hex Wrench Set — perfect additions to any toolbox.
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What thread sizes does this pneumatic cylinder clevis come in?
A: This cylinder clevis is available in M6, M8, M12, M16, and M20 threaded configurations, making it compatible with a wide range of standard pneumatic cylinder rod diameters used in industrial and automation applications.
Q: Which pneumatic cylinders is this clevis compatible with?
A: This Y-type clevis connector is designed to fit SC, MAL, and MA standard pneumatic cylinders, as well as gas springs that use a threaded rod end connection with a flange-type linkage.
Q: What material is this cylinder clevis made from?
A: The clevis is constructed from galvanized iron with a nickel-plated finish, providing good structural strength for static force transmission at operating pressures under 850 kPa.
