Ultra-Compact 10mm Planetary Stepper Gear Motor for Precision Applications

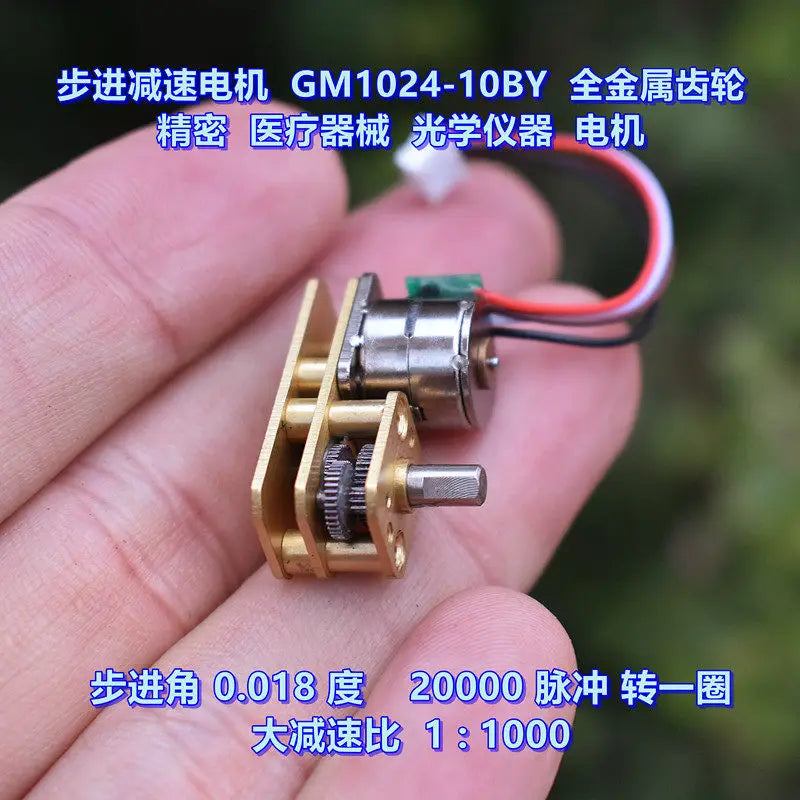

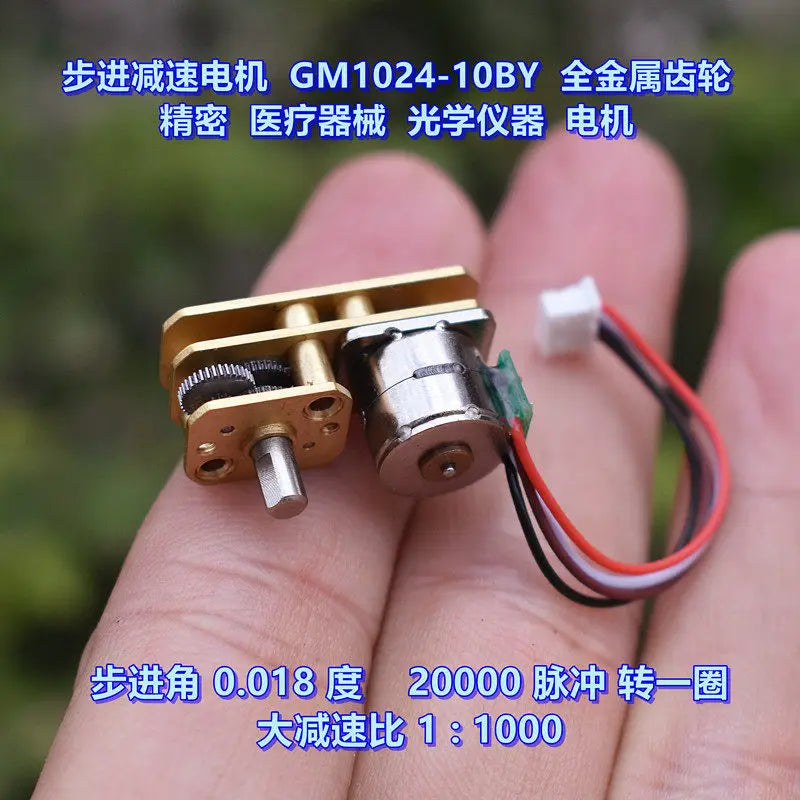

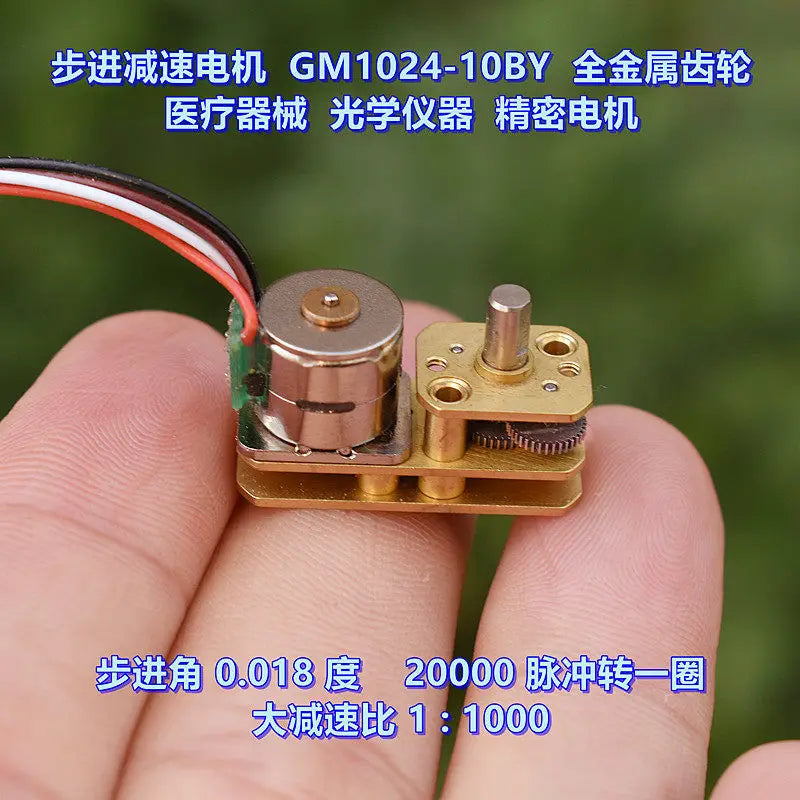

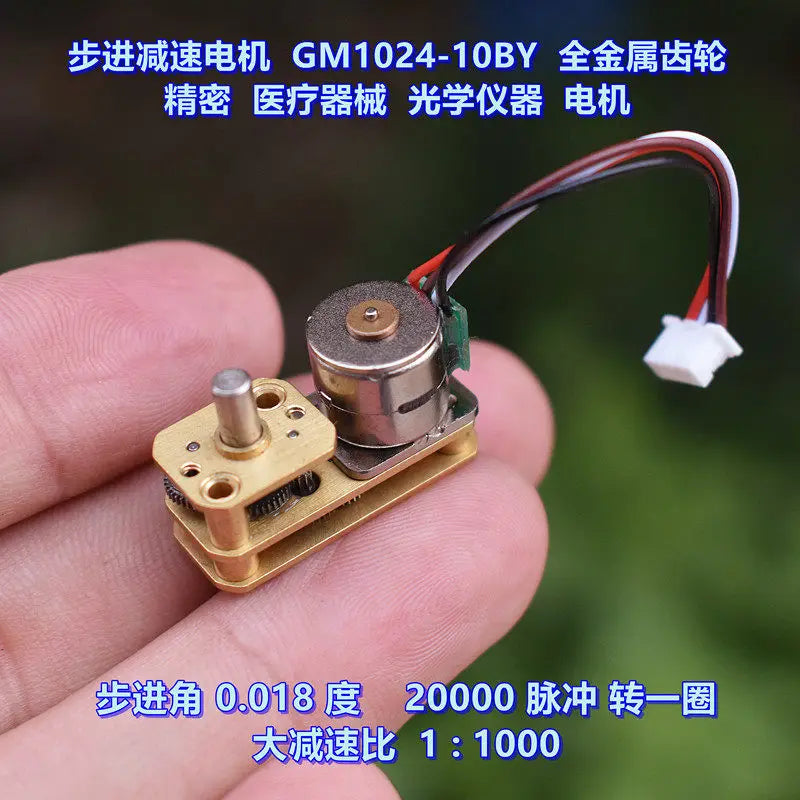

Engineered for demanding precision work, this miniature 2-phase, 4-wire stepper gear motor packs remarkable accuracy into a 10mm outer diameter package. With a full metal planetary gear train and a flipped output shaft design, it delivers ultra-fine positional control — ideal for optical instruments, robotic systems, camera focus mechanisms, lab automation, and any project where repeatable micro-movement is critical.
Key Features
- Ultra-Compact Design: 10mm outer diameter, weighing approximately 10 grams — fits where other motors simply cannot.
- Exceptional Precision: 0.018° output shaft stepping angle — just 20,000 pulses completes a full 360° revolution for smooth, highly accurate motion.
- High Gear Reduction: 1:1000 planetary gear ratio delivers high torque output in a tiny footprint.
- Full Metal Planetary Gears: All-metal gear construction ensures durability, low backlash, and long service life under continuous operation.
- Flipped Output Shaft: 3mm diameter output shaft (2.7mm with D-flat), 6mm in length — convenient for space-constrained assemblies.
- Rated at 12V DC: ~10Ω phase resistance, ~2.0mH inductance per phase, ~0.4A short-circuit current at 5V.
- Reliable Electrical Performance: Max pull-out frequency 1200 pps @ 5.0V; max pull-in frequency 1000 pps @ 5.0V; insulation impedance 100MΩ/500VDC.
- 18° Motor Step Angle: Standard 2-phase stepping for compatibility with most stepper driver boards (driver required — sold separately).
- Short Lead Wires: ~45mm wire length for easy integration into compact enclosures.
Technical Specifications
| Parameter | Value |
|---|---|

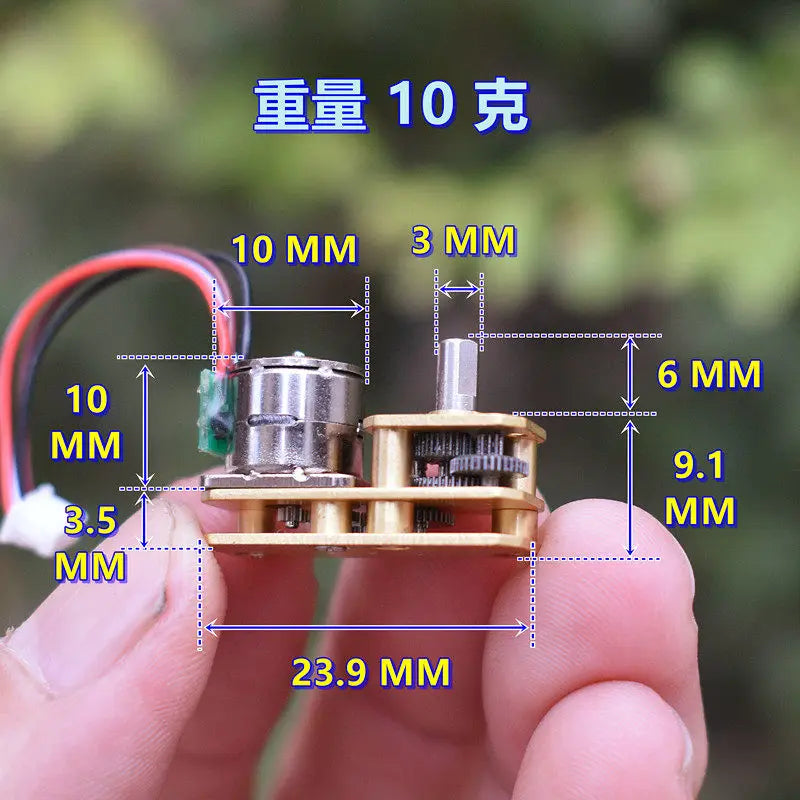

| Motor Outer Diameter | 10 mm |
| Motor Type | 2-Phase, 4-Wire Stepper (driver required) |
| Gearing Arrangement | Planetary (Full Metal) |
| Rated Voltage | 12V DC |
| Motor Step Angle | 18° |
| Gear Reduction Ratio | 1:1000 |
| Output Shaft Step Angle | 0.018° (20,000 pulses = 360°) |

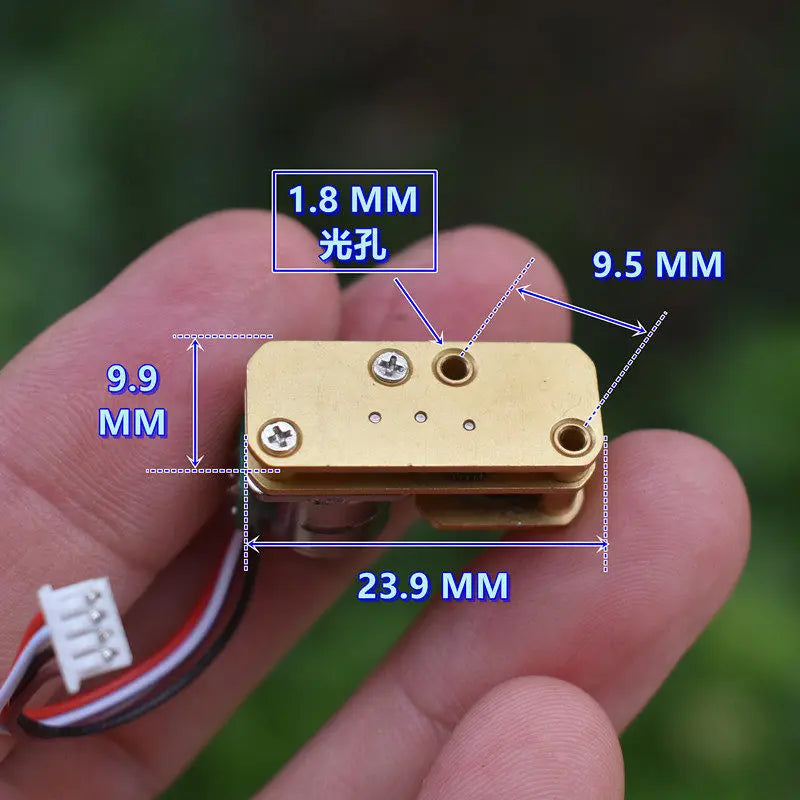

| Output Shaft Diameter | 3mm (2.7mm with D-flat) |
| Output Shaft Length | 6mm |
| Motor Weight | ~10 g |
| Phase Resistance | ~10 Ω |
| Inductance (Phase A & B) | 2.0 mH each |
| Short-Circuit Current @ 5V | ~0.4 A |
| Max Pull-Out Frequency | 1200 pps @ 5.0V |
| Max Pull-In Frequency | 1000 pps @ 5.0V |
| Insulation Impedance | 100 MΩ / 500VDC |
| Wire Length | ~45 mm |
| Country of Origin | Made in China |
