Mini ESC Servo Tester – Precise PWM Signal Output for RC Aircraft & Models
Take full control of your RC builds with this compact 3–8V Mini ESC Servo Tester. Powered by a single-chip microcomputer kernel, it delivers accurate and stable PWM signal output perfectly matched to standard RC remote control systems. Whether you're testing servos, brushless motors, or electronic speed controllers, this pocket-sized tool makes the job fast and hassle-free.
Made in Mainland China.
Key Features
- Single-chip microcomputer kernel for accurate, consistent signal output
- Standard 1000–2000µs / 50Hz PWM output closely matched to typical RC remote control output

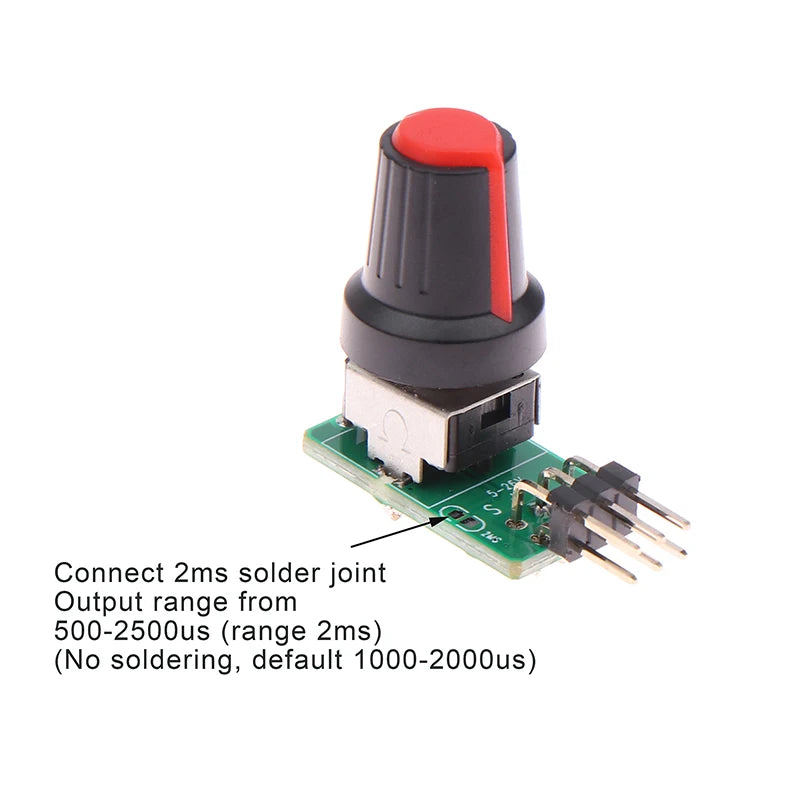

- Solder-point modification allows expanded 500–2500µs output range, enabling 180° steering gear operation
- ESC compatible – tests electronic speed controllers, which are also PWM signal driven
- Double-row pin structure with two identical signal ports for easy power supply and parallel testing
- Wide voltage range: 3–8V – supports high-voltage servos including 2S lithium battery setups (note: 5V servos should not be powered with a 2S supply)
- Built-in power indicator LED visible through the housing for at-a-glance status

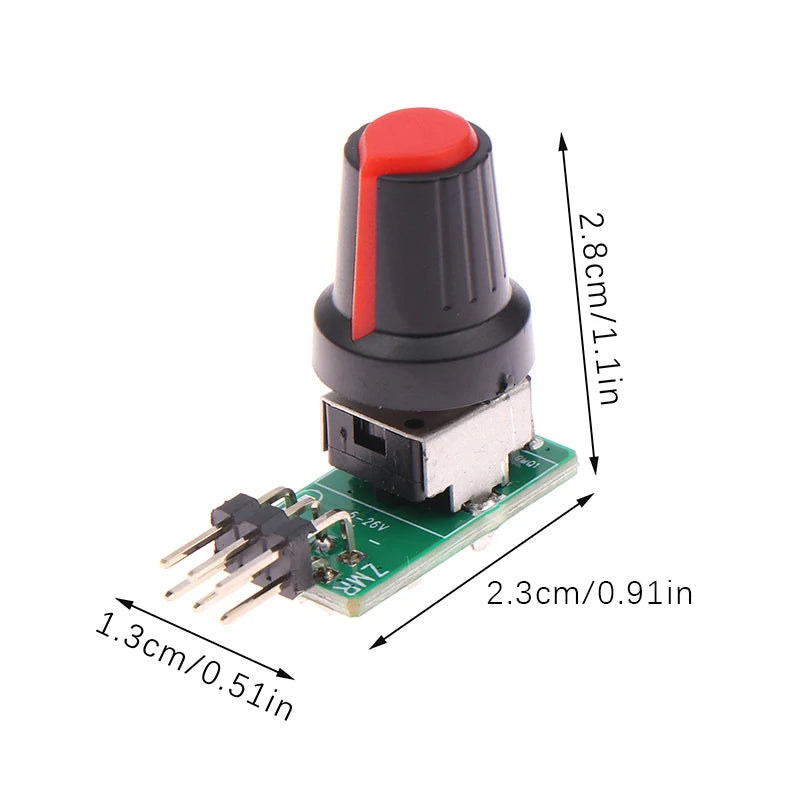

- Ultra-compact size: 1.5 × 2.3 × 2.8 cm – fits in any tool kit or flight bag
Specifications
| Input Voltage | 3–8V DC |
| PWM Output | 1000–2000µs @ 50Hz (standard); 500–2500µs (with solder mod) |
| Dimensions | 1.5 × 2.3 × 2.8 cm |
| Package Contents | 1 × Mini ESC Servo Tester |
| Country of Origin | Mainland China |
Perfect For
- RC aircraft, drones, helicopters, and fixed-wing models
- DIY brushless motor and fan governor testing
- Servo bench testing before installation
- ESC calibration and signal verification
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Note: Due to manual measurement, please allow a tolerance of 1–3mm. Colors may vary slightly between devices due to monitor calibration differences.
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What voltage range does this mini ESC servo tester support?
A: This servo tester operates on a wide 3–8V input voltage range, making it compatible with standard 5V setups as well as higher-voltage 2S lithium battery configurations. Please note that 5V servos should not be powered directly from a 2S (7.4V) supply.
Q: Can this servo tester be used to test electronic speed controllers (ESCs)?
A: Yes! Since ESCs are also driven by PWM signals, this tester works perfectly for ESC testing and calibration, in addition to standard servo and brushless motor governor testing.
Q: Can the PWM output range be extended beyond 1000–2000µs?
A: Yes. The board includes solder points that, when bridged, extend the output to 500–2500µs. This wider range allows the tester to drive servo mechanisms capable of 180° rotation.
Q: Is this servo tester compatible with all RC aircraft models?
A: This tester is designed to be broadly compatible with RC aircraft, helicopters, drones, fixed-wing models, and other RC builds that use standard PWM-driven servos, motors, or ESCs.
