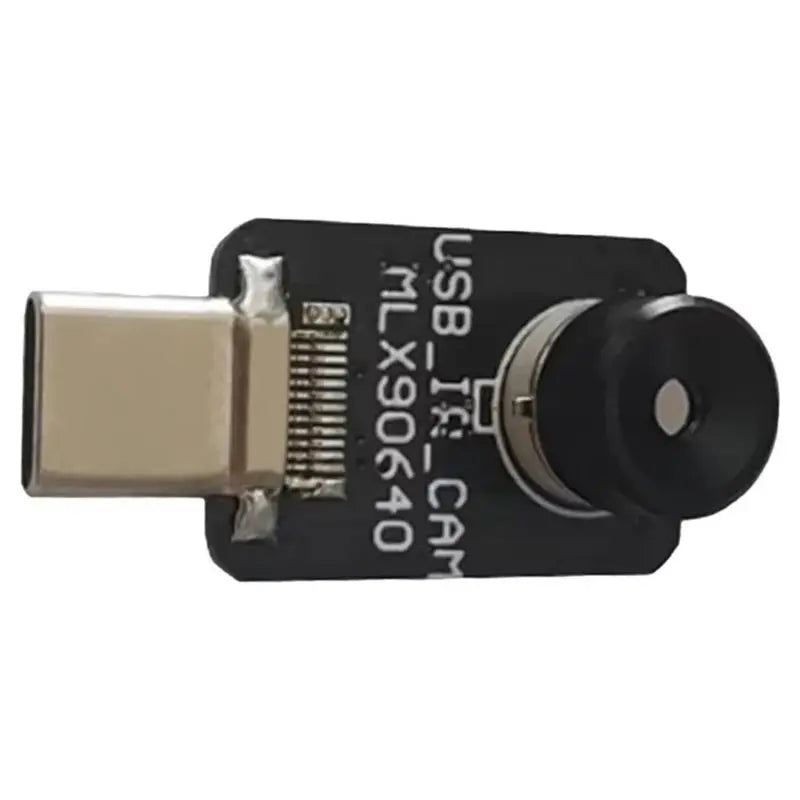

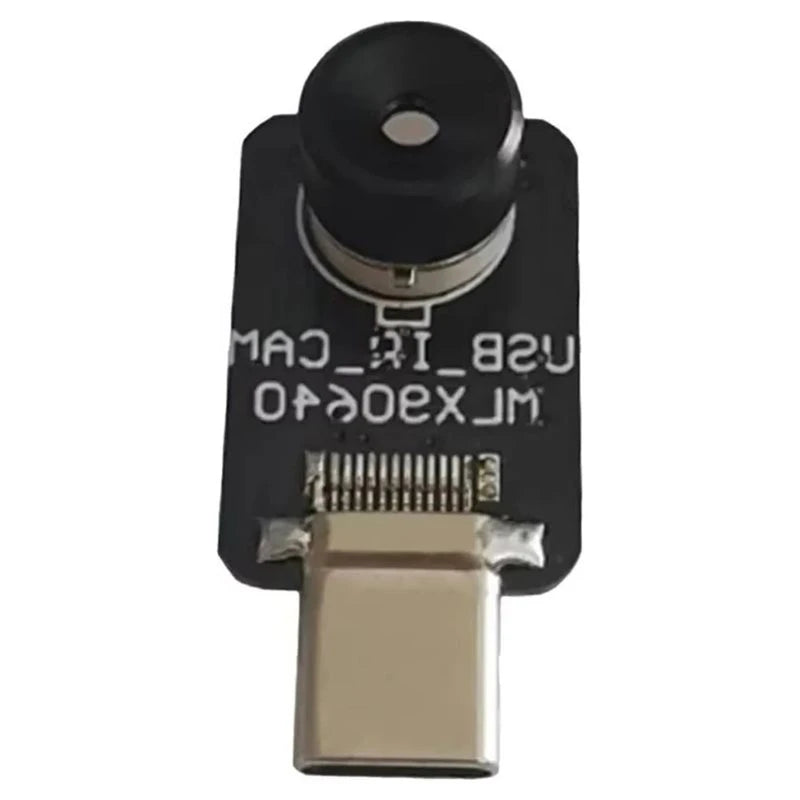

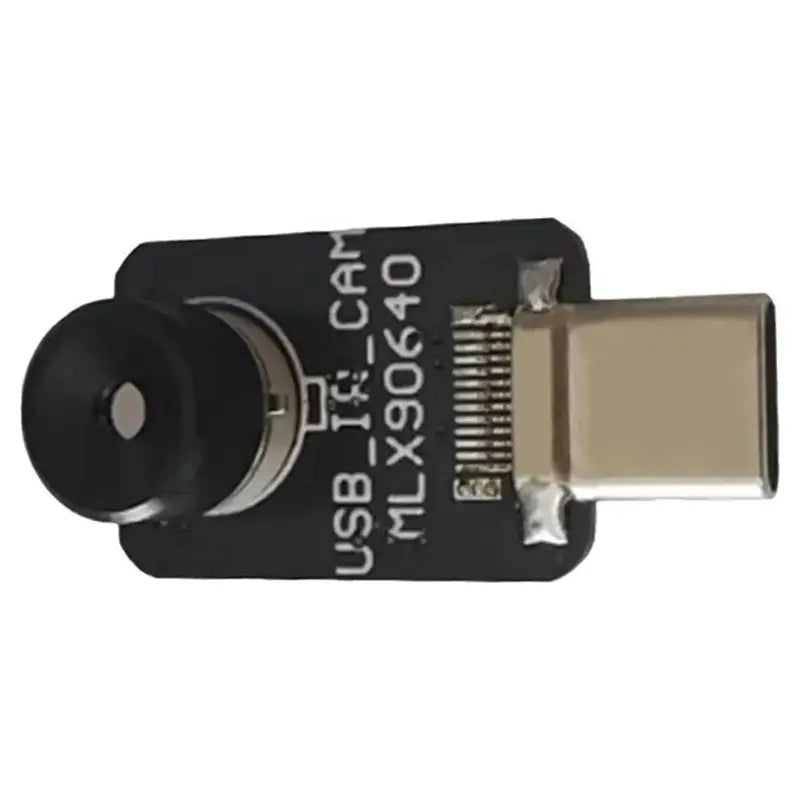

MLX90640BAA Mobile Thermal Imaging Module with Type-C Interface

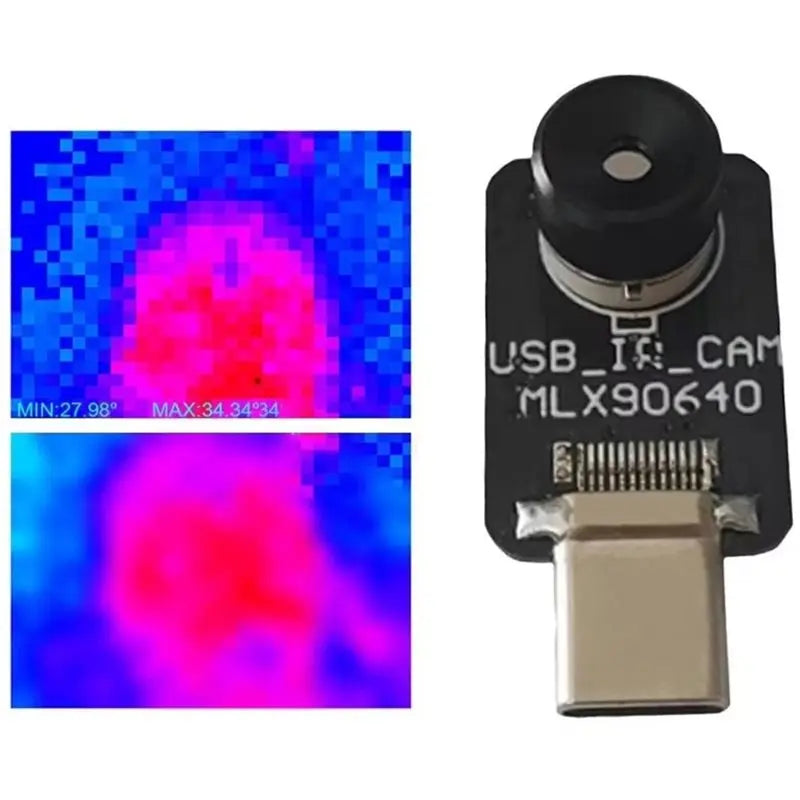

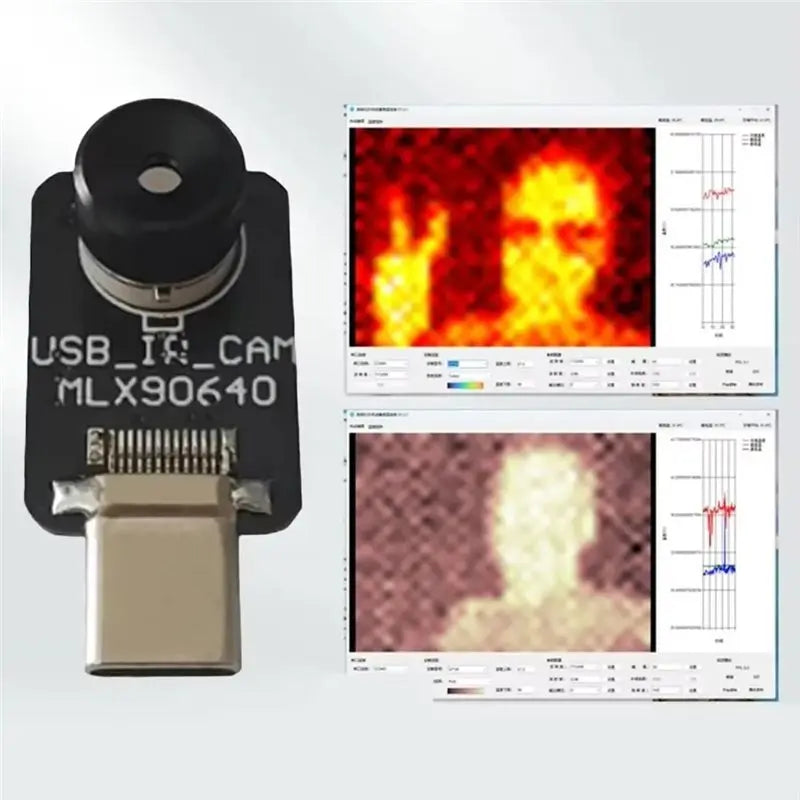

Take your temperature measurement capabilities to the next level with this compact MLX90640BAA Mobile Thermal Imaging Module. Featuring a 32×24 infrared sensor array and a convenient Type-C interface, this plug-and-play module connects directly to smartphones, tablets, or development boards for real-time thermal imaging — no battery required. Made in Mainland China.
Key Features
- High-Precision Non-Contact Sensing: Detects surface temperatures from –40°C up to 300°C with ±1°C accuracy.
- Type-C Plug-and-Play: Simply connect via Type-C interface at 5V operating voltage — no drivers or bulky hardware needed.
-
Dual Field-of-View Options:
- 55° × 35° — narrow angle, ideal for long-distance measurement
- 110° × 75° — wide angle, ideal for short-distance measurement
- Programmable Refresh Rate: Adjustable from 1 Hz to 8 Hz to suit your application needs.
- Wide Operating Range: Functions reliably in environments from –40°C to 85°C.
- Compact & Lightweight: Slim 25.5 mm × 12.5 mm ABS housing fits easily into portable setups.
- Versatile Communication: UART (TTL) interface for easy integration with microcontrollers and development boards.
Specifications
| Model | MLX90640BAA |
| Material | ABS Plastic |
| Dimensions | 25.5 mm × 12.5 mm |
| Interface | Type-C |
| Color | Black |
| Operating Voltage | 5V DC |
| Operating Current | <50 nA |
| Communication | UART (TTL) |
| Field of View | 55°×35° or 110°×75° (variant dependent) |
| Operating Temperature | –40°C to 85°C |
| Target Temperature Range | –40°C to 300°C |
| Detection Accuracy | ±1°C |
| Refresh Rate | 1 Hz – 8 Hz (programmable) |
| Sensor Resolution | 32 × 24 pixels |
| Battery Required | No |
Common Applications
- Equipment and industrial temperature monitoring
- Fire detection and safety systems
- Smart home, smart building, and smart lighting automation
- Security, intrusion, and motion detection systems
- DIY electronics and microcontroller projects (Arduino, Raspberry Pi, etc.)
- HVAC and industrial temperature control
What's in the Box
- 1 × MLX90640BAA Mobile Thermal Imaging Module
Looking for more measurement and tools accessories? Check out the A01F Full Spectrum PAR PPFD Light Meter for Indoor Grow Lights or the 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner for more versatile tools.
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What devices is this thermal imaging module compatible with?
A: The MLX90640BAA Mobile Thermal Imaging Module connects via a standard Type-C interface and communicates over UART (TTL). It is compatible with smartphones, tablets, and single-board computers (such as Arduino and Raspberry Pi) that support Type-C connections and serial communication. Always verify your device's Type-C data support before use.
Q: What is the difference between the 55° and 110° field-of-view variants?
A: The 55° × 35° variant offers a narrower field of view, making it better suited for measuring temperatures at longer distances with greater focus. The 110° × 75° variant provides a wider field of view, ideal for capturing temperature distribution across a broader area at closer range — such as room occupancy sensing or appliance monitoring.
Q: Does this module require an external power source or battery?
A: No external battery is required. The module draws power directly through its Type-C interface at 5V DC with an operating current of less than 50 nA, making it extremely energy-efficient and convenient for mobile and embedded applications.
Q: What temperature range can this sensor detect?
A: The MLX90640BAA can measure target surface temperatures ranging from –40°C to 300°C with a detection accuracy of ±1°C, making it suitable for a wide range of industrial, safety, and smart-home measurement tasks.
