Multi-Surface Shape Contour Gauge Duplicator & Angle Measuring Tool

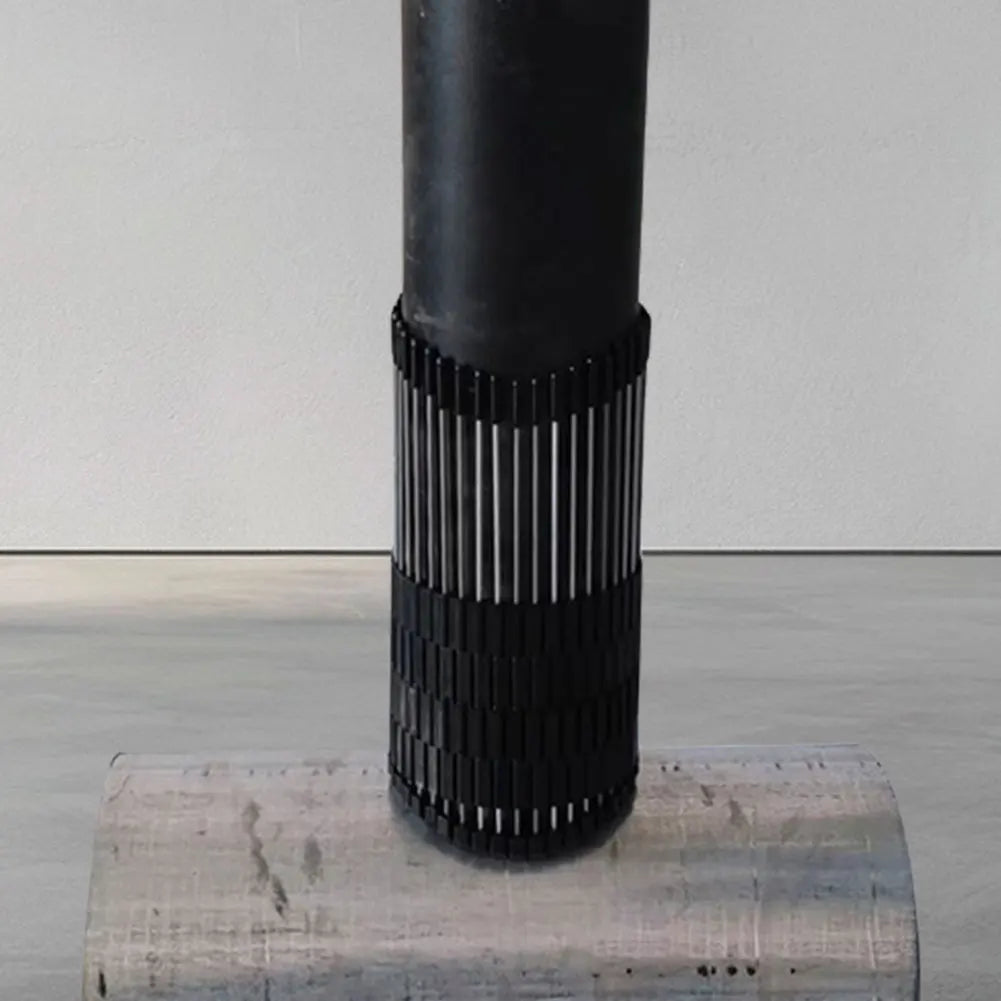

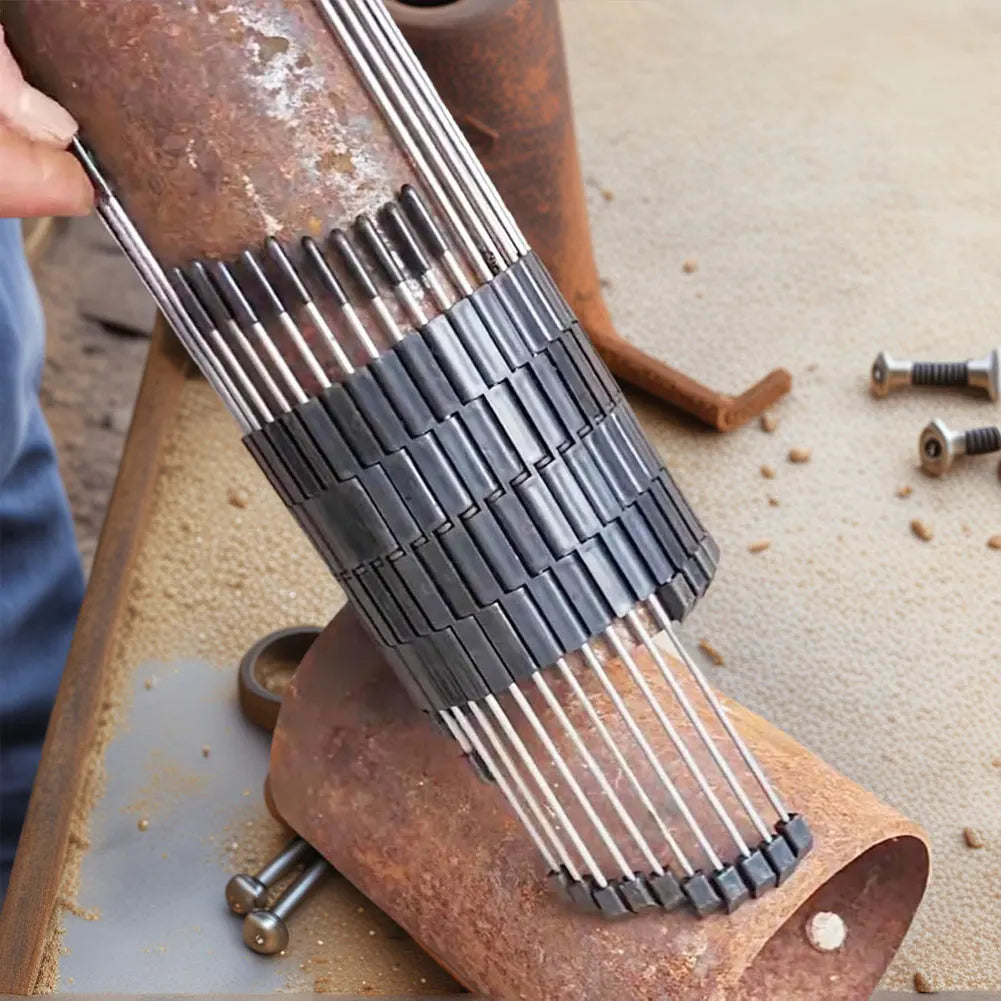

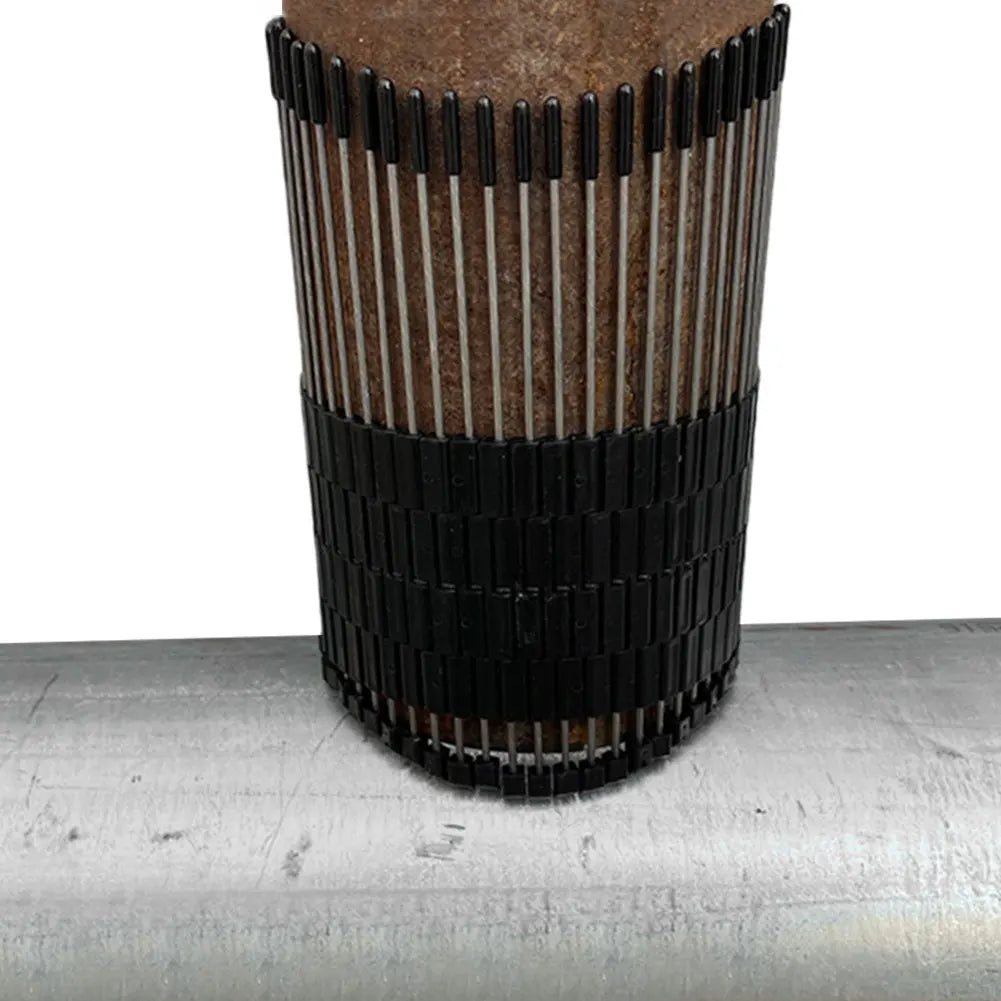

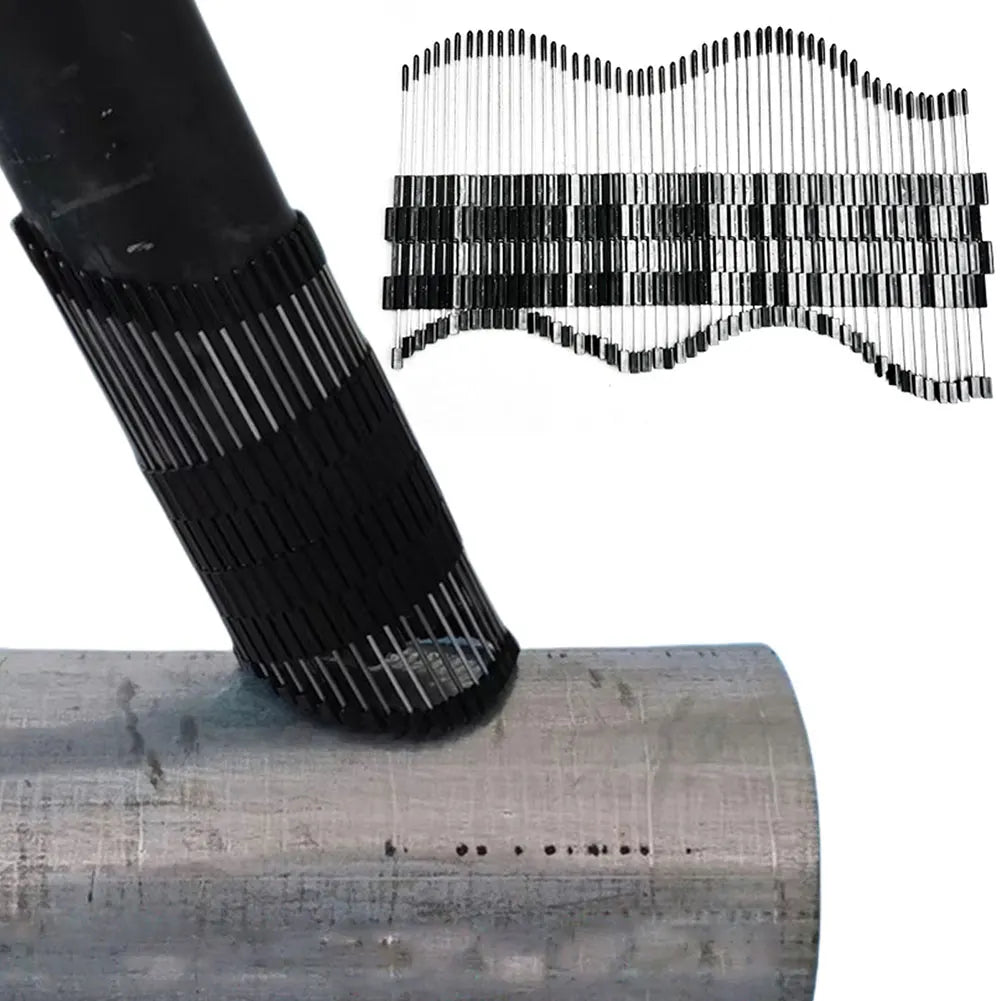

Take the guesswork out of tricky cuts and fits with this versatile Shape Contour Gauge Duplicator. Whether you're working on plumbing, woodworking, tiling, or general home improvement, this tool instantly traces and transfers any profile — pipes, moldings, frames, and more — so you get a perfect match every time. Available in two sizes to suit 0–3 in or 0–6 in pipe profiles.
Key Features
- Sturdy Construction: Built with steel wire and ABS plastic for excellent durability and wear resistance, suitable for both professional trades and DIY home projects.
- Multi-Surface Versatility: Works on metal, plastic, wood, tile, and more — making it a go-to tool for a wide range of measuring and fitting tasks.
- Effortless Operation: Simply press the gauge against any surface to instantly capture and duplicate the contour. No complex skills required — saves time and effort on every job.
- Precision Fit Every Time: Engineered for accurate pipe profiling and surface measuring, ensuring clean, consistent results for plumbing, woodworking, and renovation work.

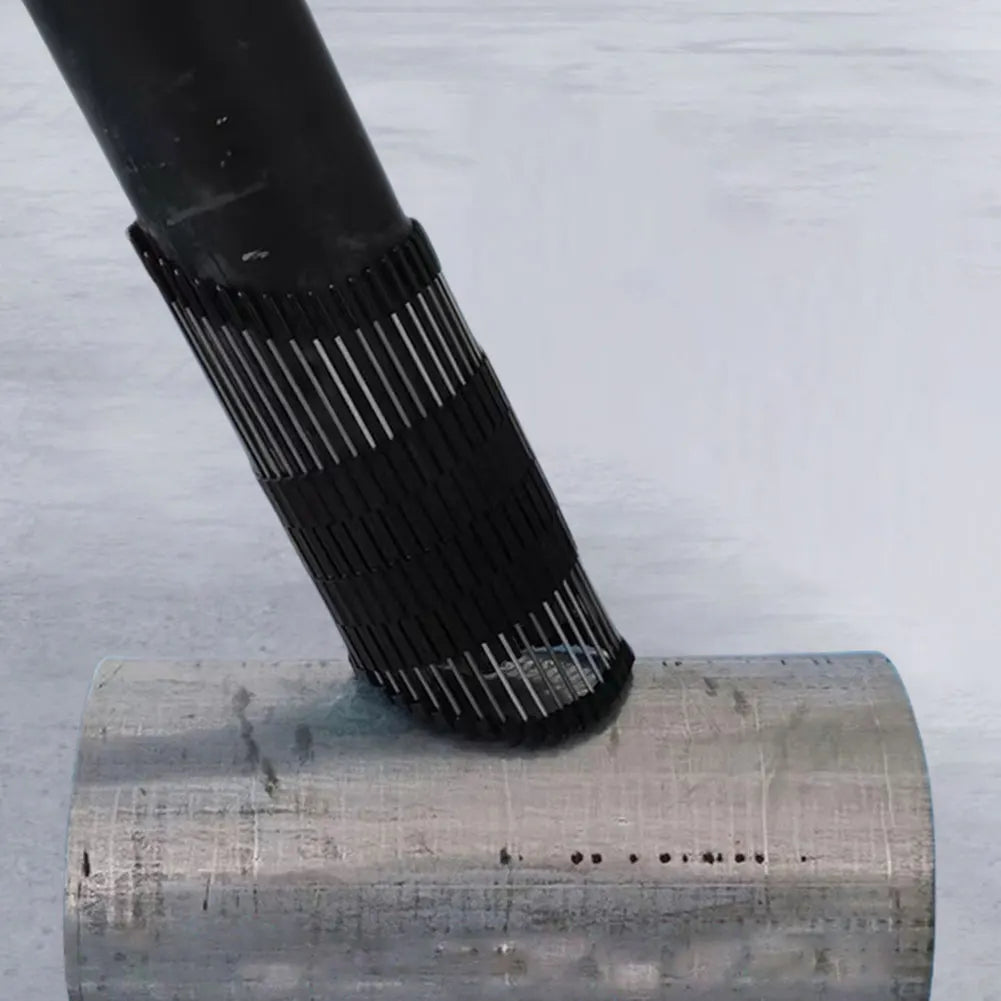

- 180° Free Rotation: Flexible multi-angle use lets you adapt to virtually any orientation or surface configuration.
- Compact & Portable: Lightweight design makes it easy to take to any job site or store in your toolbox without hassle.
Specifications
| Material | Steel Wire + ABS Plastic |

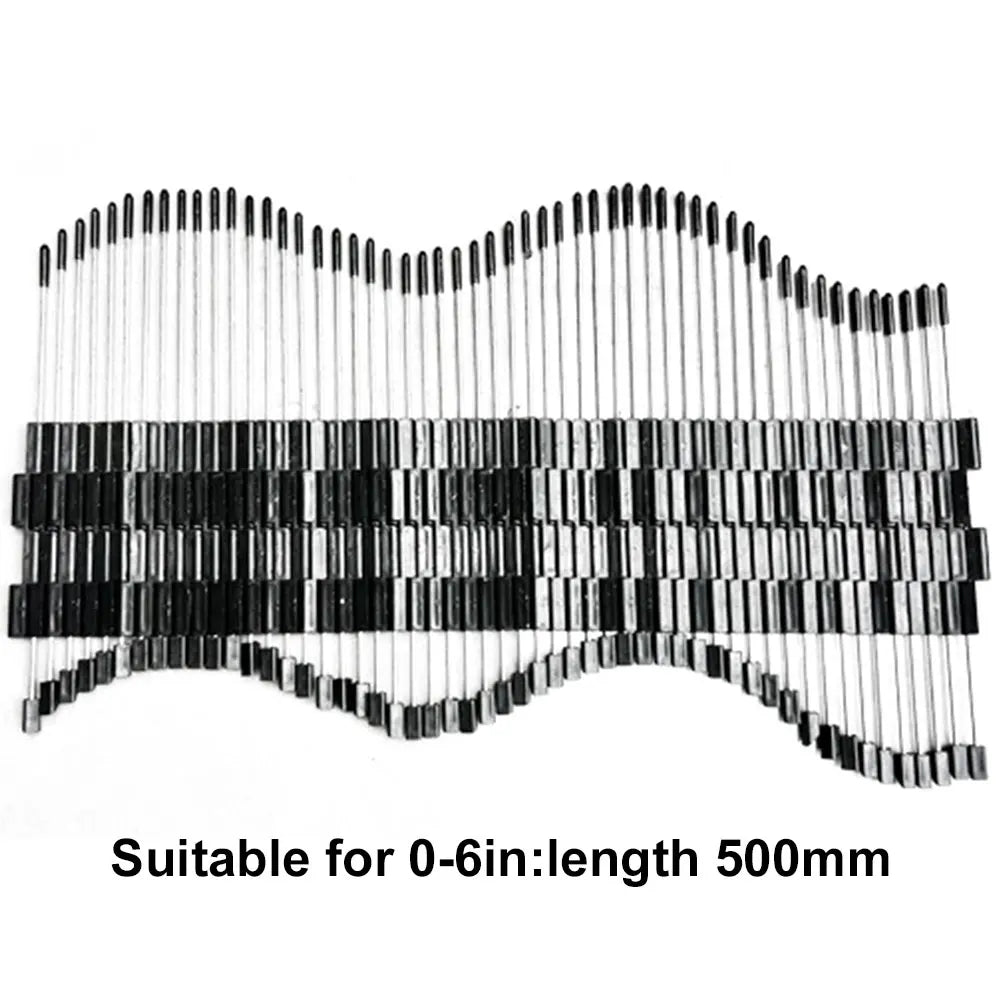

| Size Options | 0–3 in (Length: 280mm) / 0–6 in (Length: 500mm) |
| Rotation | 180° Free Rotation |
| Type | Hand Tool / Measuring Tool |
| Origin | Made in China |
What's in the Box
- 1 × Shape Contour Gauge Duplicator (your choice of 0–3 in or 0–6 in size)
Note: Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Please allow a 1–2 cm difference in measurements due to manual measuring.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Folding Hex Wrench Set – Portable Bike & Furniture Repair
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Repair Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What materials can the contour gauge duplicator be used on?
A: The contour gauge duplicator is designed for multi-surface use and works effectively on metal, plastic, wood, tile, pipes, and more. It's ideal for plumbing, woodworking, tiling, and general home improvement applications.
Q: What is the difference between the 0–3 in and 0–6 in sizes?
A: The 0–3 in version measures 280mm in length and is suited for smaller pipe profiles, while the 0–6 in version measures 500mm in length and accommodates larger pipe profiles. Choose the size that best matches the pipe or surface dimensions you're working with.
Q: Is this contour gauge easy to use for beginners?
A: Absolutely. Simply press the gauge firmly against the surface or pipe you need to measure, and it will instantly duplicate the contour shape. No special skills or training are required, making it a great addition to both professional and beginner toolkits.
Q: Can the gauge be rotated to measure different angles?
A: Yes. The tool features 180° free rotation, allowing you to adjust and measure from multiple angles, making it highly versatile for a wide variety of measuring and fitting tasks on any job site.
