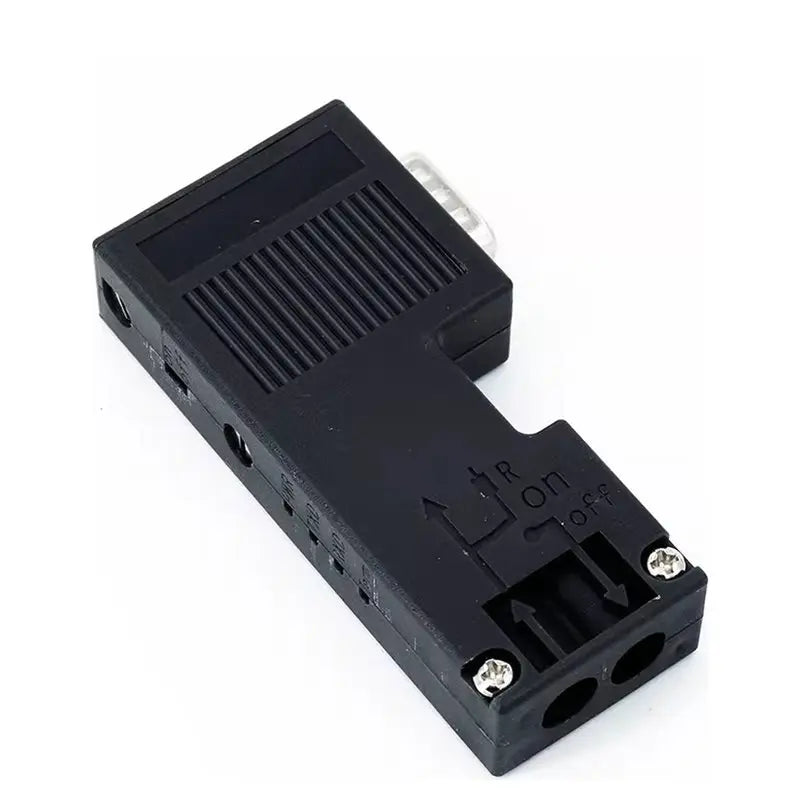

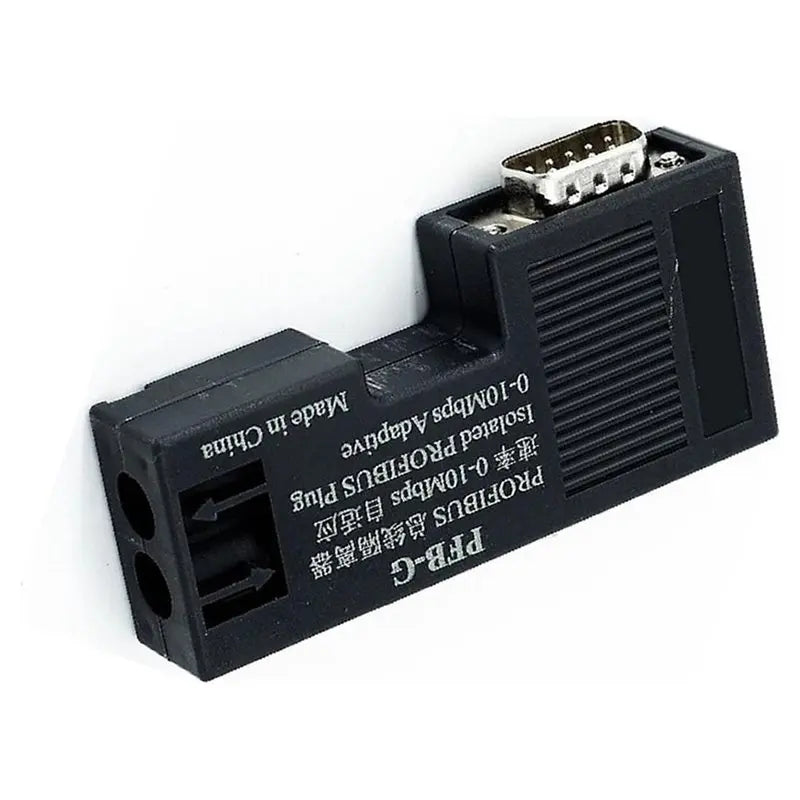

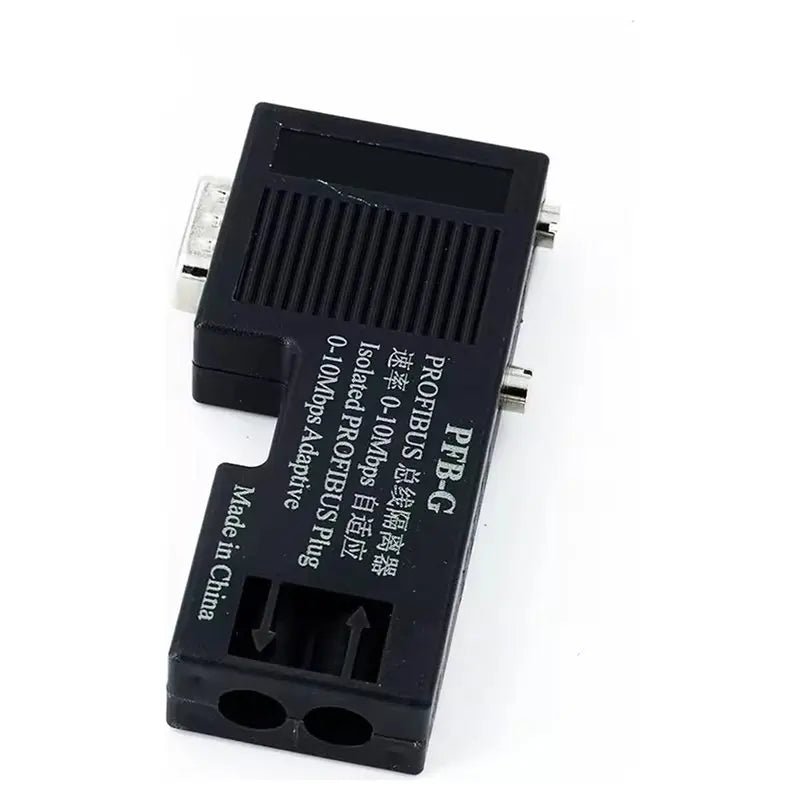

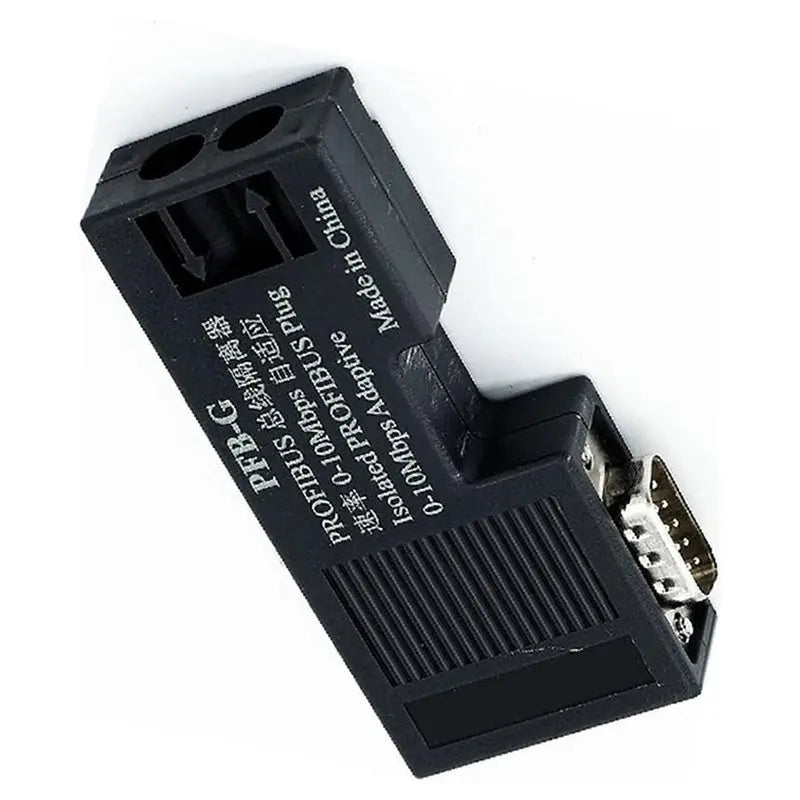

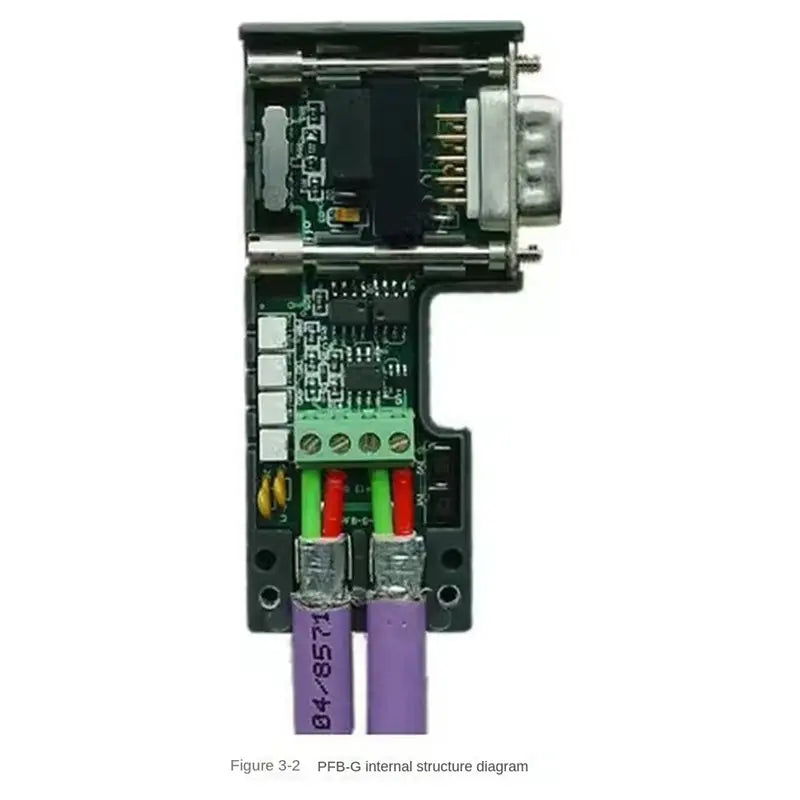

PROFIBUS Isolated BUS Connector (PFB-G) with LED Indicator & Surge Protection
The PFB-G PROFIBUS Isolated BUS Connector is engineered for demanding industrial environments where signal integrity and network reliability are critical. Featuring full galvanic isolation, built-in surge protection, and a real-time LED status indicator, this connector keeps your PROFIBUS-DP network running smoothly — even in high-electromagnetic-interference settings.
Made in Mainland China.
Key Features
- Full Galvanic Isolation: 1500 VDC isolation voltage — complete isolation between power-to-RS485 and RS485-to-RS485 circuits for maximum signal integrity.
- Flexible Power Supply: Automatically selects from 24 VDC ±10% (pin 7/pin 2) or 5 VDC ±10% (pin 6/pin 5) from either the PLC programming port or PROFIBUS-DP socket (DB9F female) — whichever is available.
- High-Speed Communication: Supports data rates from 0 to 10 Mbps with zero-delay auto-adaptation for seamless network integration.
- Internal Terminating & Bias Resistors: Switch-selectable built-in terminating and bias resistors eliminate the need for external components.
- LED Diagnostic Indicators: Four dedicated LEDs for PWR (Power), TXD (Transmit Data), RXD (Receive Data), and Term (Termination Resistor) for instant, at-a-glance status monitoring and faster troubleshooting.
- Lightning & Surge Protection: Isolated RS485 port features a repeatable surge protector — Ipp = 100A (10/700 µs, 4 KV), compliant with ITU-T K20/21 and VDE 0433 standards. Also provides ±15 KV ESD (electrostatic discharge) protection.
- Self-Recovery Overcurrent Protection: The isolated RS485 port withstands sustained overcurrent from continuous voltages up to 60 V without permanent damage.
- Scalable Network Architecture: Connect up to 32 PFB-G units on a single bus segment; expand to hundreds of stations by adding PROFIBUS repeaters or hubs.
- Rugged Construction: Plastic and metal housing designed for reliable long-term use in industrial control systems.
Technical Specifications
| Model | PFB-G |
| Isolation Voltage | 1500 VDC (Power↔RS485 & RS485↔RS485) |
| Power Supply | 24 VDC ±10% or 5 VDC ±10% (auto-select) |
| Communication Rate | 0–10 Mbps (zero-delay auto-adaptation) |
| Surge Protection | Ipp = 100A (10/700 µs, 4 KV); ITU-T K20/21, VDE 0433 |
| ESD Protection | ±15 KV |
| Max. Units Per Segment | 32 (expandable with repeaters/hubs) |
| LED Indicators | PWR, TXD, RXD, Term |
| EU LVD Voltage | Low Voltage: Below 50 VAC or 75 VDC |
| Material | Plastic + Metal |
| Package Contents | 1 × PFB-G Connector |
Related Products
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What isolation voltage does the PFB-G PROFIBUS Isolated BUS Connector provide?
A: The PFB-G provides 1500 VDC full galvanic isolation — both between the power supply and RS485, and between RS485-to-RS485 circuits — making it highly suitable for industrial environments with significant electromagnetic interference.
Q: What communication speeds does the PROFIBUS BUS Connector support?
A: The PFB-G supports communication rates from 0 to 10 Mbps with zero-delay auto-adaptation, automatically adjusting to your PROFIBUS network's operating speed without any manual configuration.
Q: How many PFB-G connectors can be connected on a single PROFIBUS bus segment?
A: Up to 32 PFB-G units can be connected on a single bus segment. By adding PROFIBUS repeaters or hubs, the network can be expanded to hundreds of stations to accommodate larger industrial installations.
Q: What type of surge and ESD protection does this connector offer?
A: The isolated RS485 port includes a repeatable lightning surge protector rated at Ipp = 100A (10/700 µs, 4 KV), compliant with ITU-T K20/21 and VDE 0433 standards. It also provides ±15 KV electrostatic discharge (ESD) protection for added durability.
