PWM DC Brush Motor Speed Controller – AC 220V Input / 10–210V DC Output
Take precise control of your brushed motor applications with this compact and reliable PWM Motor Speed Controller. Accepting a standard 220V AC input and delivering an adjustable DC output of 10–210V, this controller lets you dial in the exact speed you need via a simple potentiometer knob — no complex programming required. Ideal for workshops, DIY projects, machinery, fans, and other 220V brushed motor setups.
Key Features
- Wide Output Range: Adjustable DC output from 10V to 210V under load — versatile for a broad range of brushed motor applications
- High Current Capacity: Supports up to 20A peak load current and 10A continuous current for demanding tasks

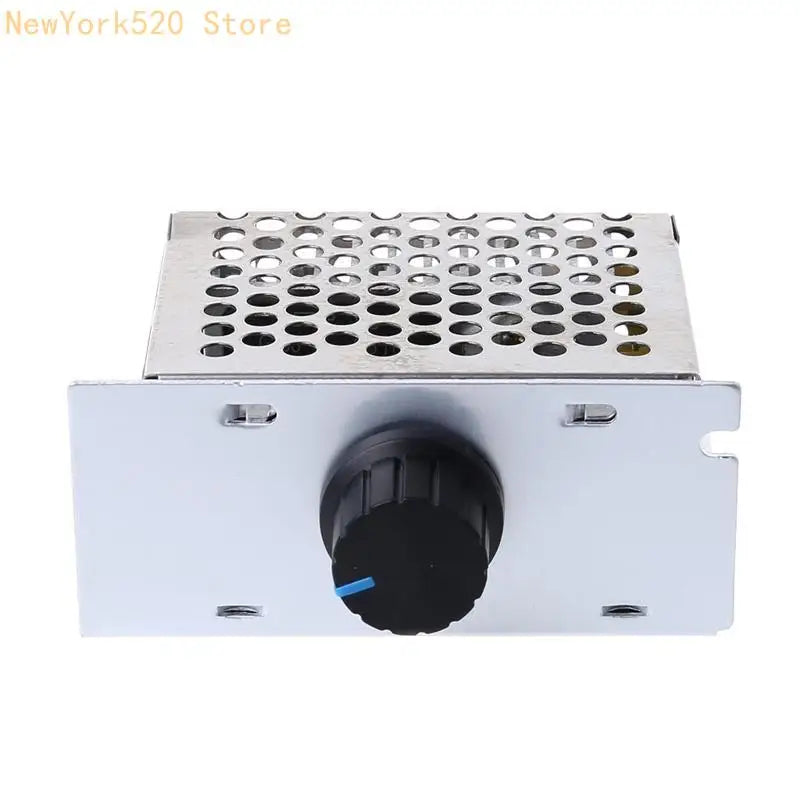

- Simple Potentiometer Control: Easy-to-use rotary knob for smooth, stepless speed regulation

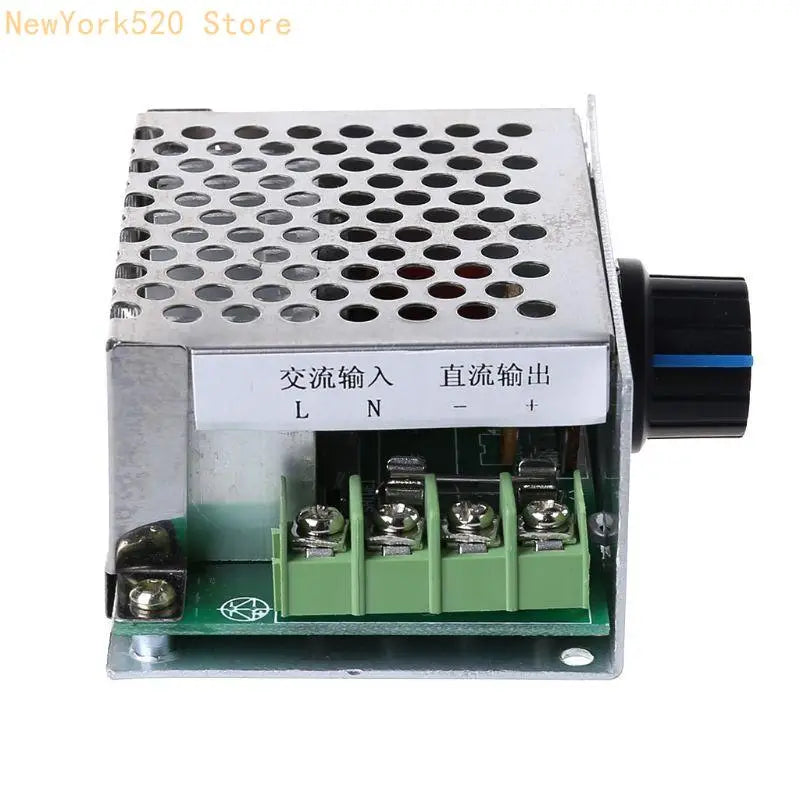

- Fence-Type Terminal Connection: Secure and reliable screw terminal block for straightforward wiring

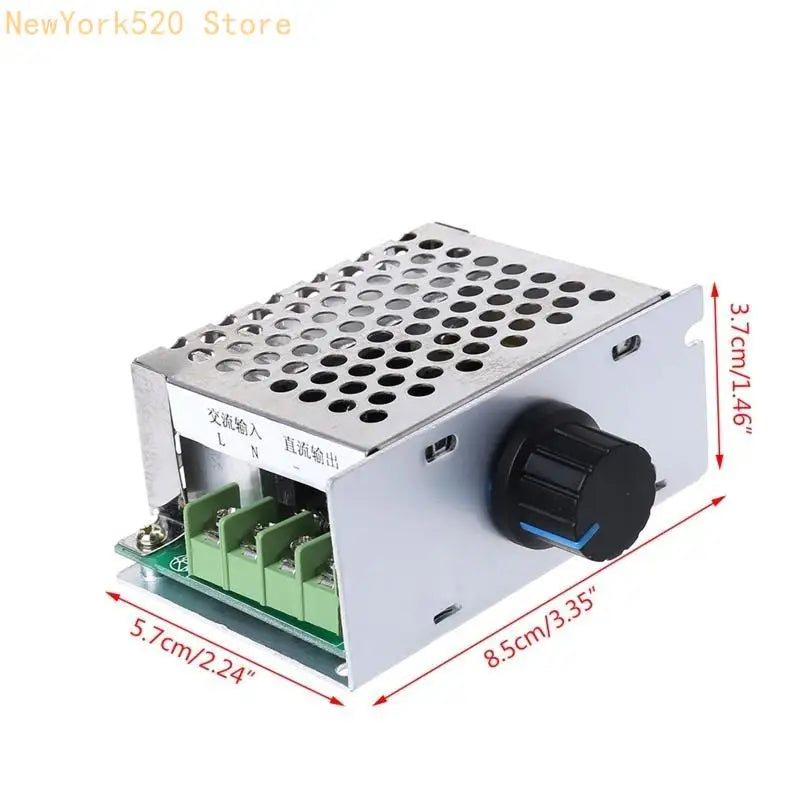

- Compact Design: Measures just 85 × 57 × 37 mm (3.35 × 2.24 × 1.46") — fits neatly into control panels and enclosures
- PWM Technology: Pulse Width Modulation ensures efficient power delivery with minimal energy waste
- Made in Mainland China
Technical Specifications
| Input Voltage | AC 220V |
| Output Voltage | DC 10–210V (under load) |
| Peak Load Current | 20A |
| Continuous Current | 10A |
| Regulation Method | Potentiometer |
| Connection Mode | Fence-Type Terminal Block |
| Dimensions | 85 × 57 × 37 mm / 3.35 × 2.24 × 1.46" |
| Compatible Motor Type | 220V DC Brushed Motor only |
What's in the Box
- 1 × PWM DC Brush Motor Speed Controller
Note: Please allow 1–3 mm tolerance due to manual measurement. Screen color calibration may cause slight variations in appearance from product images.
