Refrigerator Door Light Push Button Switch HC-056K Freezer
Refrigerator Door Light Push Button Switch HC-056K Freezer

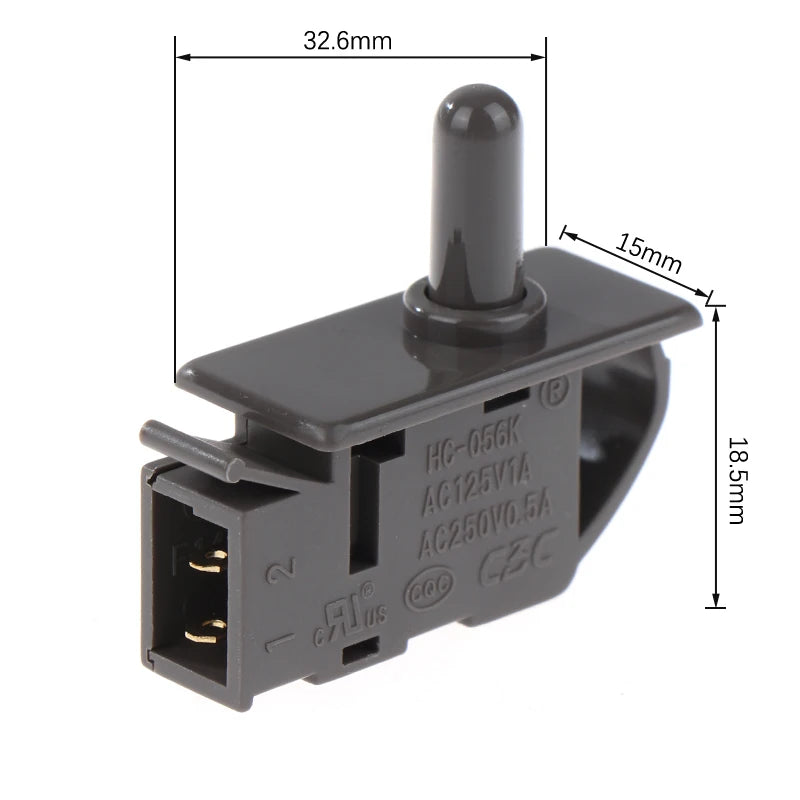

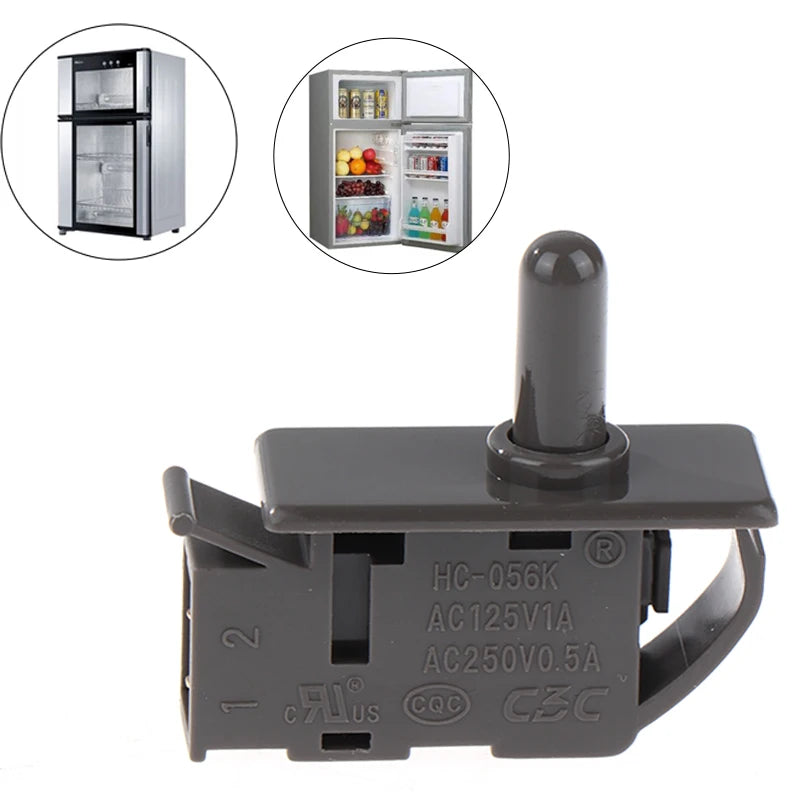

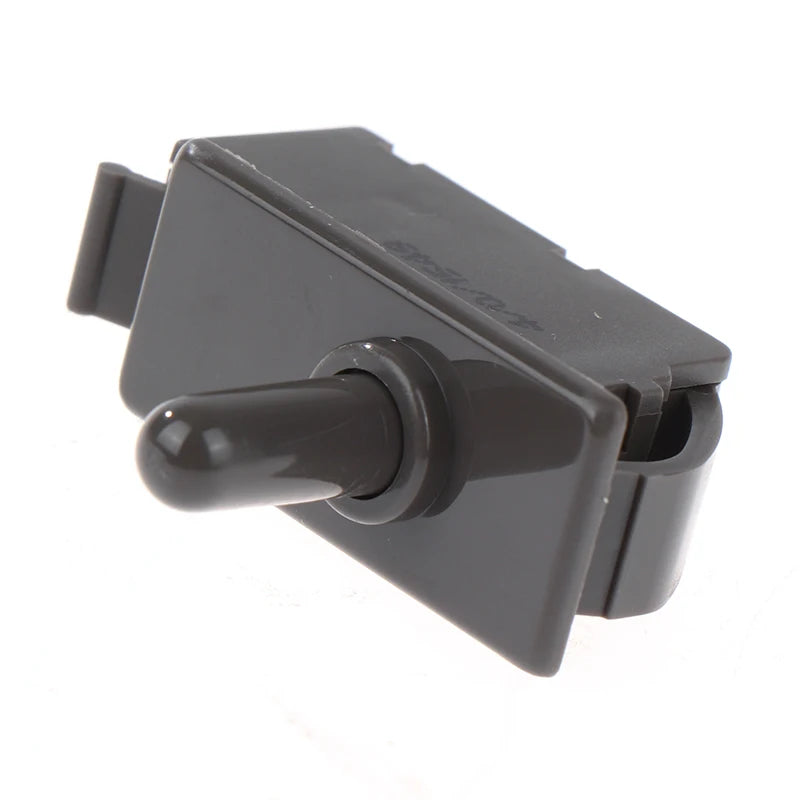

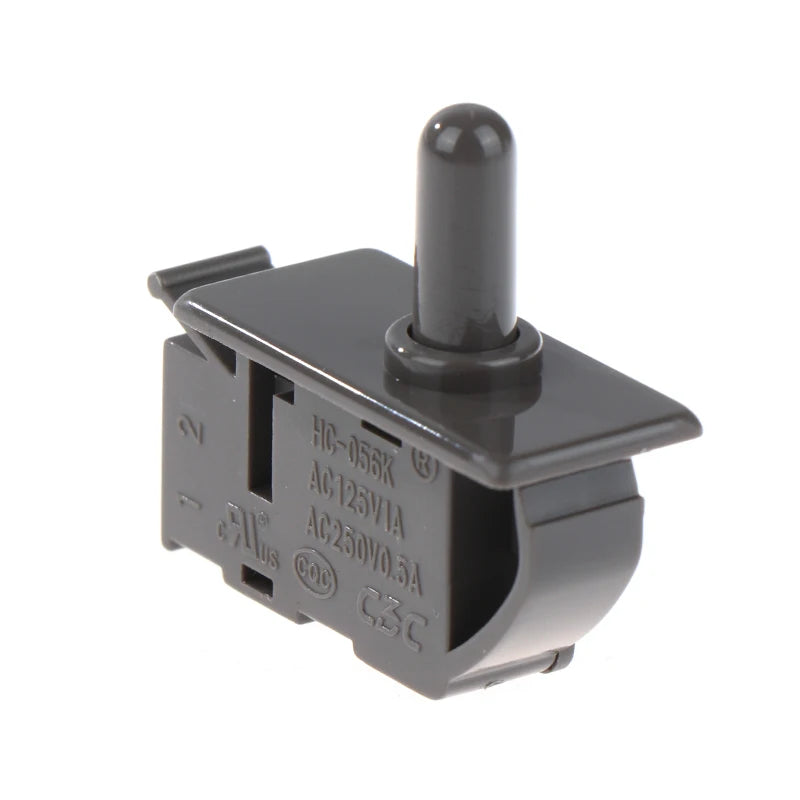

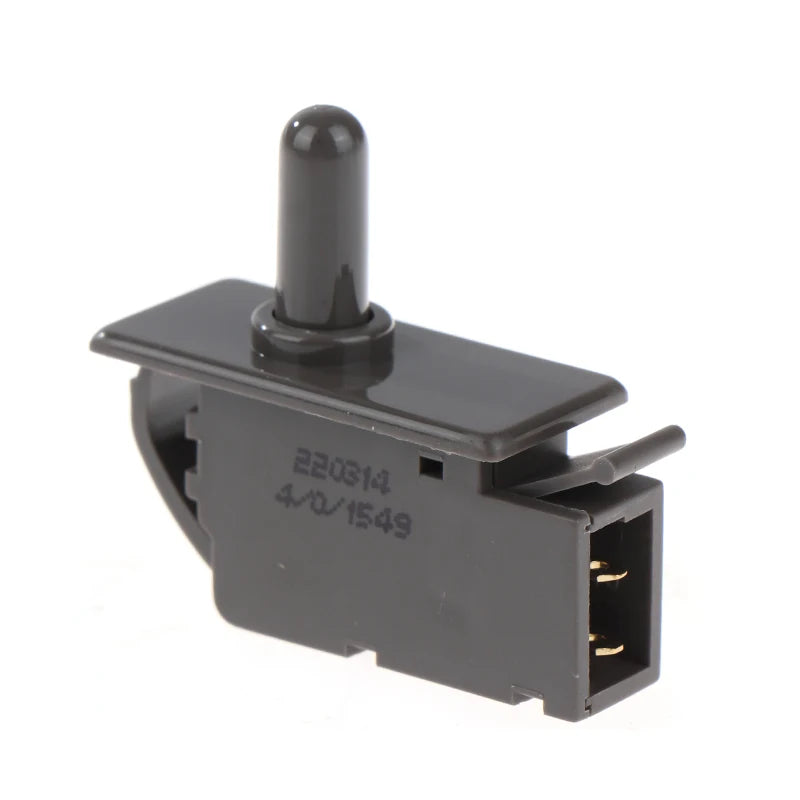

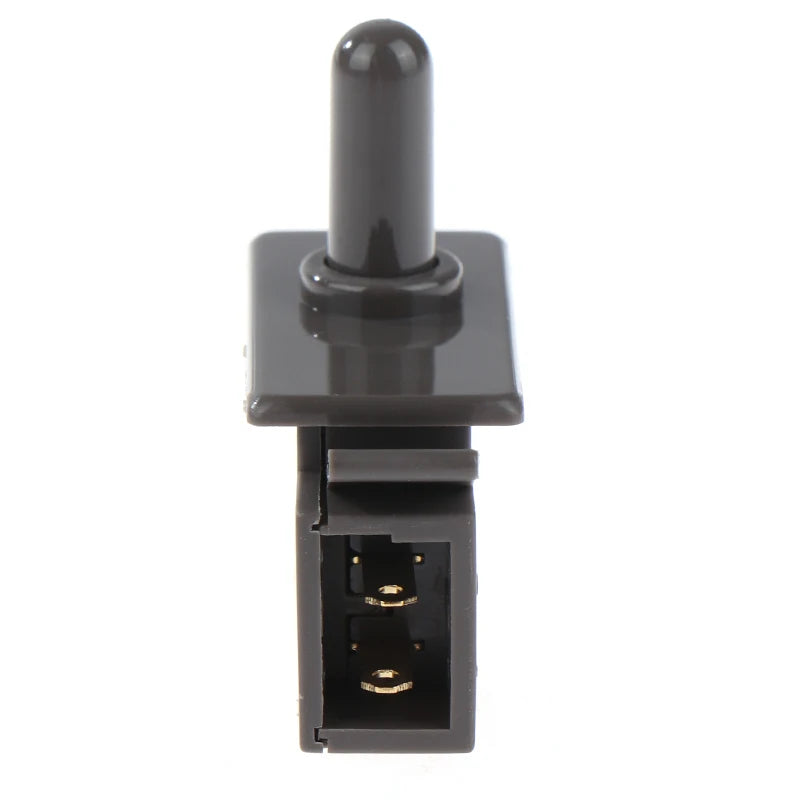

Refrigerator Door Light Control Push Button Switch (HC-056K)
Keep your refrigerator or freezer interior light working perfectly with this high-quality normally-closing push button switch. Designed as a direct replacement for door light control switches, this compact plastic switch reliably cuts the interior light when the door closes and restores it when opened — just like the original. Compatible with a wide range of refrigerator and freezer models, it's an easy, cost-effective fix for a faulty or worn-out door switch.
Made in Mainland China.
Key Specifications
- Model: HC-056K
- Type: Normally-closing push button switch
- Material: Durable plastic construction
- Rated Voltage: 250V / 125V
- Rated Current: 0.5A / 1A
- Contact Resistance: 20 Ω
- Insulation Resistance: 100 MΩ
- Withstand Voltage: 1500V AC / 1 min
- Service Life: 100,000 cycles
- Package Includes: 1 × Push Button Switch
Why Choose This Switch?
- ✅ Long Service Life – Rated for up to 100,000 operating cycles for lasting reliability
- ✅ High Insulation Resistance – 100 MΩ insulation resistance for safe, stable operation
- ✅ Voltage Withstand Tested – Passes 1500V AC dielectric test for electrical safety
- ✅ Universal Fit – Suitable for most standard refrigerator and freezer door light circuits
- ✅ Easy Replacement – Straightforward swap-out installation with no special tools required
- ✅ New & High Quality – Brand new component, not refurbished
What's in the Box?
- 1 × HC-056K Normally-Closing Push Button Door Switch
Important Notes
- Due to manual measurement, please allow a tolerance of 1–3 mm.
- Product colour may vary slightly from images due to differences in monitor calibration.
Related Products You May Like
- Adjustable Fridge Divider Clips – Refrigerator Side Shelf Separator & Space Saving Organizer
- 10-in-1 Multi-Functional Bone Wrench – Portable Repair Hand Tool
- 3-in-1 Precision Screwdriver Keychain – Portable Mini Repair Tool
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What does a normally-closing refrigerator door push button switch do?
A: A normally-closing push button switch completes the circuit when it is not pressed (door open), turning the interior light on. When the refrigerator or freezer door is closed, it presses the button, breaking the circuit and switching the light off. Replacing a faulty switch restores normal light operation.
Q: Is the HC-056K push button switch compatible with my refrigerator?
A: The HC-056K is a universal-style push button switch designed to fit a wide range of refrigerator and freezer models that use a standard door light control switch. Please compare the dimensions and electrical ratings (250V/0.5A or 125V/1A) with your existing switch before purchasing to ensure compatibility.
Q: How difficult is it to install this replacement door switch?
A: Installation is straightforward. In most cases, you simply unplug the old switch, disconnect the wiring terminals, and connect the new switch in its place. No specialist tools are required. Always disconnect your appliance from the power supply before carrying out any repair work.
