Refrigerator Door Light Push Button Switch HC-056K Spare Part
Refrigerator Door Light Push Button Switch HC-056K Spare Part

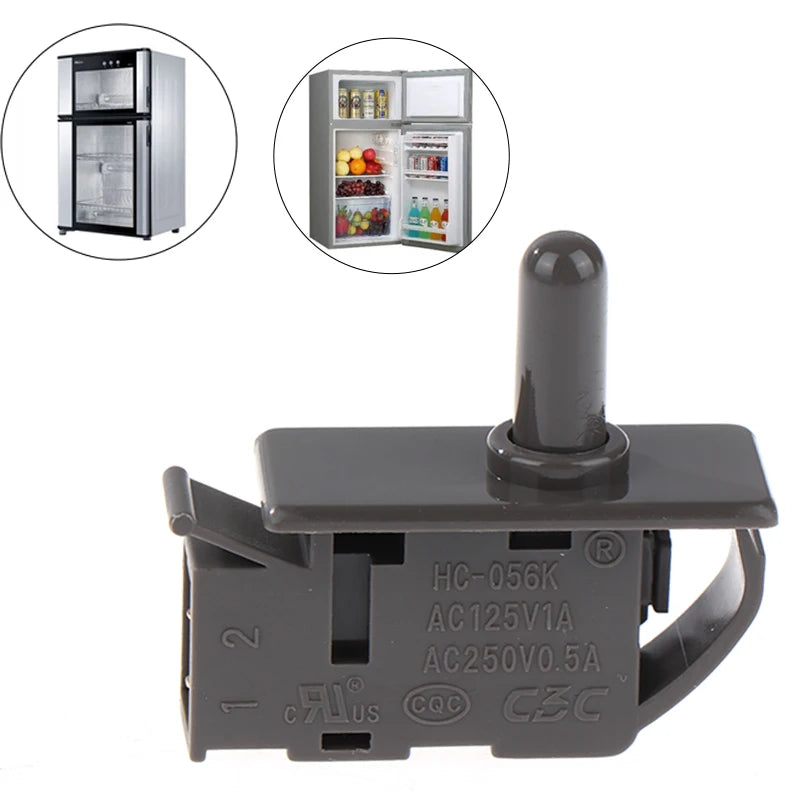

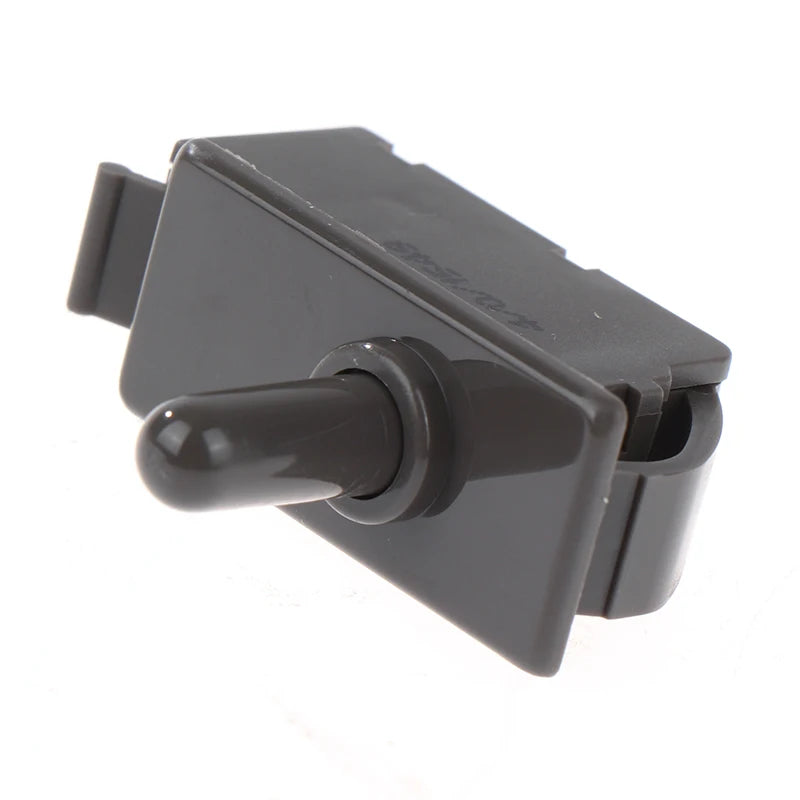

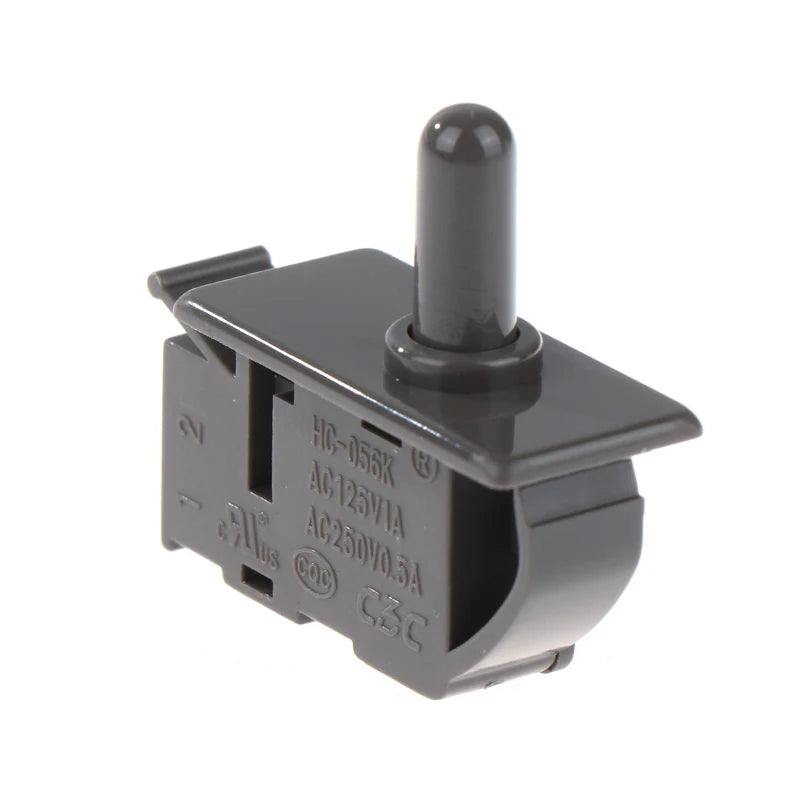

Refrigerator Door Light Control Push Button Switch (HC-056K)
Keep your refrigerator or freezer interior light working exactly as it should with this high-quality normally-closing push button switch. Designed as a direct replacement spare part, this switch automatically controls the interior light — turning it on when the door opens and off when the door closes. Compatible with a wide range of refrigerator and freezer door applications, it's a simple, cost-effective fix for a faulty or worn-out door light switch.
Key Specifications
- Model: HC-056K
- Type: Normally-closing push button switch
- Rated Voltage: 250V / 125V
- Rated Current: 0.5A / 1A
- Contact Resistance: 20 Ω
- Insulation Resistance: 100 MΩ
- Withstand Voltage: 1,500V AC / 1 min
- Service Life: 100,000 cycles
- Package Includes: 1 × Push Button Switch
Why Choose This Switch?
- ✅ New & High Quality — built to last with a 100,000-cycle service life
- ✅ Reliable Electrical Performance — excellent insulation and contact resistance for safe, consistent operation
- ✅ Easy Replacement — straightforward drop-in installation for most standard refrigerator and freezer doors
- ✅ Wide Voltage Compatibility — rated for both 125V and 250V systems
- ✅ Cost-Effective Repair — restore your appliance's door light function without replacing the entire unit
Notes
- Due to manual measurement, please allow a tolerance of 1–3 mm.
- Actual product color may vary slightly from images due to different monitor settings.
Made in Mainland China.
Related Products You May Like
- Adjustable Fridge Divider Clips – Refrigerator Shelf Separator & Space Saving Organizer
- 100ml Glass Oil Spray Bottle – Press-Type Kitchen Mister
- Adjustable Faucet Hanging Sink Sponge Holder – Kitchen Storage Organizer
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What type of switch is the HC-056K and how does it work in a refrigerator door?
A: The HC-056K is a normally-closing (NC) push button switch. In its resting state (door open), the circuit is closed and the interior light turns on. When the refrigerator or freezer door is pressed shut, the button is depressed, opening the circuit and switching the light off — exactly how a standard fridge door light switch operates.
Q: Is this switch compatible with my refrigerator or freezer model?
A: This push button door switch is designed as a universal replacement spare part suitable for a wide range of refrigerator and freezer models. It supports both 125V and 250V systems. We recommend comparing the dimensions and electrical ratings (rated voltage, current, and contact type) with your existing switch before purchasing to ensure compatibility.
Q: How difficult is it to install this refrigerator door light switch?
A: Installation is generally straightforward. The switch is a direct replacement — simply remove the faulty switch from the door frame and snap or screw the new HC-056K into place, then reconnect the wiring. Basic DIY skills are sufficient for most standard refrigerator models. Always unplug the appliance before performing any electrical repairs.
