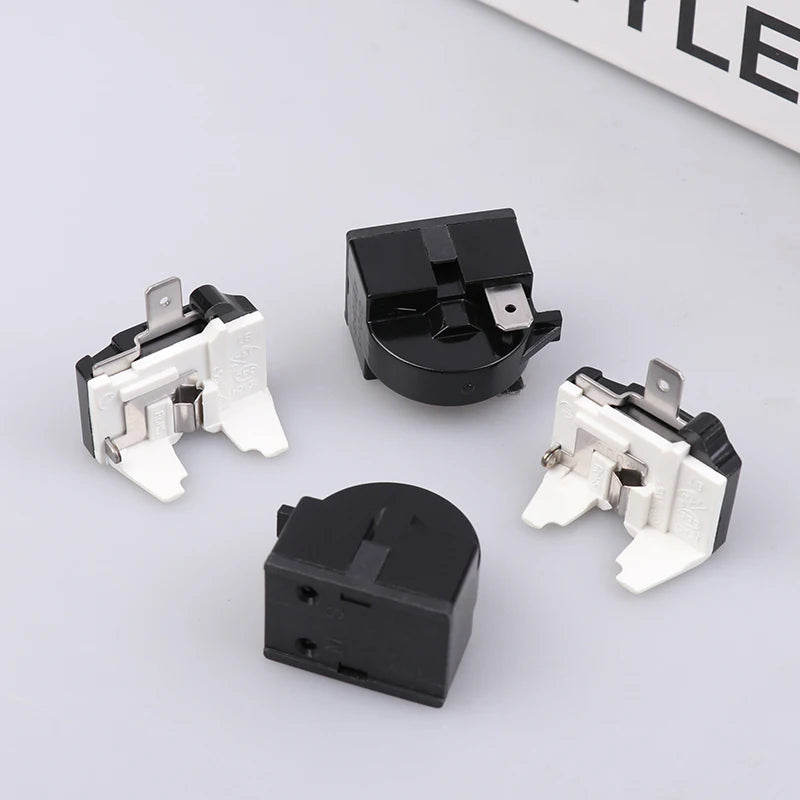

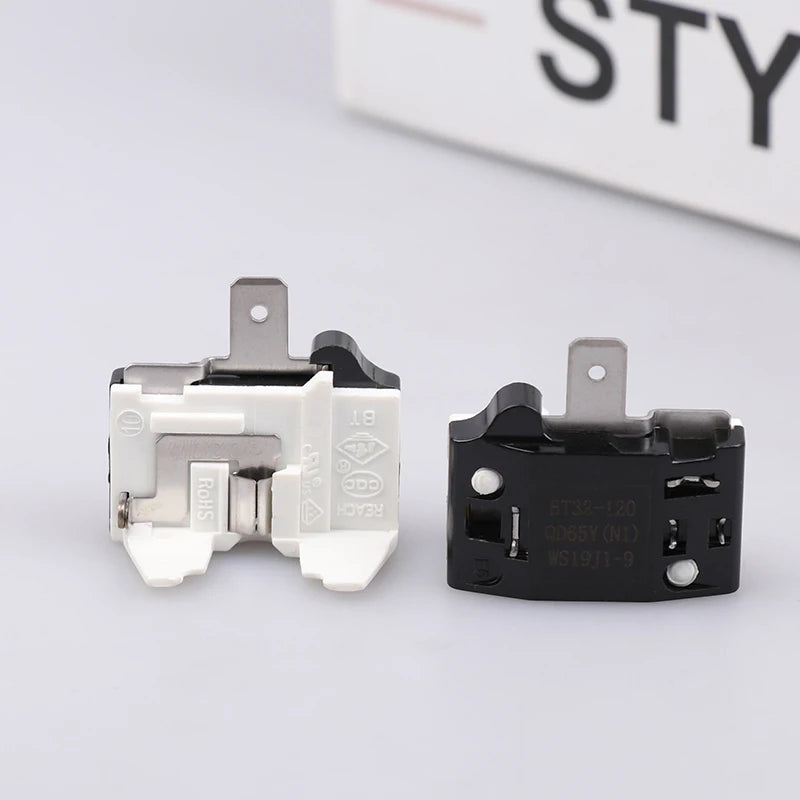

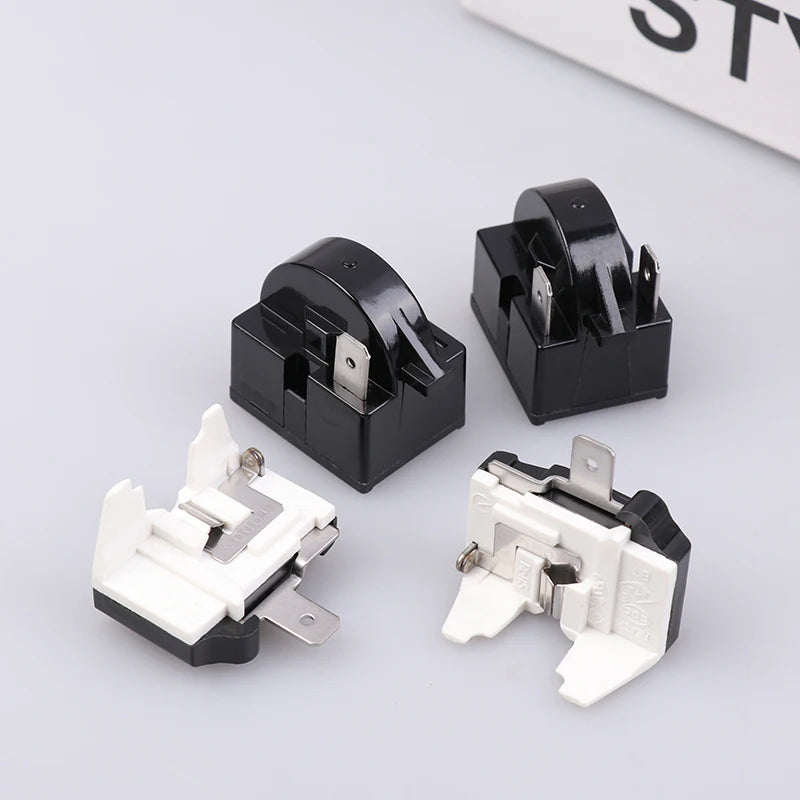

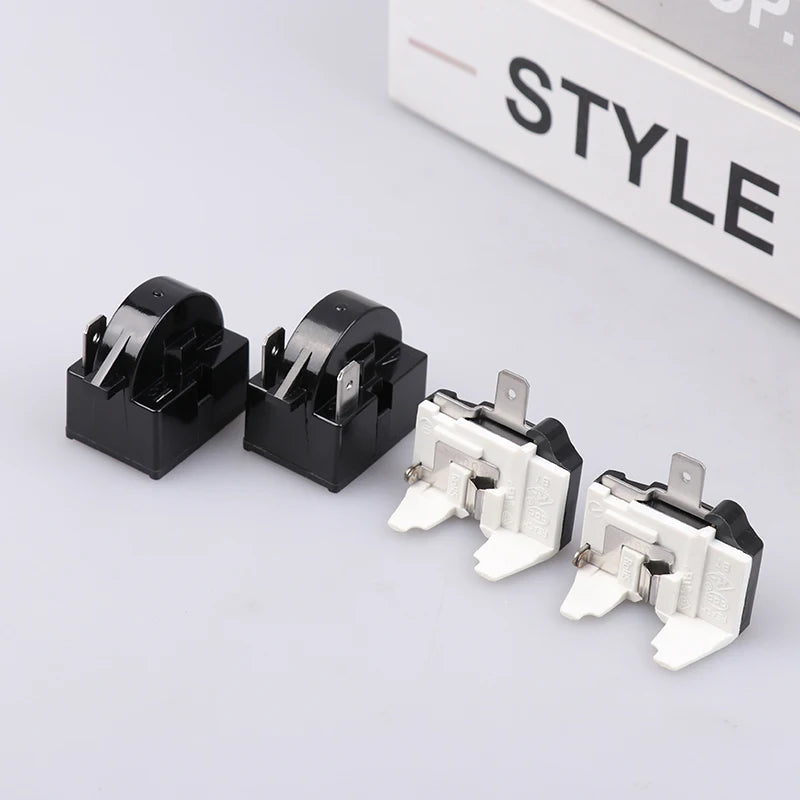

PTC Start Relay & Overload Protector 1-Pin 15 Ohm for Mini Fridge

Refrigerator PTC Start Relay & Overload Protector – 1-Pin, 15 Ohm, 1/6HP

Keep your mini fridge or cooler running smoothly with this reliable PTC Start Relay and Overload Protector combo. Engineered for compatibility with a wide range of mini refrigerators and coolers using R600A/125W compressors, this compact replacement kit is an essential spare part for any appliance repair toolkit.

Why This Relay & Protector Combo?

• Dual-function kit: Includes both a starting relay and an overload protector in one package — everything you need for a complete compressor repair.
• Built-in compressor protection: The overload protector monitors current draw and automatically shuts down the compressor if excessive current is detected, preventing motor burnout.
• Wide compatibility: Suitable for various brands of mini refrigerators, coolers, and air conditioning compressors using R600A/125W compressors.
• Easy installation: 1-pin design connects directly to the compressor — no complex wiring required.
• Quality construction: Made from durable plastic and metal for long-lasting, reliable performance.
• Compact & lightweight: Small form factor fits neatly within tight appliance spaces.

Specifications

Package Contents

• 1× Refrigerator PTC Starter Relay
• 1× Overload Protector

Related Products You May Find Useful

Looking for other handy tools and kitchen accessories? Check out our Adjustable Fridge Divider Clips Refrigerator Side Shelf Separator to maximize fridge organization, or browse our 10-in-1 Multi-Functional Wrench & Hand Repair Tool for your next DIY project.

Important Notes

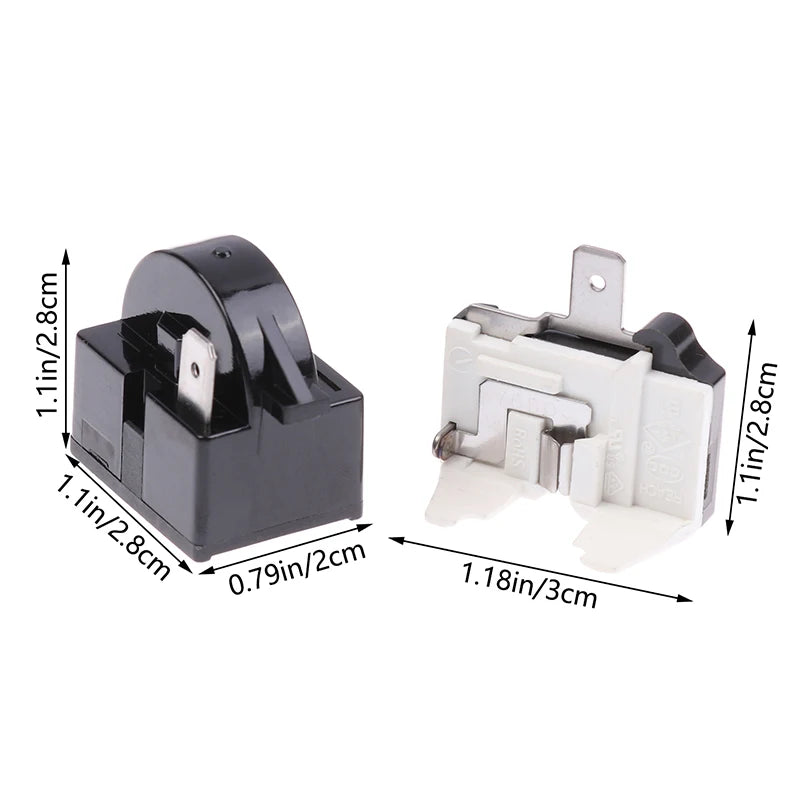

• Please refer to the product description for size details, as photos may not reflect actual dimensions.
• Minor measurement differences may occur due to manual measuring.
• Color may vary slightly from screen to screen due to monitor settings.

Learn more: OSHA guidance on hand and power tools

Frequently Asked Questions

Q: What type of refrigerator compressor is this PTC start relay compatible with?

A: This PTC start relay and overload protector is designed for R600A / 125W mini refrigerator compressors and is broadly compatible with various brands of mini fridges, coolers, and certain air conditioning compressors. It features a 1-pin, 15 Ohm configuration. We recommend verifying your compressor's specifications before ordering to ensure a proper fit.

Q: What does the overload protector actually do?

A: The overload protector is connected directly to the compressor motor. It continuously monitors the current drawn by the motor. If the current exceeds safe operating levels — such as during a voltage spike or mechanical fault — it automatically cuts power to the compressor, preventing motor damage and extending the lifespan of your appliance.

Q: Is this replacement part easy to install without professional help?

A: Yes! The 1-pin design makes installation straightforward. Simply unplug the old relay and protector from the compressor terminals and plug in the new ones. No soldering or complex wiring is required, making it a beginner-friendly DIY refrigerator repair.

Q: Does this kit include both the relay and the overload protector?

A: Yes, each package includes one PTC starter relay and one overload protector, giving you everything needed for a full compressor starting circuit replacement in one purchase.
