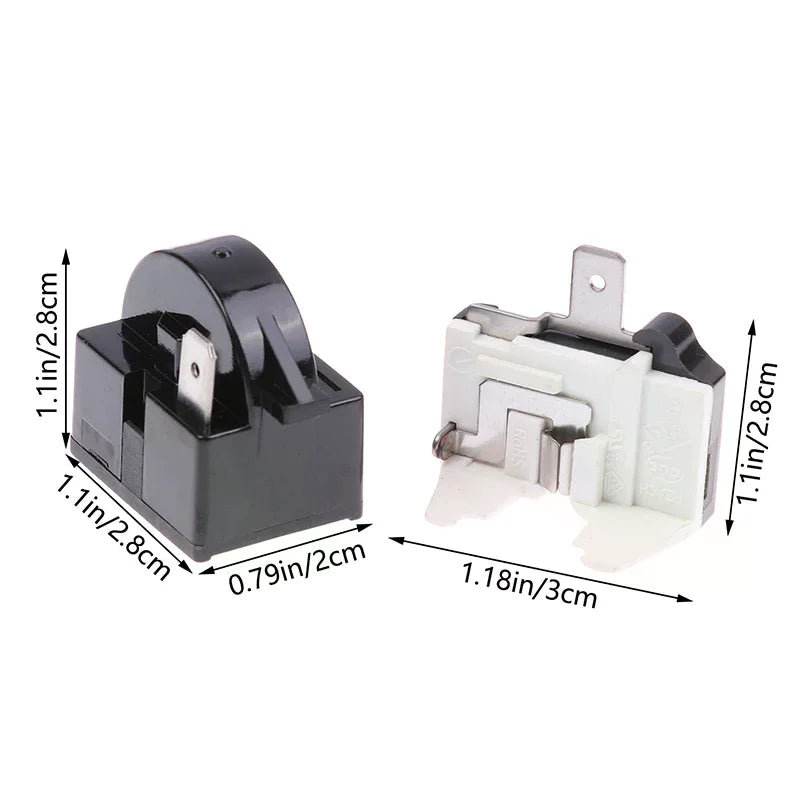

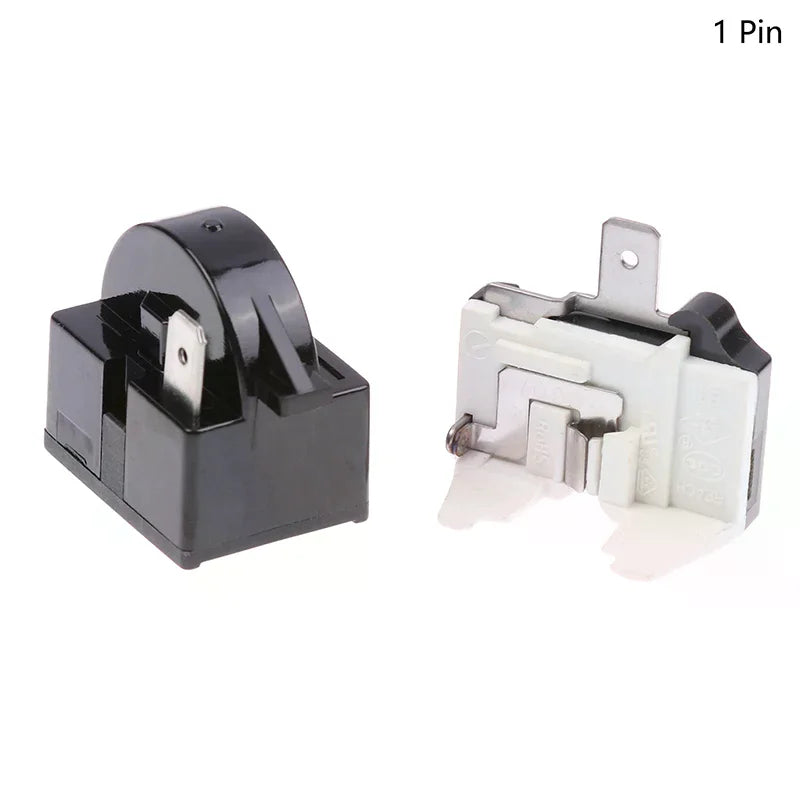

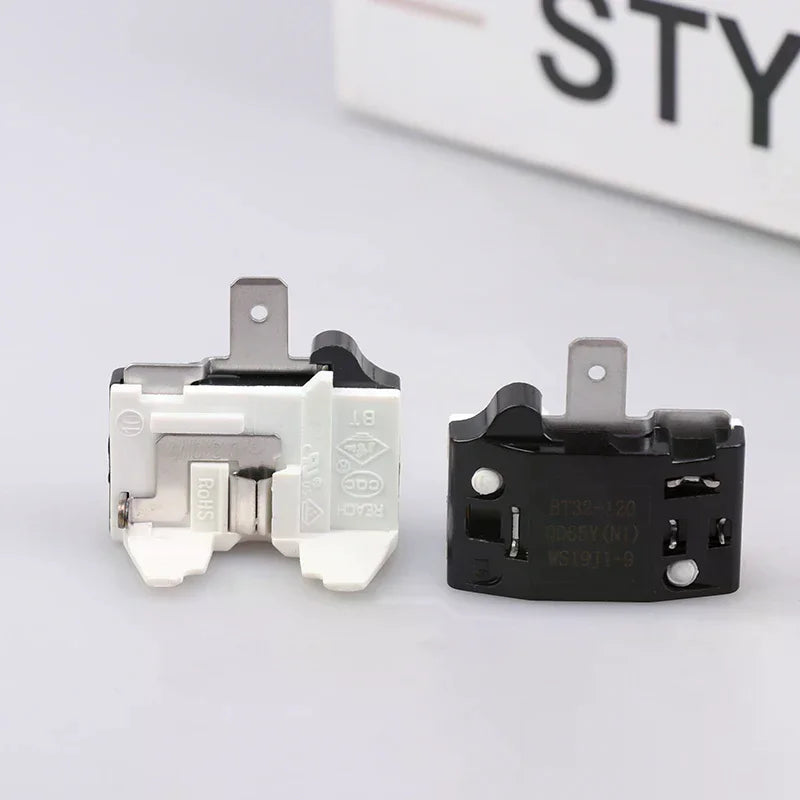

Refrigerator PTC Start Relay & Overload Protector – 1-Pin, 15 Ohm, 1/6HP
Keep your mini refrigerator or cooler running smoothly with this high-quality PTC Start Relay and Overload Protector combo. Designed as a direct replacement for 1-pin, 15-ohm compressor starters, this compact unit is built from durable plastic and metal for long-lasting, reliable performance. Compatible with a wide range of mini refrigerators, coolers, and air conditioning compressors using R600A/125W compressors.
Made in Mainland China.
Why Choose This Start Relay?
- Reliable Compressor Start: The PTC start relay energizes the compressor motor at startup and automatically disengages once full speed is reached, ensuring efficient and consistent operation.
- Built-In Overload Protection: The integrated 1/6HP overload protector monitors current draw and automatically shuts down the compressor if it exceeds safe levels, safeguarding your appliance from damage.
- Broad Compatibility: Suitable for various brands of mini refrigerators, portable coolers, and compact air conditioning compressors — a versatile replacement part for home or workshop use.
- Easy Installation: Simple 1-pin design allows for quick plug-in replacement with no special tools required.
- Compact & Lightweight: Small form factor fits neatly onto your compressor without adding bulk.
Specifications
| Material | Plastic + Metal |
| Resistance | 15 Ohms |
| Pin Configuration | 1-Pin (2-Pin also available) |
| Model | 1-Pin 15 Ohm + 1/6HP |
| Overload Protector Rating | 1/6HP (R600A / 125W Compressor) |
| Colors Available | Black, White |
What's Included
- 1× Refrigerator PTC Start Relay
- 1× Overload Protector (1/6HP)
Related Products You May Like
Looking for more useful home and kitchen tools? Check out these popular picks:
- Adjustable Fridge Divider Clips – Refrigerator Shelf Separator & Space-Saving Kitchen Organizer
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Portable Folding Hex Wrench Set – Maintenance Hand Tools
Learn more: OSHA guidance on hand and power tools
Frequently Asked Questions
Q: What refrigerators is this PTC start relay compatible with?
A: This 1-pin, 15-ohm PTC start relay and overload protector is compatible with a wide range of mini refrigerators, portable coolers, and compact appliances that use R600A or 125W compressors. Always verify your compressor's pin configuration and resistance rating before purchasing.
Q: How does the overload protector work?
A: The overload protector is connected directly to the compressor motor. It continuously monitors the electrical current being drawn. If the current exceeds a safe threshold — such as during a motor fault or blockage — it automatically shuts the compressor down to prevent damage, then resets once conditions return to normal.
Q: Is this start relay easy to install yourself?
A: Yes. The 1-pin design makes installation straightforward — simply unplug the old relay from the compressor terminal and plug in the new one. No special tools are required. If you are unsure about working with electrical appliance components, consulting a qualified technician is always recommended.
Q: What is the difference between the 1-pin and 2-pin versions?
A: The pin count refers to the number of electrical connection points on the relay that connect to your compressor. You must match the pin count to your existing compressor relay socket. Check your current relay or appliance manual to confirm which configuration you need before ordering.
