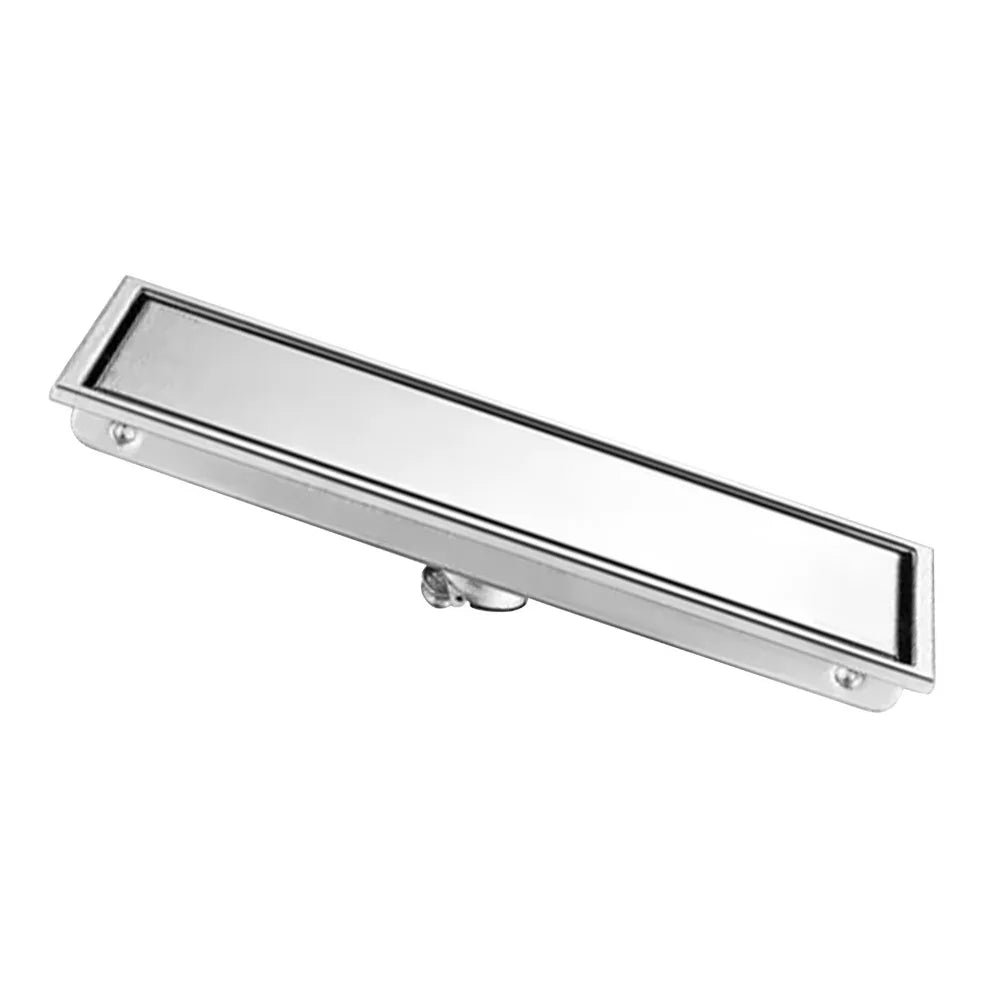

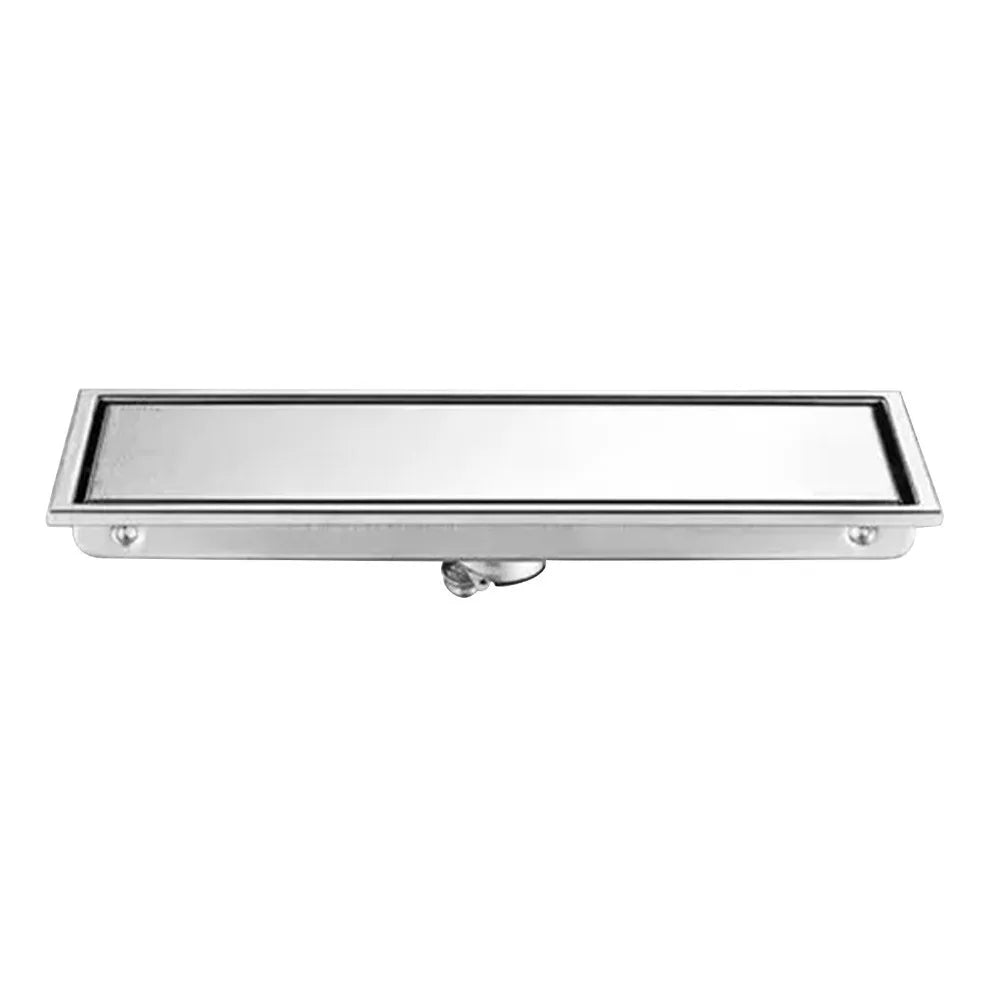

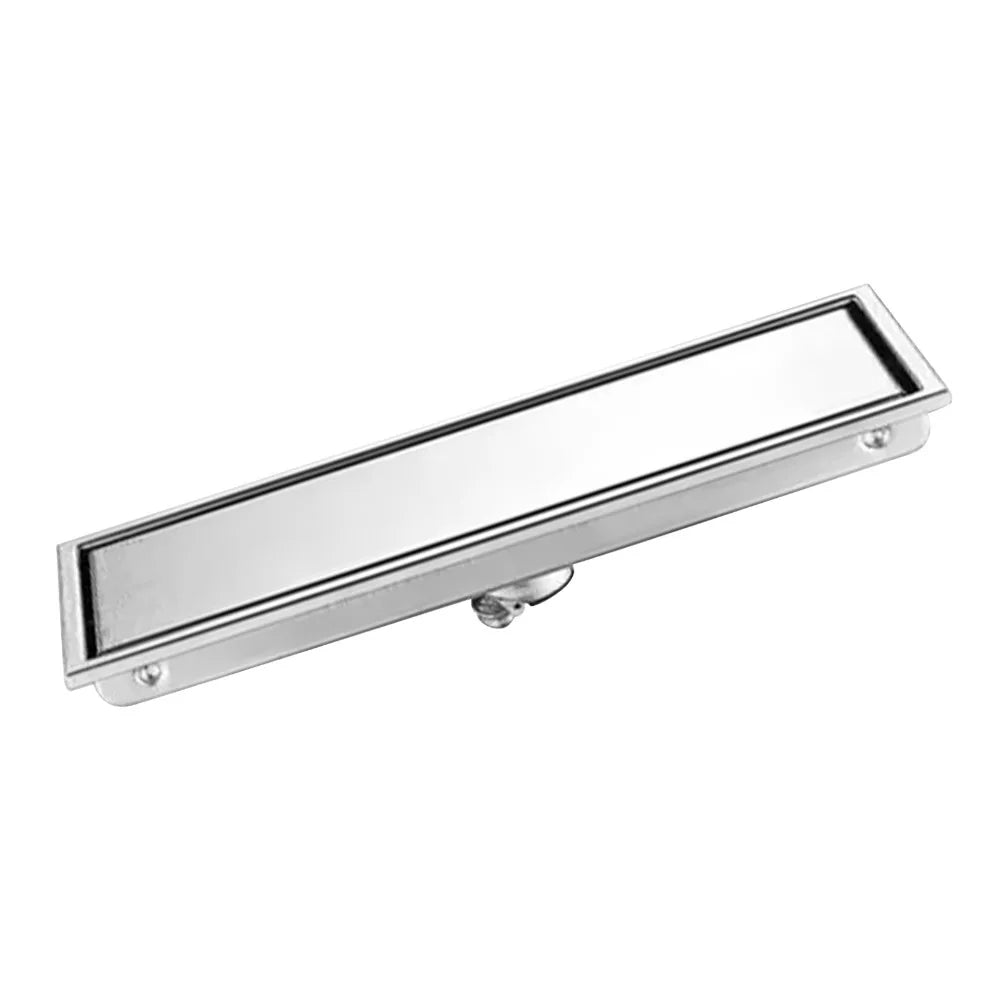

SUS304 Stainless Steel Rectangular Linear Floor Drain with Tile Insert Grille

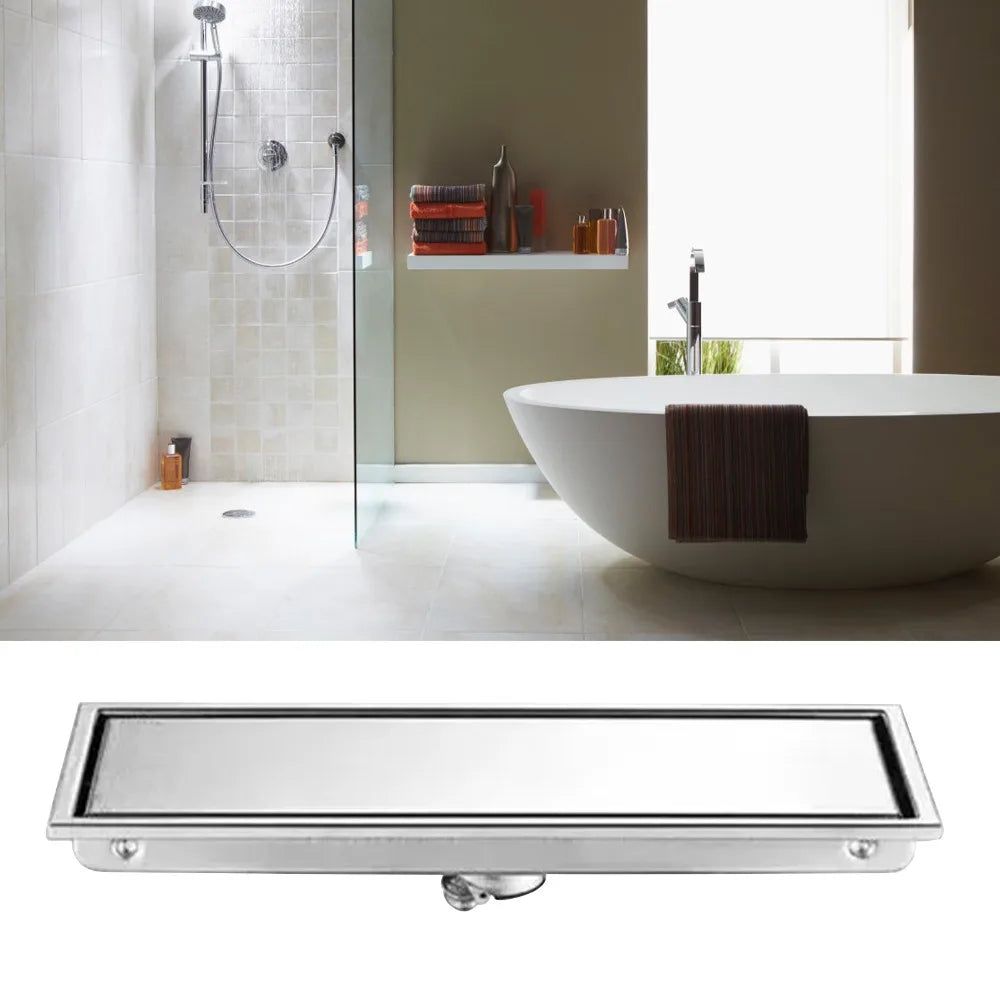

Upgrade your bathroom, shower, kitchen, or laundry room with this sleek SUS304 stainless steel linear floor drain. Designed with a low-profile rectangular form and a hidden tile-insert grille, it blends seamlessly with any flooring style while delivering fast, efficient gravity-flush drainage. Made in Mainland China.
Why You'll Love It
- Durable SUS304 Stainless Steel Body: Precision-ground with smooth edge treatment for a neat, polished finish that is comfortable underfoot and built for long-term use in wet areas.
- Wide-Area Drainage: The elongated rectangular design collects water across a broader surface than a standard round drain, moving water away quickly and keeping floors clean and dry after daily use.
- Two-Layer Filter System: A double-layer filter combined with a U-shaped water-storage trap helps minimise backflow and keeps unpleasant odours contained, supporting smoother drainage in busy households.
- Easy-Lift Cover for Simple Cleaning: The removable grille cover lifts out effortlessly so you can quickly access the inner chamber for routine maintenance — no tools required.

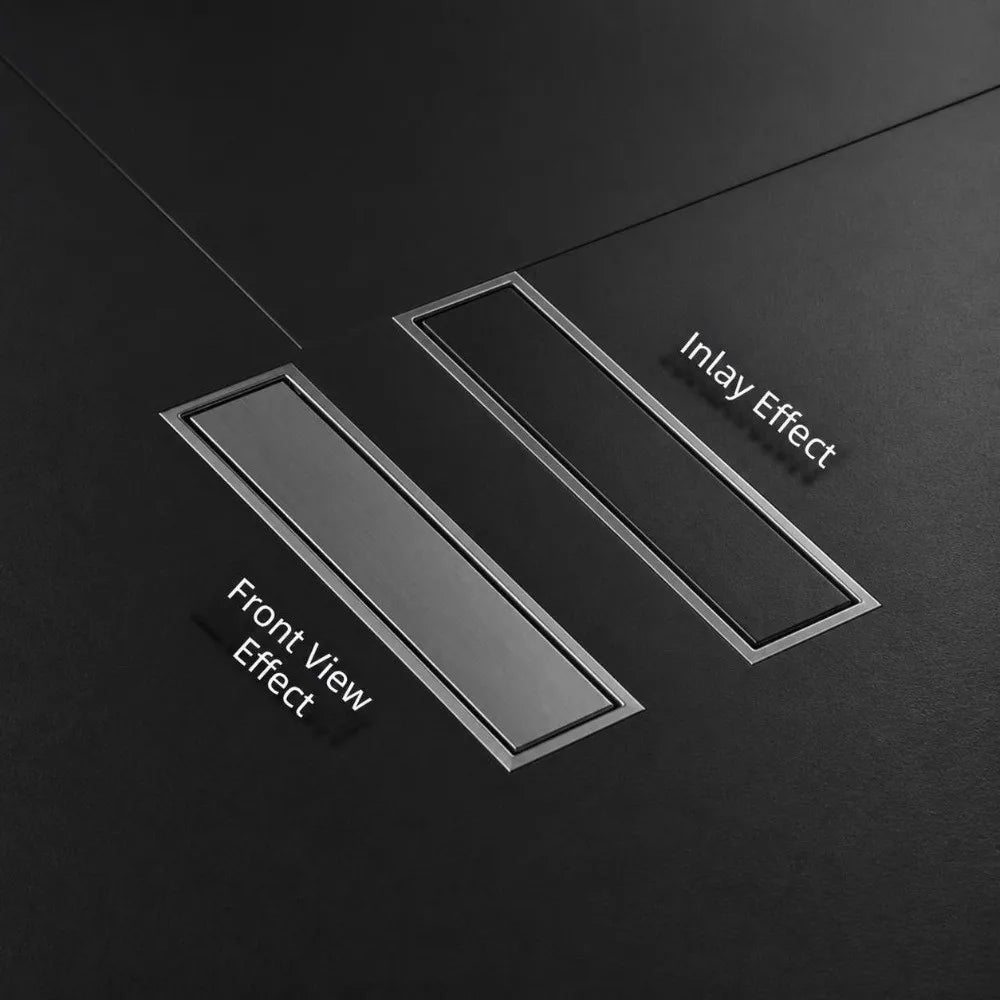

- Low-Profile Tile Insert Look: The recessed grille panel sits flush with your floor tiles for a minimal, contemporary appearance that suits kitchens, bathrooms, and shower spaces alike.

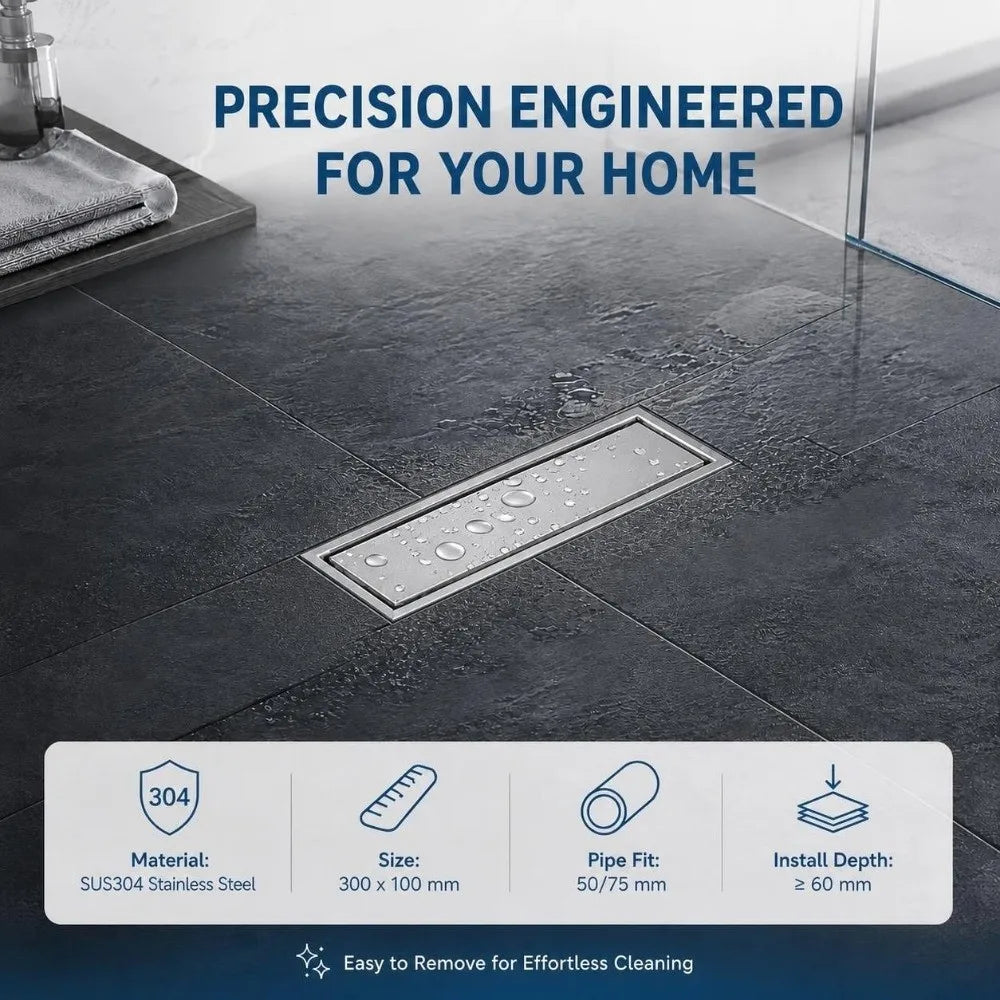

Specifications
| Item Type | Linear Floor Drain |
| Material | SUS304 Stainless Steel |
| Surface Treatment | Brushed Finish |
| Color | Silver / White Grille |

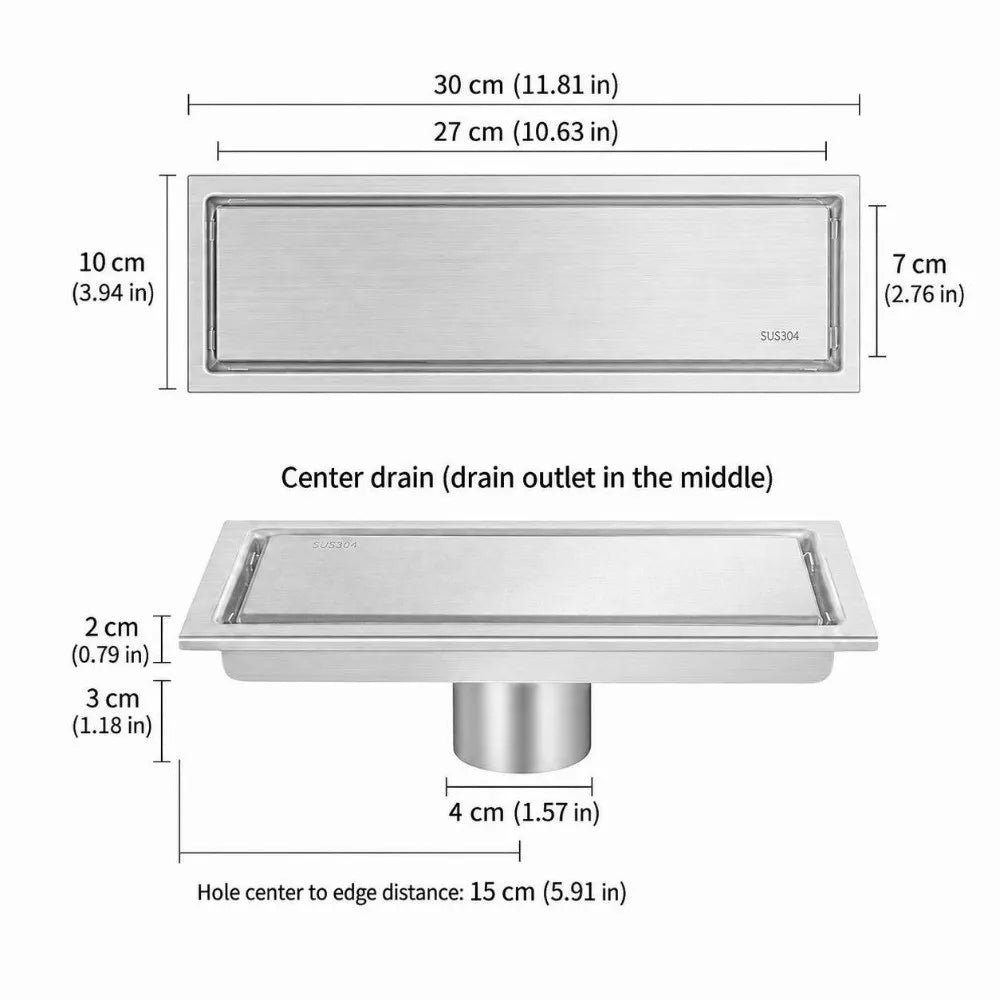

| Outer Size | Approx. 300 × 100 mm (11.81 × 3.94 in) |
| Inner Panel Size | Approx. 270 × 70 mm (10.63 × 2.76 in) |
| Panel Thickness | Approx. 20 mm (0.79 in) |
| Body Height | Approx. 30 mm (1.18 in) |
| Installation Depth Required | ≥ 60 mm (2.36 in) |
| Applicable Pipe Diameter | 50 / 75 mm (1.97 / 2.95 in) |
| Outlet Diameter | Approx. 40 mm (1.57 in) |
| Centre of Outlet to Edge | Approx. 150 mm (5.91 in) |
| Gross Weight | Approx. 600 g (21.16 oz) |
| Drain Method | Gravity Flushing |
| Country of Origin | Made in Mainland China |
Package Includes
- 1 × Linear Floor Drain (with tile-insert grille cover)
Related Products You May Like
- Self-Draining Bamboo Soap Dish – Minimalist Bathroom Soap Rack
- Stainless Steel Self-Adhesive Bathroom Wall Hooks
- Adjustable Faucet Hanging Sink Sponge & Drain Basket Organizer
Learn more: OSHA on personal protective equipment
Frequently Asked Questions
Q: What pipe sizes is this linear floor drain compatible with?
A: This SUS304 stainless steel linear floor drain is compatible with standard pipe diameters of 50 mm (1.97 in) and 75 mm (2.95 in), making it suitable for most residential bathroom and kitchen plumbing setups.
Q: How deep does the installation recess need to be for this shower floor drain?
A: A minimum installation depth of 60 mm (2.36 in) is required. The body height of the drain is approximately 30 mm, so please ensure your floor build-up allows adequate depth before installation.
Q: Does this floor drain help prevent odours from coming back up?
A: Yes. The built-in U-shaped water-storage trap retains a water seal that acts as a barrier, helping to contain odours from the pipe and keep your bathroom or kitchen smelling fresh during daily use.
Q: Is the grille cover easy to remove for cleaning?
A: Absolutely. The grille cover is designed for tool-free removal — simply lift it out to access the inner filter basket and drain body for quick and easy routine cleaning and maintenance.
Production & Packaging Notice
To maintain high stock availability and fast shipping times, our items are sourced from multiple verified manufacturing facilities. While the core quality, materials, and product specifications remain identical, you may notice slight variations in the packaging design, manufacturing origin, or the wording of the printed instructions.
