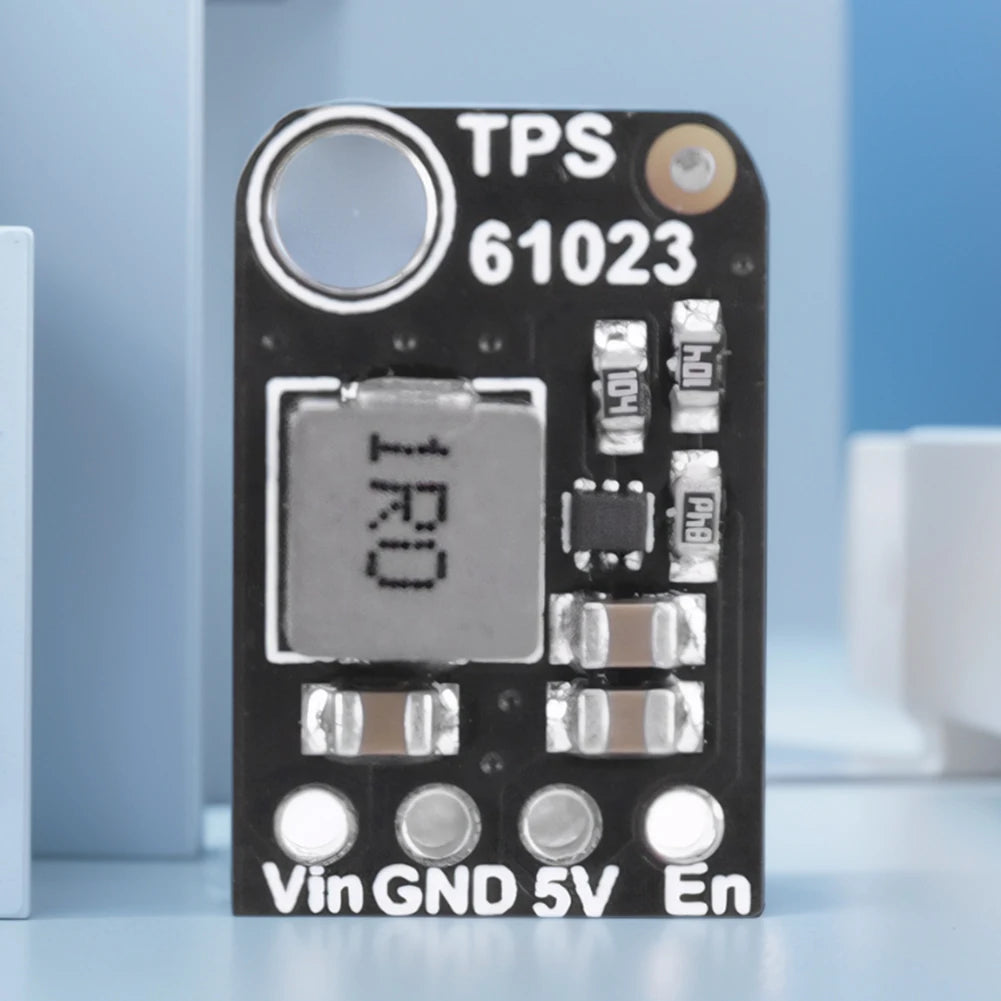

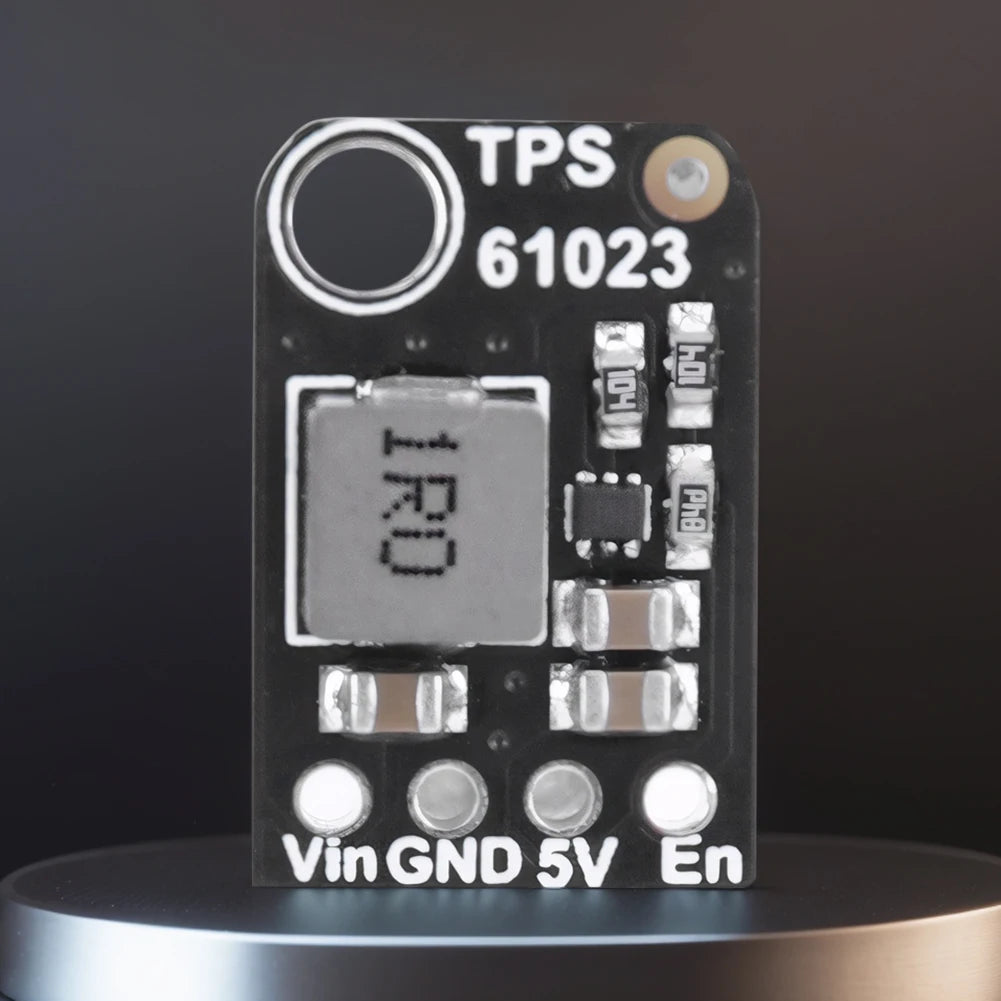

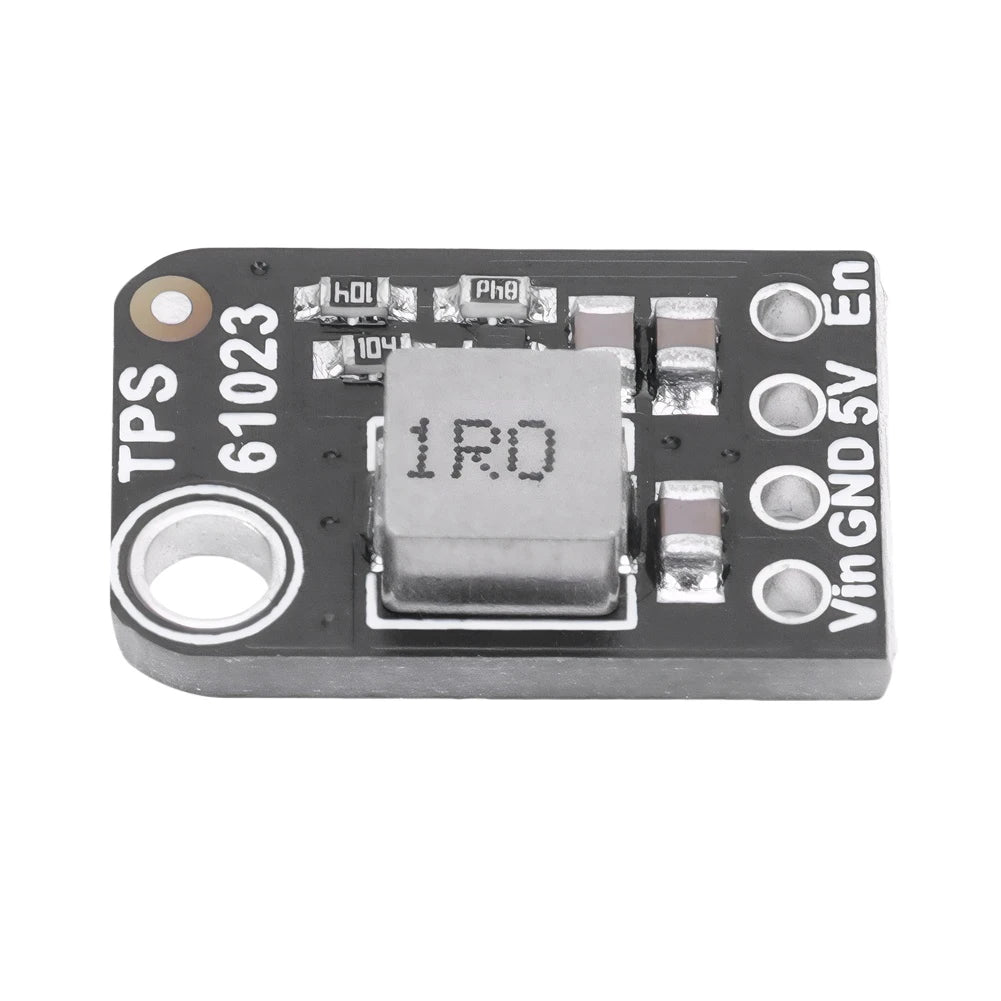

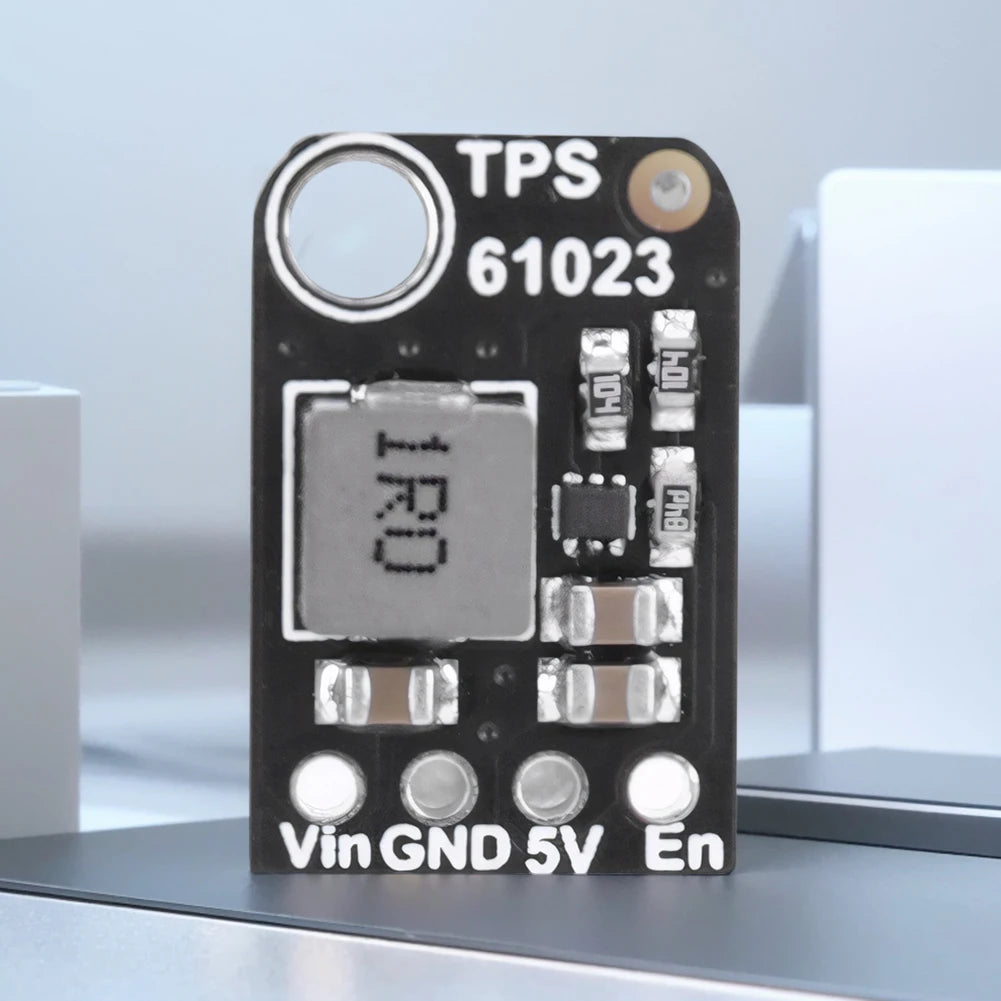

TPS61023 Mini Boost Module – 5V 1A Step-Up Voltage Regulator

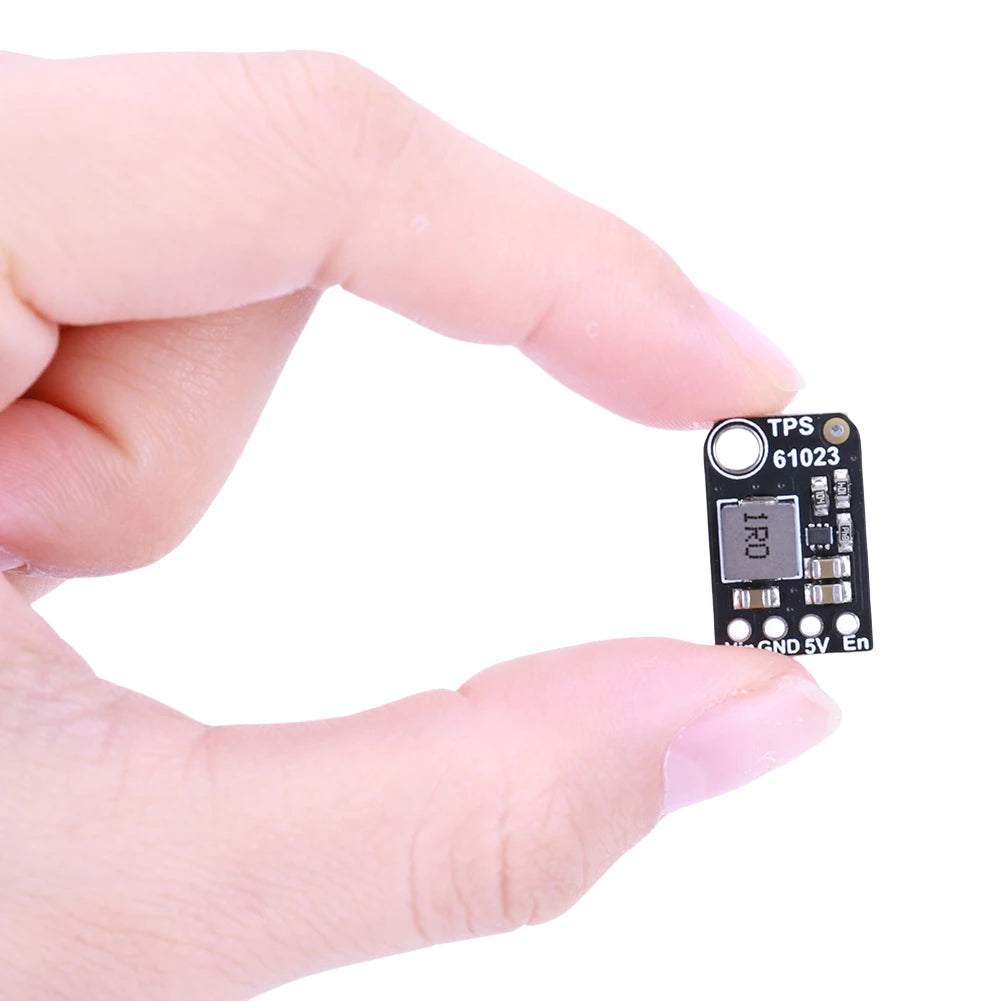

This compact TPS61023 Mini Boost Module is a must-have for electronics enthusiasts and makers. Despite being roughly the size of a linear regulator, it packs serious power-conversion performance — taking any input between 2V and 5VDC and delivering a stable, regulated 5V output at up to 1A. Perfect for battery-powered projects running on 2–3 alkaline cells or a single lithium cell.
Made in Mainland China.
Key Features
- Output Short-Circuit Protection: Built-in circuitry keeps your connected devices safe if an accidental short occurs at the output.
- Overvoltage & Thermal Shutdown Protection: Advanced safety mechanisms automatically shut the module down if voltage or temperature exceeds safe thresholds, protecting both the module and your project.
- Automatic PFM Operation for Light Loads: Automatically switches to Pulse Frequency Modulation (PFM) mode under light load conditions, maximising efficiency and extending battery runtime.
- VIN > VOUT Pass-Through Mode: Seamlessly transitions to pass-through mode when the input voltage already exceeds the output voltage — no interruptions, no hiccups.
- True Input/Output Disconnect at Shutdown: Ensures complete isolation between input and output when the module is shut down, eliminating leakage currents.
Technical Specifications
| Input Voltage Range | 0.5V – 5.5V |
| Output Voltage | 5V (fixed) |
| Output Current | Up to 1A |
| Minimum Startup Voltage | 1.8V |
| MOSFET On-Resistance | 47mΩ (LS) / 68mΩ (HS) |
| Valley Switch Current Limit | 3.7A |
| Switching Frequency | 1 MHz (VIN > 1.5V) / 0.5 MHz (VIN < 1V) |
| Shutdown Current (VIN & SW) | Typical 0.1μA |
| Reference Voltage Accuracy | ±2.5% from -40°C to +125°C |

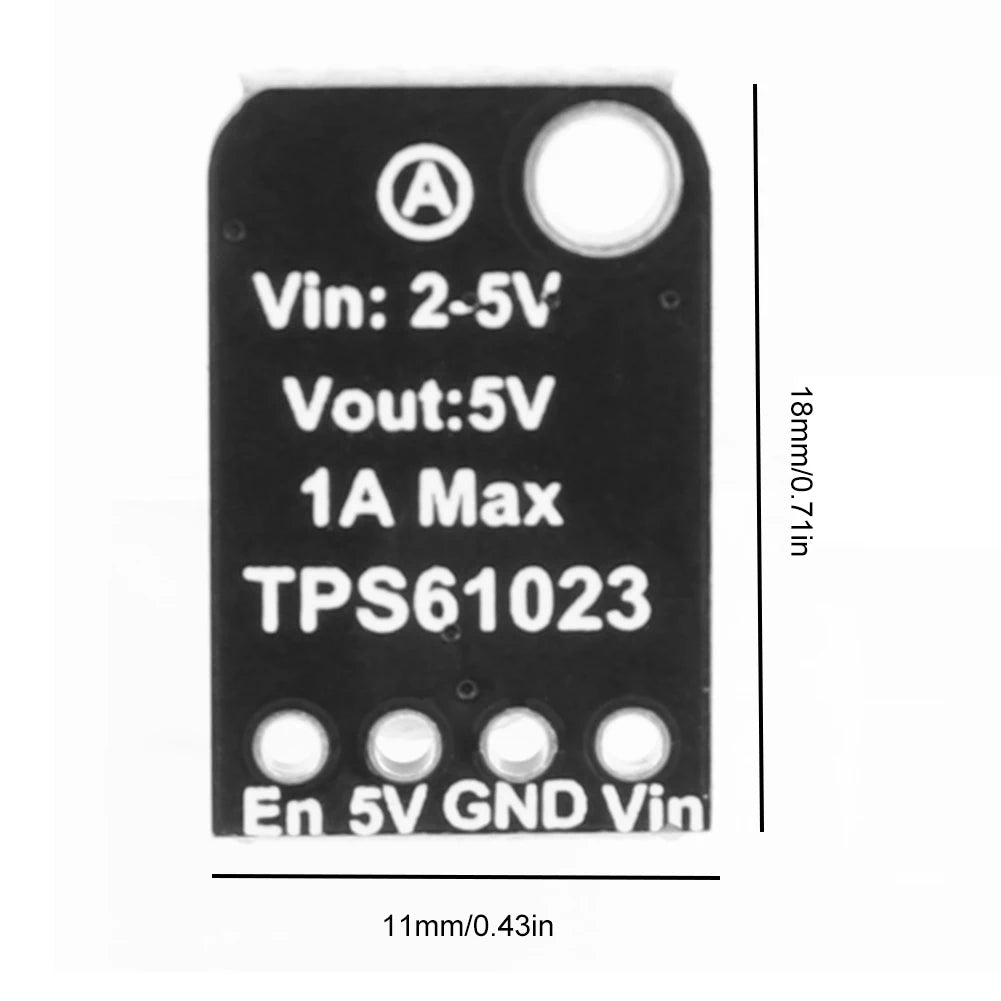

| Dimensions | 18 × 11 × 5 mm (0.71 × 0.43 × 0.20 in) |
What's in the Box
- 1 × TPS61023 Mini Boost Module
Related Tools & Accessories
Pair your electronics projects with these handy tools from our store:
- 10 in 1 Multi Functional Bone Wrench – Portable Repair Hand Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
- 16 in 1 Multi-function Bike Repair Tool – Portable Folding Hex Wrench Set
Note: Due to monitor calibration and lighting differences, the actual product colour may vary slightly from images. Please allow ±1–2 cm measurement tolerance due to manual measurement.
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What input voltage range does the TPS61023 Mini Boost Module support?
A: The TPS61023 boost module accepts an input voltage range of 0.5V to 5.5V, with a minimum startup input voltage of 1.8V. It is ideal for 2–3 alkaline cells or a single lithium cell, converting that input to a stable 5V output.
Q: How much current can the 5V boost module deliver?
A: The module delivers up to 1A of output current at 5V. The 3.7A valley switch current limit ensures efficient and stable power delivery even under varying load conditions.
Q: Does the TPS61023 step-up module have any built-in safety protections?
A: Yes. The module includes output short-circuit protection, overvoltage protection, and thermal shutdown protection. It also provides true input/output disconnect during shutdown to prevent leakage, making it safe for use in sensitive battery-powered electronics projects.
Q: What is PFM mode and why does it matter?
A: PFM (Pulse Frequency Modulation) mode is automatically activated under light load conditions. It reduces switching activity to improve energy efficiency, which is especially beneficial in battery-powered applications where extending battery life is a priority.
