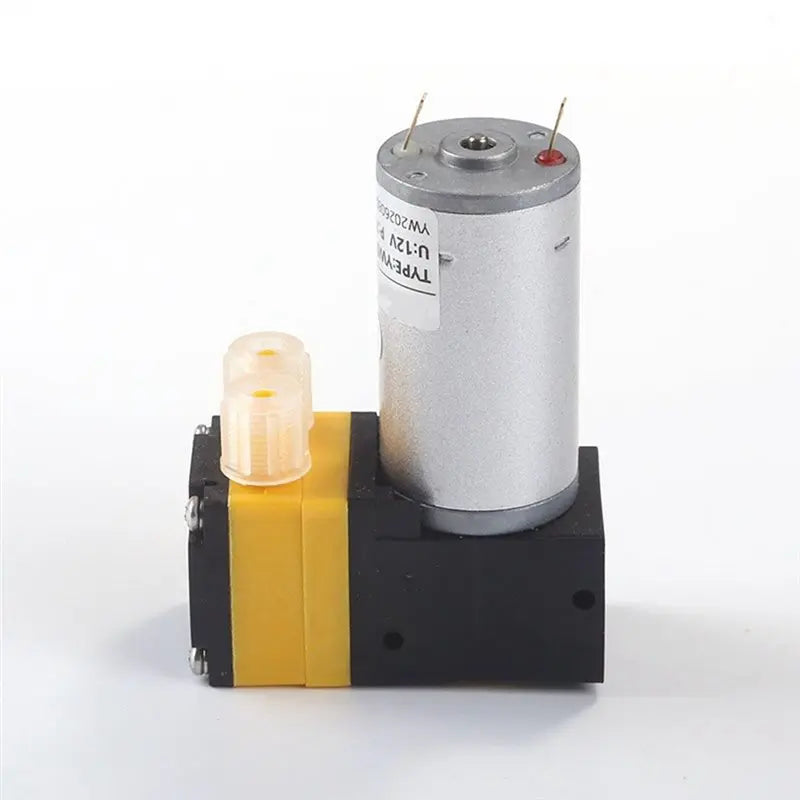

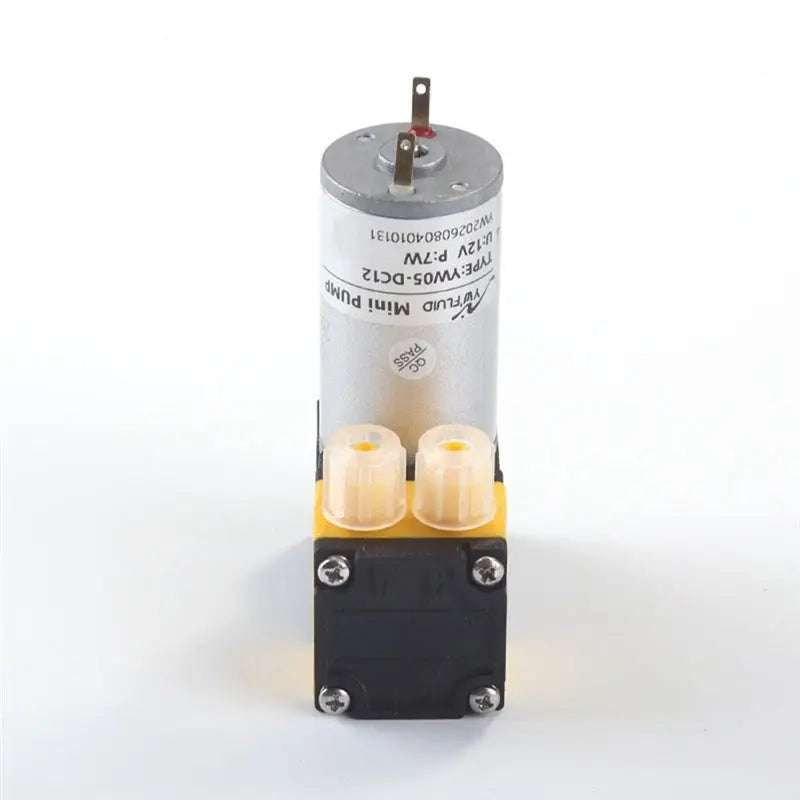

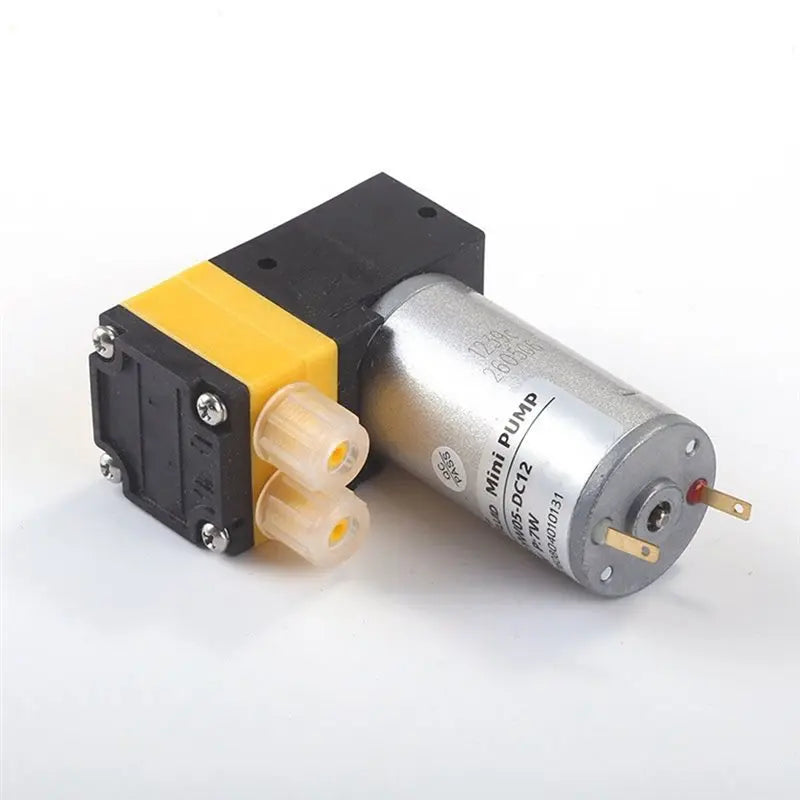

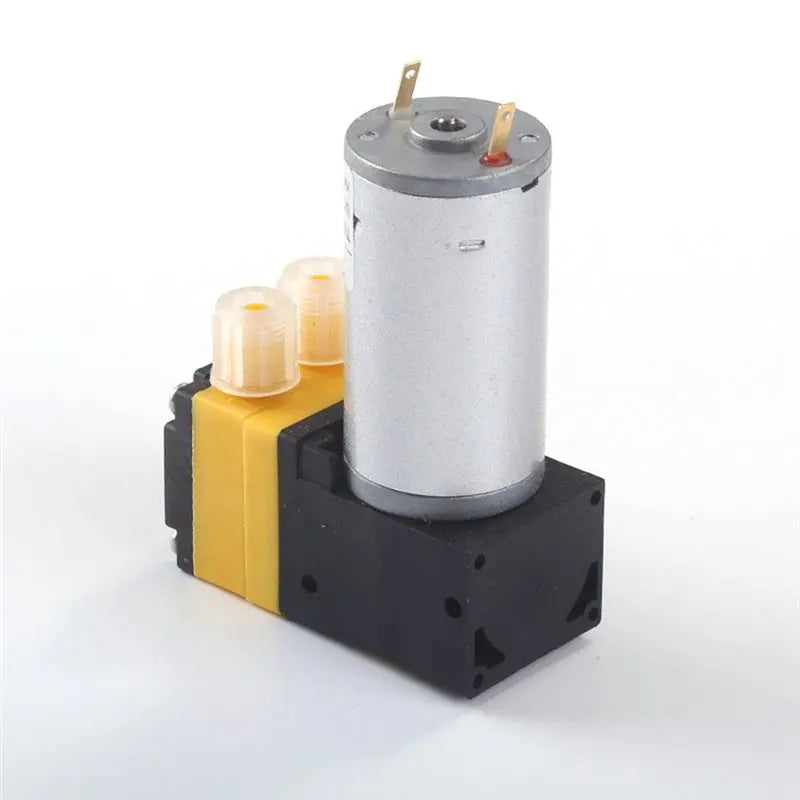

VIBE YW05 12V Mini Diaphragm Pump – DC Self-Priming Pump
VIBE YW05 12V Mini Diaphragm Pump – DC Self-Priming Pump
VIBE YW05 12V Mini Diaphragm Pump – DC Motor, Self-Priming, Dual Gas & Liquid

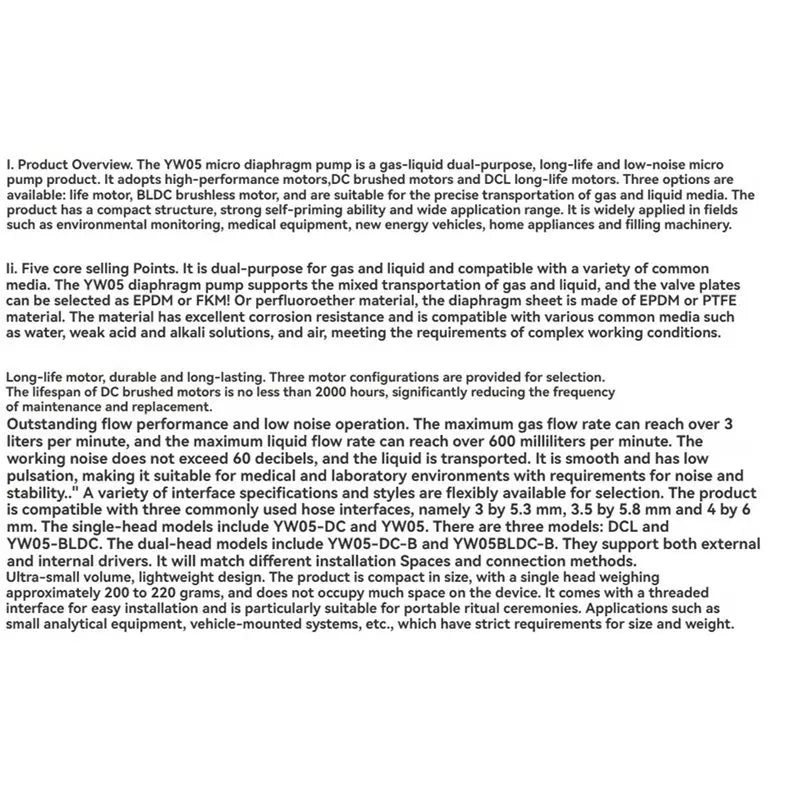

The VIBE YW05 12V Mini Diaphragm Pump is a compact, high-performance self-priming pump designed for both gas and liquid transfer across a wide range of applications. Driven by a long-life DC brushed motor and built with corrosion-resistant diaphragm materials, this pump delivers reliable, low-noise operation in a space-saving form factor — ideal for automotive, analytical, environmental, and new energy systems.
Made in China.
Key Features
- Dual-Purpose Gas & Liquid Handling: Supports transport of both gases and liquids. The diaphragm is available in EPDM or PTFE, offering excellent corrosion resistance and compatibility with water, weak acids/alkalis, and air.
- Long-Life DC Motor: The DC brushed motor delivers a service life of at least 2,000 hours, significantly reducing the need for frequent maintenance or replacement.
- Strong Flow Performance & Low Noise: Maximum gas flow exceeds 3 L/min; maximum liquid flow exceeds 600 mL/min. Operating noise stays at or below 60 dB for quiet operation.
- Ultra-Compact & Lightweight Design: Small footprint saves valuable equipment space. Integrated threaded ports make installation straightforward — perfect for portable instruments, vehicle-mounted systems, and small-scale analytical equipment.
- Robust Self-Priming Capability: Reliable self-priming design suitable for demanding environments including environmental monitoring, new energy vehicles, home appliances, and filling machinery.
Specifications
| Model | YW05 |
| Voltage | 12V DC |
| Power Source | Electric (DC Brushed Motor) |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 100°C |
| Compatible Media | Gases and liquids |
| Valve Material | EPDM, FKM, FFKM |
| Diaphragm Material | EPDM, PTFE |
| Max Gas Flow | > 3 L/min |
| Max Liquid Flow | > 600 mL/min |
| Noise Level | ≤ 60 dB |
| Motor Lifespan | ≥ 2,000 hours (DC, single-head) |
| Body Material | Metal |
| EU LVD Compliance | Low voltage (below 50Vac or 75Vdc) |
| Batteries Included | Not included |
Applications
- Environmental Monitoring: Air quality monitoring, water quality monitoring, exhaust treatment systems
- Automotive: Exhaust treatment, urea pumps, vacuum assist systems
- New Energy: Hydrogen energy systems, photovoltaic equipment
- Industrial & Other: Inkjet printing equipment, filling machinery, home appliance controls, small-scale analytical instruments
Package Contents
- 1 × YW05 12V Mini Diaphragm Pump
Note: Only the above item is included. Due to lighting and display variations, the actual color may differ slightly from product images. Measurement tolerance is ±1–3 cm.
You May Also Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16-in-1 Multi-Function Bike Repair Tool – Portable Folding Hex Wrench Set
- 48-Pc MIG Welding Nozzle & Tip Set – MB15 AK15 Torch
Learn more: FuelEconomy.gov driving efficiency guidance
Frequently Asked Questions
Q: What types of fluids and gases is the VIBE YW05 12V Mini Diaphragm Pump compatible with?
A: The YW05 diaphragm pump is compatible with a wide range of media including air, water, weak acids, weak alkalis, and other common gases and liquids. Its EPDM and PTFE diaphragm materials provide strong corrosion resistance, making it suitable for diverse applications from environmental monitoring to automotive systems.
Q: Does the YW05 diaphragm pump require priming before use?
A: No — the YW05 features a built-in self-priming design, allowing it to draw fluid automatically without manual priming. This makes it convenient and efficient to use in portable instruments, vehicle-mounted setups, and industrial equipment.
Q: What is the expected motor lifespan of this 12V diaphragm pump?
A: The DC brushed motor is rated for a minimum lifespan of 2,000 hours of operation (single-head configuration), reducing the frequency of maintenance and keeping your system running reliably over extended use.
Q: Can this pump handle both pneumatic (gas) and hydraulic (liquid) applications?
A: Yes. The VIBE YW05 is a dual-purpose pump capable of handling both gas (pneumatic) and liquid (hydraulic) transfer. Maximum gas flow exceeds 3 L/min and maximum liquid flow exceeds 600 mL/min, making it versatile across a range of professional and industrial uses.
