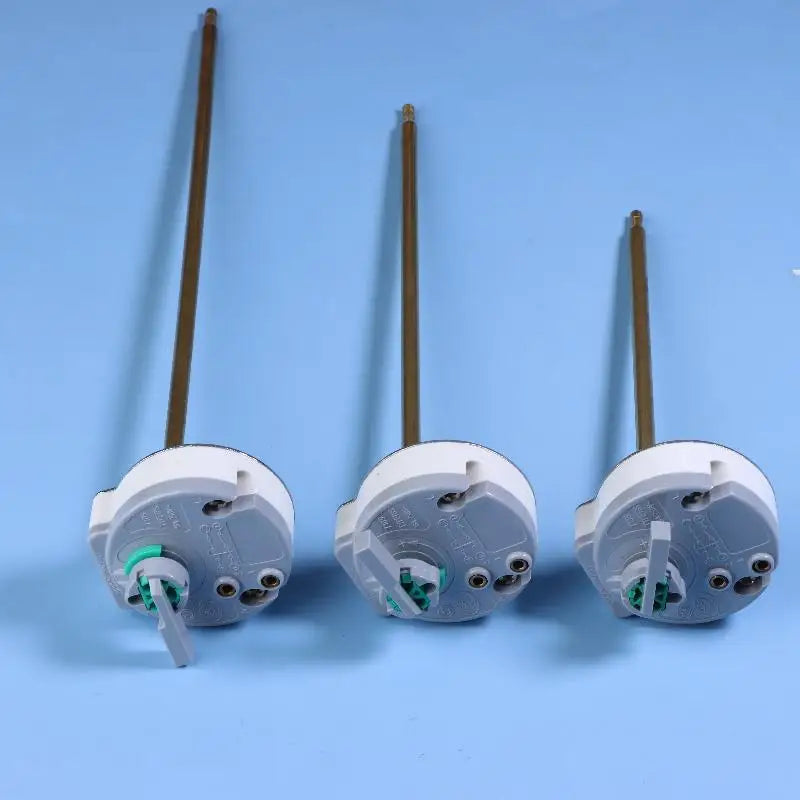

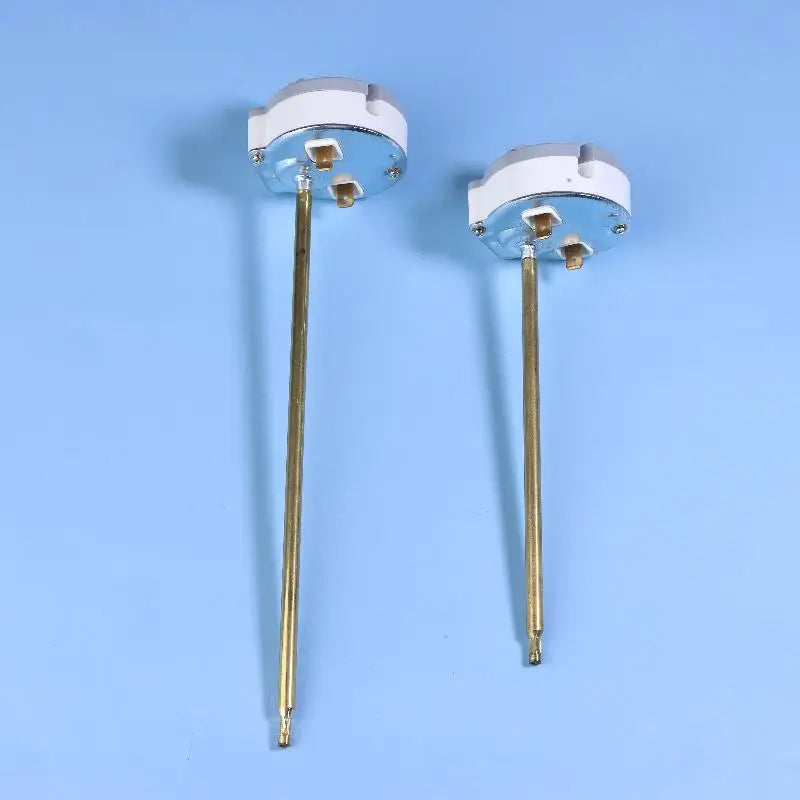

30–80°C Water Heater Push Thermostat Temperature Controller Switch

Water Heater Push Thermostat Temperature Controller Switch (30–80°C)

Keep your electric water heater running safely and efficiently with this precision plug-in push thermostat temperature controller switch. Designed for household electric water heaters, this compact yet robust component automatically regulates heating cycles — turning the heater on when water cools below your set temperature and shutting it off once the target temperature is reached. Built with a metal and brass construction, it delivers long-lasting durability and reliable performance.

Made in Mainland China.

How It Works

The thermostat integrates seamlessly into your water heater's circuit, forming a complete temperature control system that includes power supply, leakage protection, temperature control, water level indication, and anti-dry protection. Once installed and the circuit is connected, the switch operates automatically — no manual intervention required during normal use.

Key Features

• Wide Temperature Range: Controls water temperature between 30°C and 80°C
• Overtemperature Protection: Activates at 95°C (±5°C) to help prevent overheating
• High Power Rating: Rated 16A at 250VAC for dependable electrical performance
• Superior Insulation: Insulation resistance of 500 MΩ or higher; withstands AC 50Hz 1800V without breakdown
• Long Mechanical Life: Reed mechanism rated for 100,000 cycles; bimetallic strip rated for 1,000 actions

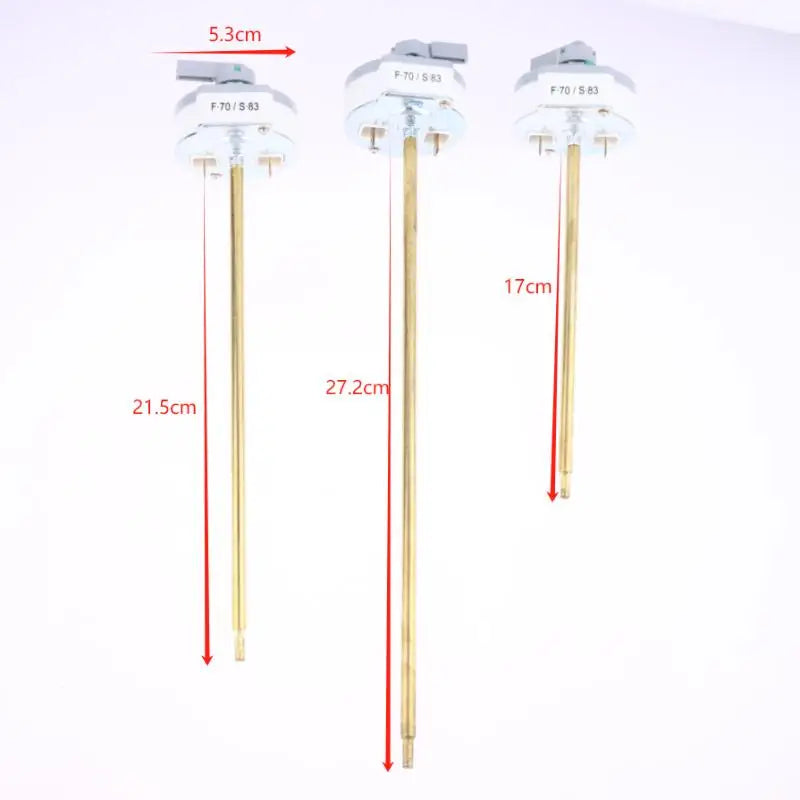

• Compact Size: Rod diameter Φ6mm (±0.1mm); connection socket 4mm (±0.1mm) — easy to fit standard water heater housings
• Quality Materials: Metal and brass construction for heat resistance and longevity

Technical Specifications

Please Note: This listing is for the Temperature Control Switch only. Accessories shown in product images are for demonstration purposes and are NOT included.

Related Products You May Like

• 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16-in-1 Multi-Function Folding Hex Wrench Set – Portable Repair Tool
• 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Repair Tool

Learn more: OSHA on personal protective equipment

Frequently Asked Questions

Q: What appliances is this water heater thermostat temperature controller switch compatible with?

A: This push thermostat temperature controller switch is designed for household electric water heaters. It is compatible with standard units that use a Φ6mm rod thermostat fitting with a 4mm connection socket, including many Ariston-style water heater configurations. Always verify your appliance's specifications before installation.

Q: What is the operating temperature range of this thermostat switch?

A: The thermostat controller operates across an action temperature range of 30°C to 80°C. It also features a built-in overtemperature protection function that activates at 95°C (±5°C), automatically cutting off power to help prevent overheating of your water heater.

Q: Is this thermostat switch easy to install?

A: The switch is designed as a plug-in push-type component, making it straightforward to fit into compatible water heater housings. However, as it involves electrical wiring and appliance components, installation should be carried out by a qualified technician or a confident DIYer with relevant electrical knowledge to ensure safe and correct fitting.

Q: Does this package include any additional accessories?

A: No — the package contains 1 × Temperature Control Switch only. Any accessories or components shown in the product images are for illustrative purposes and are not included with the purchase.
