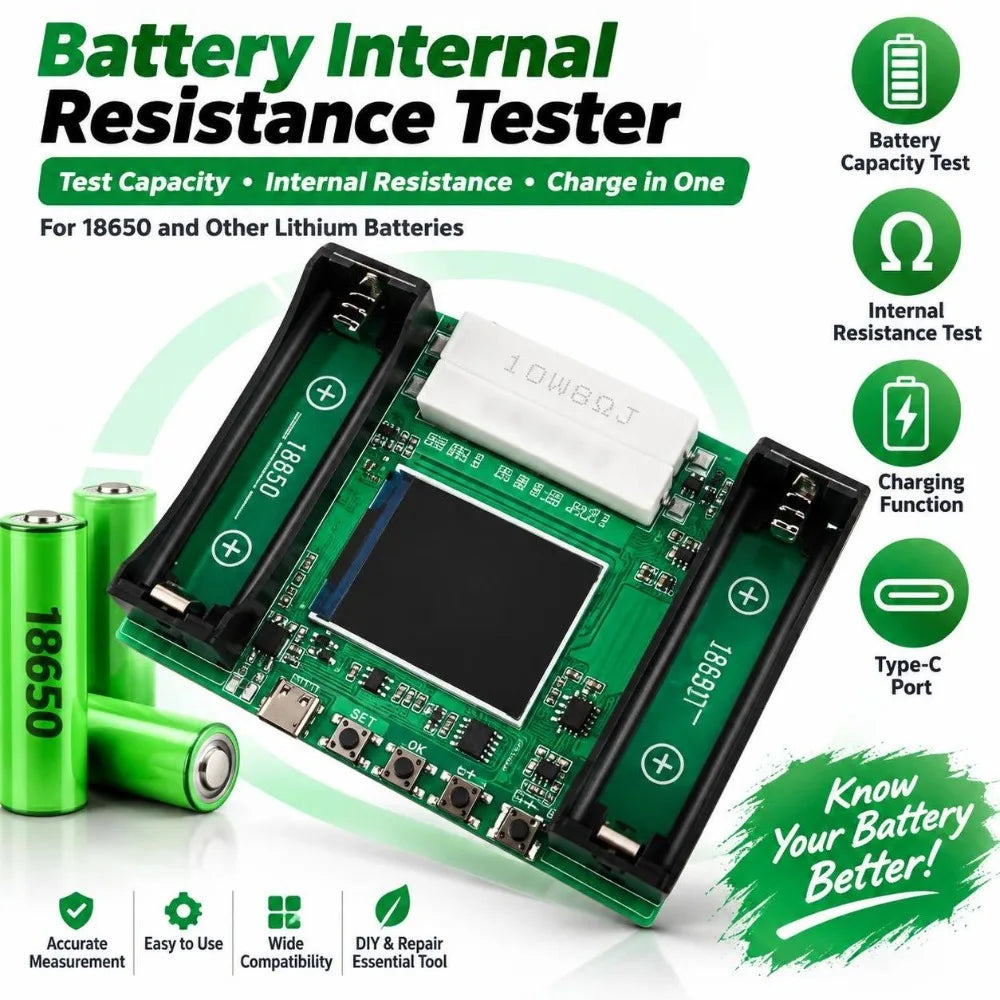

18650 Lithium Battery Capacity Tester with Adjustable Discharge Modes
Get accurate, real-time readings of your 18650 lithium battery's true capacity with this advanced multi-functional tester. Whether you're screening cells for DIY electronics, verifying battery health for lab use, or testing batteries for recycling projects, this compact module gives you the data you need on a crisp 1.77-inch LCD screen — measuring mAh, mWh, voltage, current, and power all at once.
Made in Mainland China.
Key Features
- Multi-Mode Testing: Supports charge, discharge, and full auto charge-discharge cycle testing. Run 1–9 adjustable cycles in automatic mode for thorough capacity verification.
- Internal Resistance Measurement: Uses the DC two-wire method to accurately read internal resistance in real time — no extra equipment needed.
- Digital LCD Display: 1.77-inch screen shows live voltage, current, power, accumulated capacity (mAh), and energy (mWh) simultaneously.
- Type-C DC 5V Input: Powers via any standard USB-C cable (not included) — convenient and universally compatible with modern power banks and chargers.

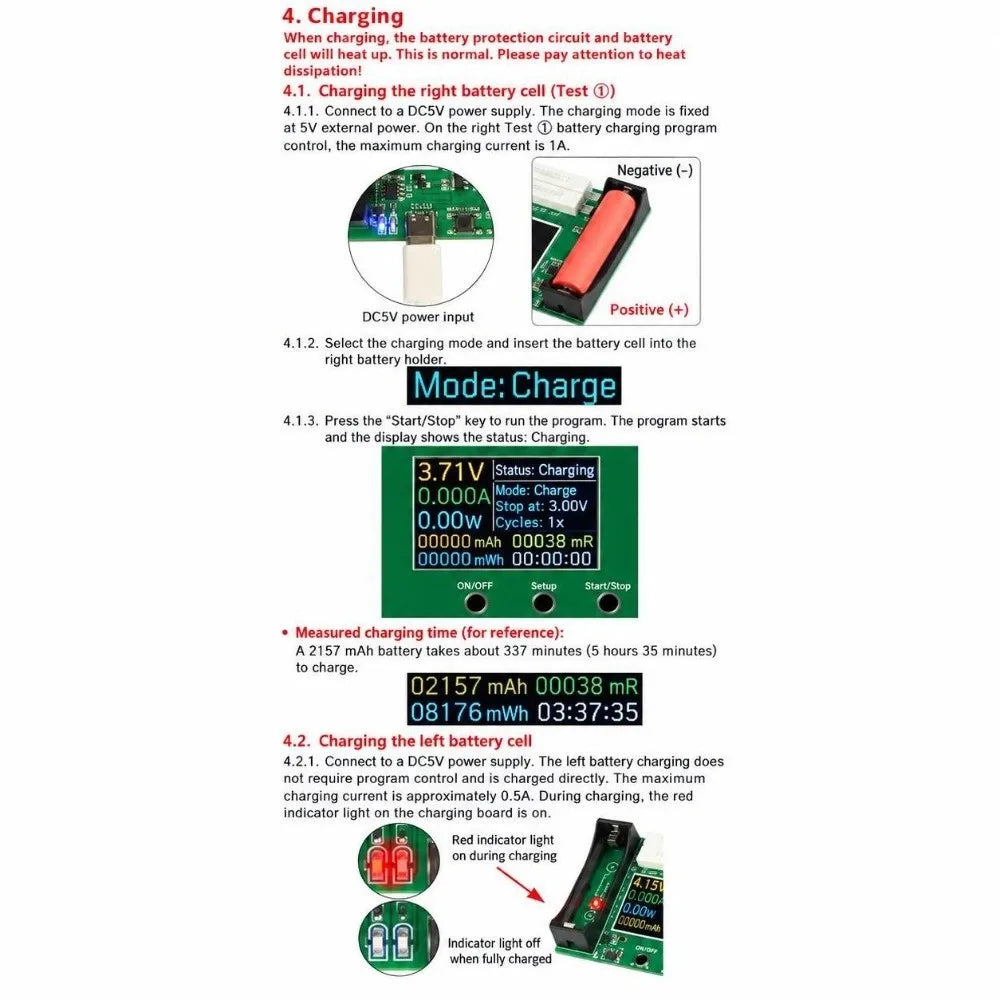

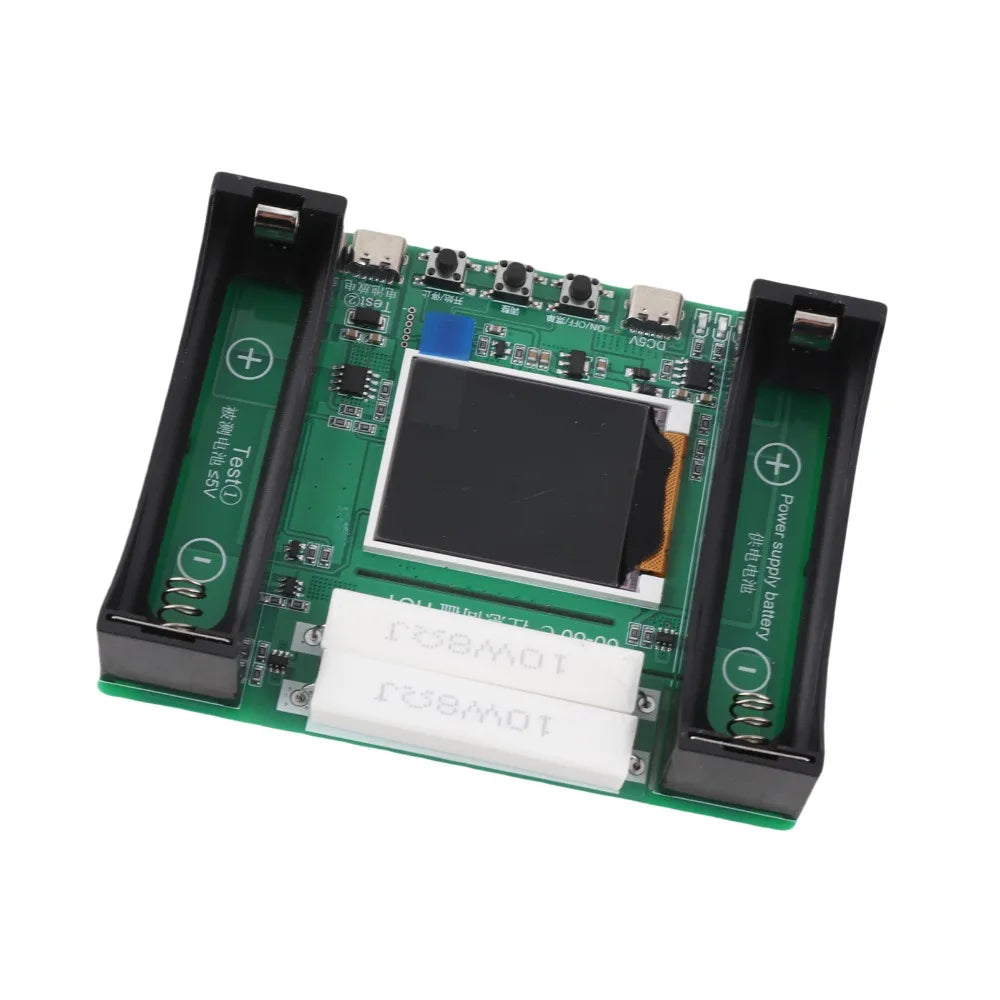

- Dual Battery Slot Design: Left slot serves as the power supply compartment (hardware charge control up to 0.5A); right slot is dedicated to charge/discharge capacity testing (up to 1A program-controlled charging).
- 11 Adjustable Cutoff Voltages: Set stop-discharge voltage from 2.5V to 3.5V across 11 selectable levels to suit different battery chemistries and test scenarios.
- Parameter Memory: Saves your settings after power is cut — no need to reconfigure every time you power on.
- Bilingual Interface: Switch between Chinese and English menus with ease.

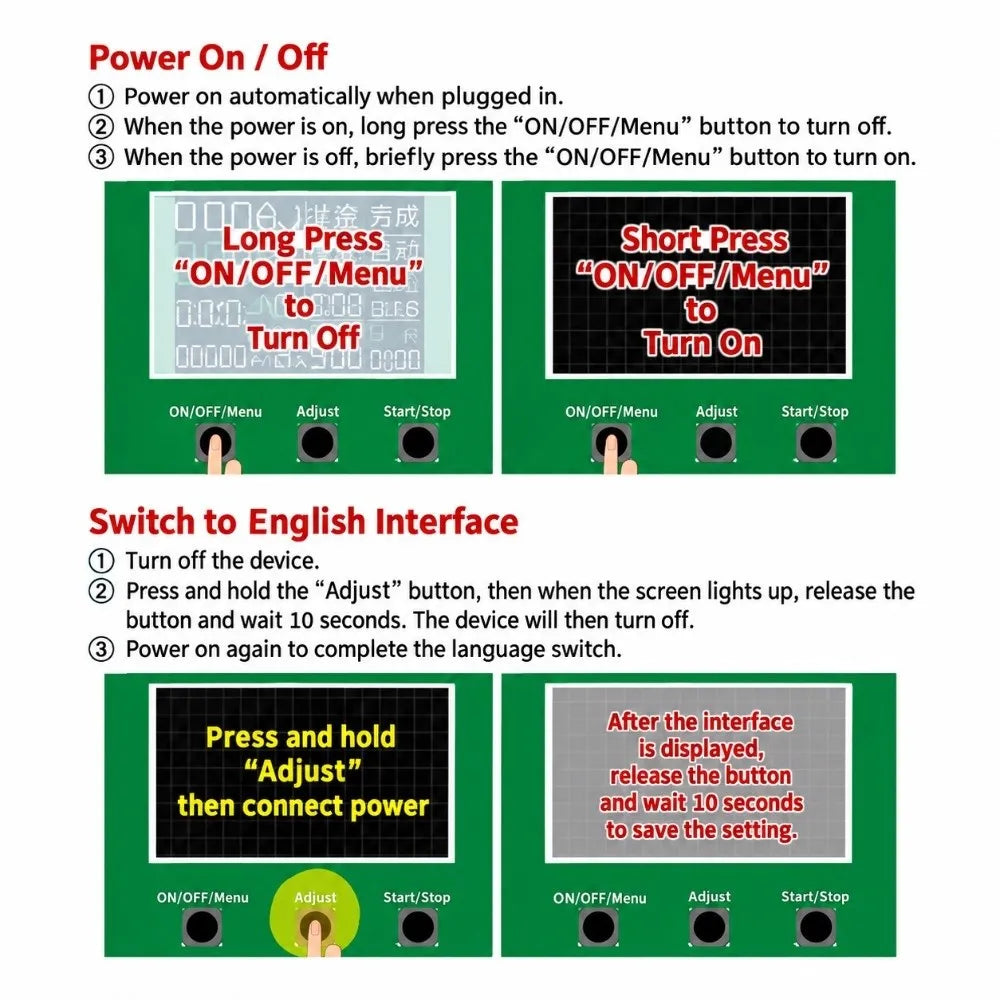

- 3-Button Control: Simple physical buttons to switch modes, adjust settings, and start/stop tests. Supports auto power-on and long-press power-off.
- Compact & Portable: Measures just 108 × 72 × 38 mm (4.25 × 2.83 × 1.50 in) and weighs only 75.5g — fits perfectly on any workbench.
Specifications
| Item Type | Battery Capacity & Internal Resistance Tester |
| Material | PCB |
| Color | Green |
| Dimensions | 108 × 72 × 38 mm (4.25 × 2.83 × 1.50 in) |
| Weight | 75.5g |
| Screen Size | 1.77 in / 4.5 cm |
| Power Supply | DC 5V via Type-C interface OR 2× 18650 batteries (not included) |
| Compatible Batteries | All batteries with discharge cutoff 2.5–3.5V, charge start 2.8V–4.2V |
| Charging Current | Up to ~1A (right slot, program-controlled); up to 0.5A (left slot, hardware-controlled) |
| Discharge Current | Max ~1A (fixed, non-adjustable) |
| Stop Discharge Voltage | 2.5V–3.5V (11 adjustable levels) |
| Cycle Testing | 1–9 cycles (automatic mode only) |
| Internal Resistance Method | DC Two-Wire |
| Power-Off Memory | Saves settings (not measurement data) |
| Origin | Mainland China |
What's in the Box
- 1× 18650 Battery Capacity & Internal Resistance Tester Module
Note: Batteries and USB-C cable are NOT included. Please ensure adequate heat dissipation during charge/discharge operation.
Related Products You May Like
- 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
Learn more: ENERGY STAR product efficiency guidance
Frequently Asked Questions
Q: What type of batteries is this capacity tester compatible with?
A: This tester is designed for 18650 flat-top lithium batteries. It is compatible with any battery that has a discharge cutoff voltage between 2.5V and 3.5V and a charge start voltage between 2.8V and 4.2V. Note: lithium iron (LiFePO4) batteries are not supported for charging.
Q: Can I run multiple charge-discharge cycles automatically?
A: Yes! In automatic mode, the tester supports 1 to 9 adjustable charge-discharge cycles. It will complete the full sequence and display a "completed" status at the end — ideal for thorough battery capacity verification.
Q: Does the tester need batteries to operate, or can it run from a USB-C power source?
A: It can be powered either by a DC 5V supply via the Type-C (USB-C) port, or by two 18650 batteries installed in the left battery slot. Batteries and USB-C cable are not included in the package.
Q: Will my settings be saved if the power is cut?
A: Yes — the tester saves your configured parameters (such as cutoff voltage and cycle count) after power is disconnected. However, in-progress measurement data is not retained after a power cut.
