1880KV Mini 2515 Brushless Motor CW CCW for UAV Drone Models
1880KV Mini 2515 Brushless Motor CW CCW for UAV Drone Models

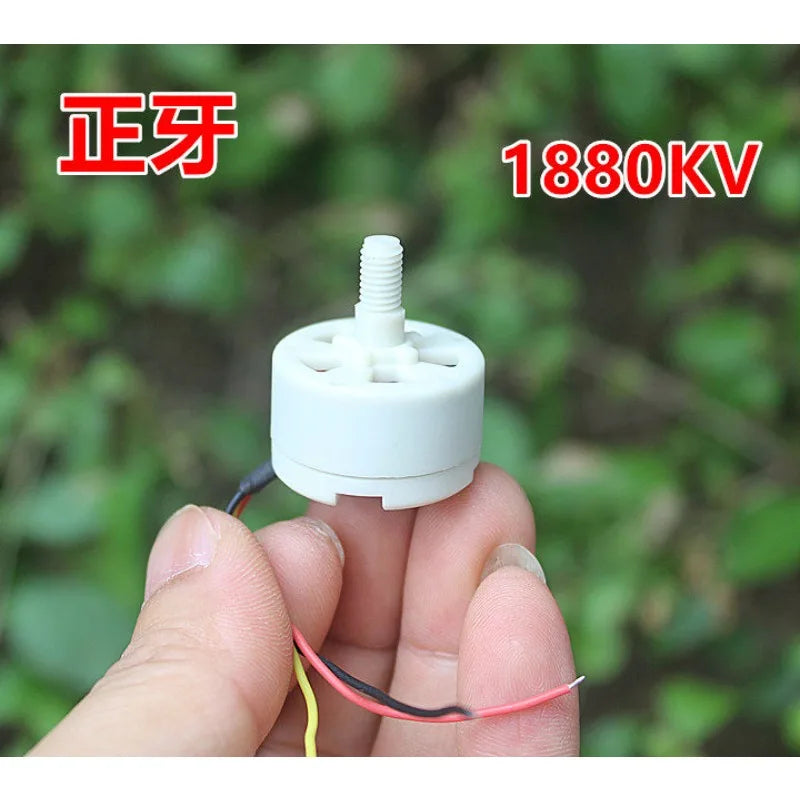

1880KV Mini 2515 Brushless Motor (BLDC) for UAV & Aircraft Models
Take your drone or RC aircraft build to the next level with this compact and efficient 1880KV 2515 Brushless Motor. Measuring just 25×15mm, this miniature BLDC motor is engineered for unmanned aerial vehicles (UAVs), model aircraft, and micro drone applications where lightweight performance and precision power delivery matter most. Available in both CW (clockwise) and CCW (counter-clockwise) configurations to suit multi-rotor setups requiring opposing motor pairs.
Key Features
- KV Rating: 1880KV — ideal for high-speed, responsive flight performance

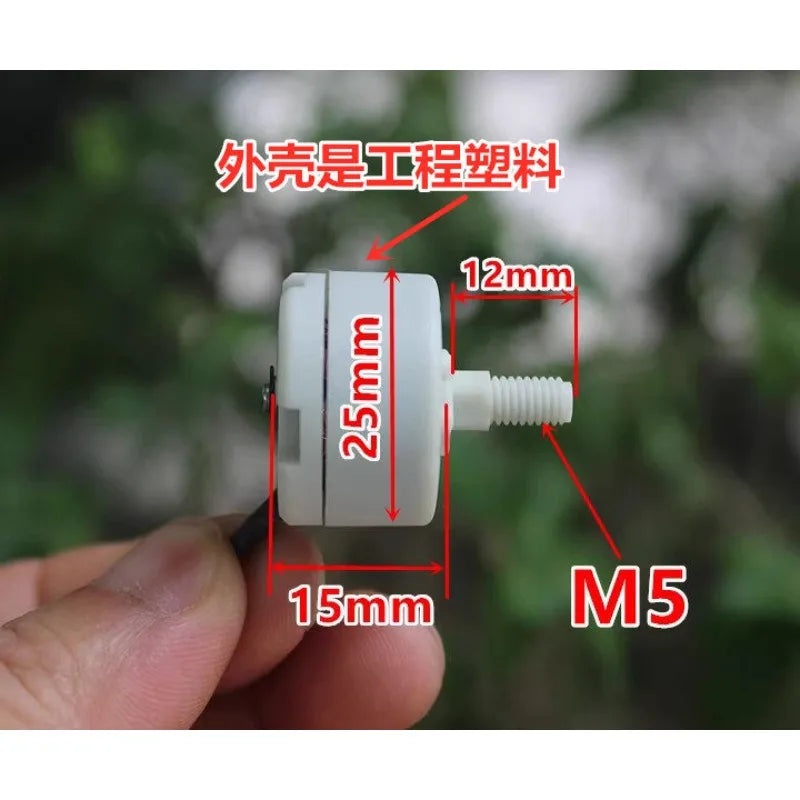

- Compact Form Factor: 25×15mm (2515) mini size — fits tight UAV frames and micro builds

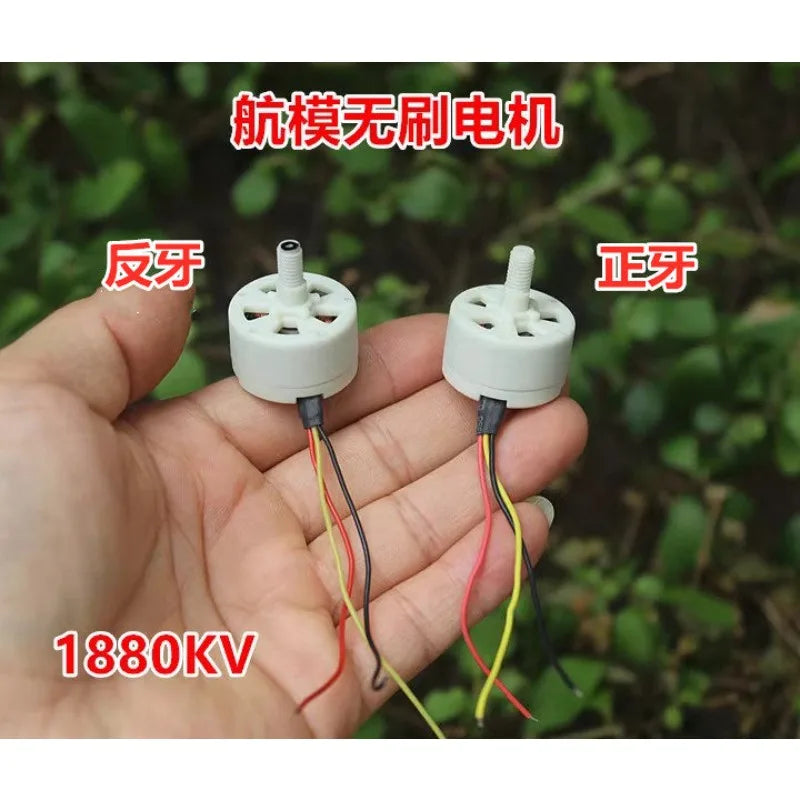

- CW & CCW Options: Threaded shaft variants for correct propeller retention on all motor positions
- Brushless Design: BLDC technology ensures longer lifespan, lower friction, and efficient power transfer compared to brushed motors
- Rated Voltage: 12V DC power supply
- Material: Durable plastic housing — lightweight without sacrificing structural integrity
- Plug-and-Play: Designed as a direct power tool parts-compatible component for model aircraft and UAV platforms
Specifications
| Model | 2515 (25×15mm) |
| KV Rating | 1880KV |
| Rated Voltage | 12V DC |
| Rotation | CW / CCW (with teeth shaft) |
| Motor Type | Brushless (BLDC) |
| Material | Plastic |
| Application | UAV, RC Aircraft, Drone Models |
Who Is This For?
Whether you're building a custom micro drone from scratch, replacing a worn-out motor on your existing aircraft model, or experimenting with UAV engineering, this 1880KV brushless motor delivers the performance you need in a compact, lightweight package. Its standard 2515 dimensions make it compatible with a wide range of mini UAV frames and motor mounts.
Made in Mainland China.
You May Also Like
- 10 in 1 Multi Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
- 16 in 1 Multi-Function Bike Repair Tool Portable Folding Hex Wrench Set
- 3-in-1 Precision Eyeglass Screwdriver Keychain – Portable Mini Screwdriver
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the difference between the CW and CCW brushless motor variants?

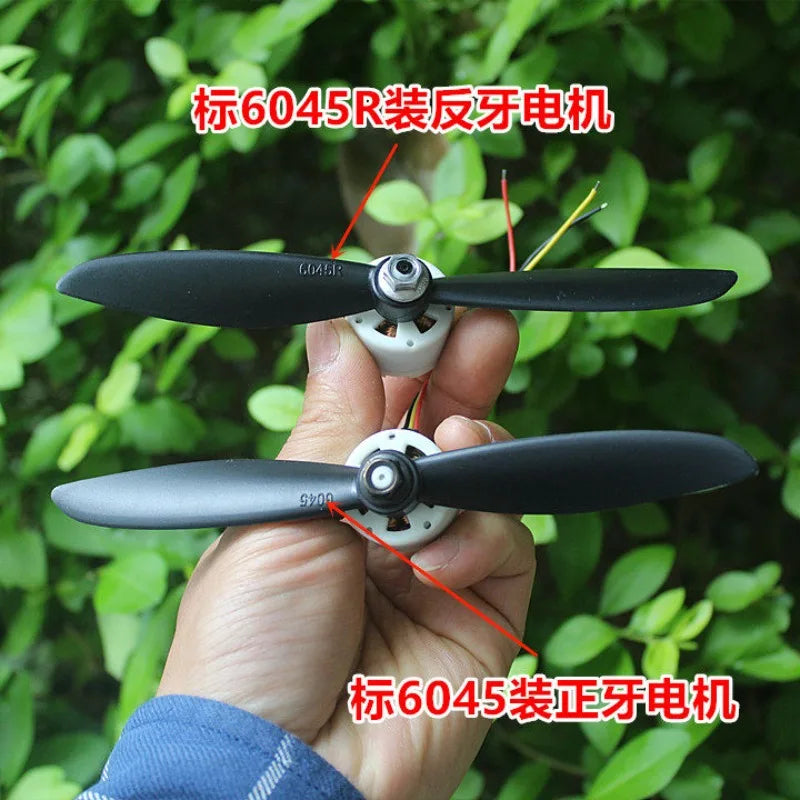

A: CW (clockwise) and CCW (counter-clockwise) refer to the threaded direction of the motor shaft. On multi-rotor UAVs, motors on opposite corners spin in opposite directions to balance torque. Using the correct CW or CCW motor on each position ensures the propeller nut tightens under thrust rather than loosening during flight, improving safety and stability.
Q: What voltage and power source does this 1880KV brushless motor require?
A: This BLDC motor is rated for a 12V DC power supply. It is designed to be paired with a compatible Electronic Speed Controller (ESC) and LiPo or equivalent battery pack suited for your UAV or aircraft model build.
Q: Is this motor compatible with standard 2515 UAV frames?
A: Yes. With a 25×15mm form factor, this mini brushless motor is designed to fit standard 2515 motor mounts found on many micro UAV and aircraft model frames. Always verify your frame's motor mount dimensions before installation.
Q: Can this motor be used for fixed-wing aircraft models as well as multi-rotor drones?
A: The 1880KV 2515 brushless motor is versatile enough for use in both fixed-wing RC aircraft models and multi-rotor UAV platforms, provided the frame, ESC, and propeller specifications are matched appropriately for your build.
