24-Pc Aluminum Solar Panel Rail Mount Kit – End & Middle Clamps

24-Piece Aluminum Solar Panel Rail Mounting Kit – Trapezoidal Roof End & Middle Clamps

Secure your photovoltaic panels with confidence using this professional-grade aluminum PV rail mounting kit. Designed specifically for trapezoidal metal sheet roofs, this 24-piece set provides a stable, well-distributed fastening solution that fits seamlessly into walkable trapezoidal roof profiles — no long profile strips required.

Key Features

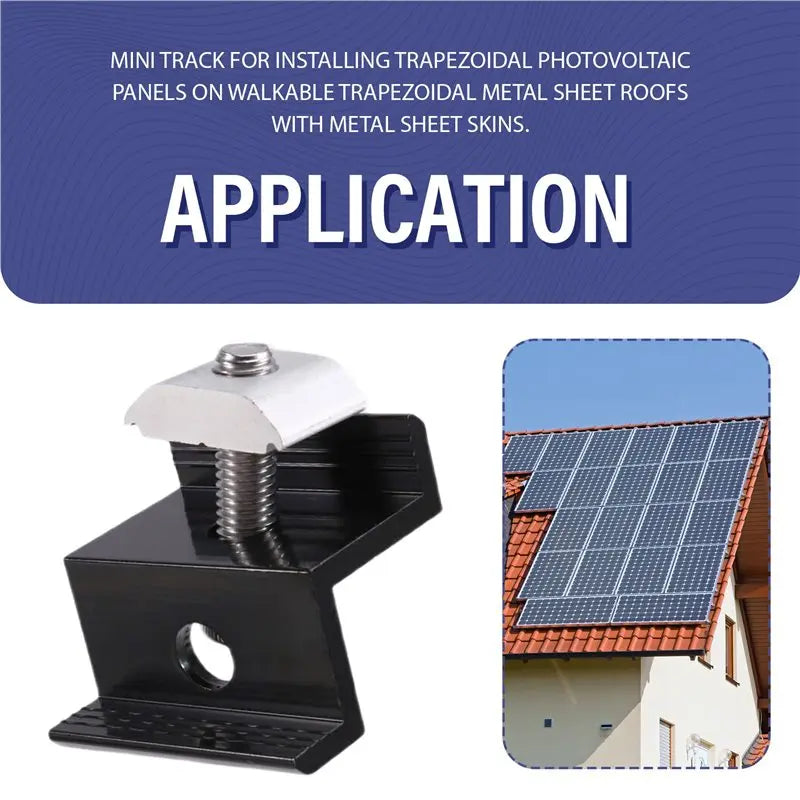

• Purpose-Built for Trapezoidal Roofs: Engineered for mini-rail installation of PV panels on walkable trapezoidal metal sheet roofs with metal sheet skins.
• Even Static Load Distribution: The mounting geometry reduces suction effects on the outer roof skin, protecting the underlying structure while keeping panels firmly in place.
• Aluminum Alloy Construction: Lightweight yet highly durable, the aluminum alloy build resists corrosion and holds up in outdoor environments year-round.

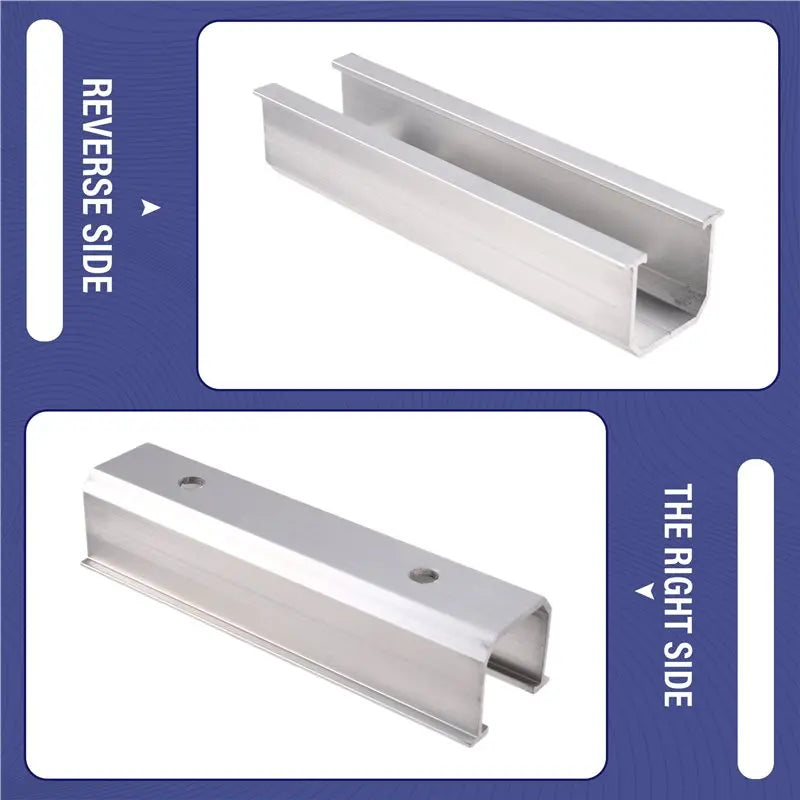

• Pre-Drilled & Sealed: Profile sections come pre-drilled and covered with sealing tape for faster, weather-tight installation.
• Adjustable to Post Spacing: Rail sections are sized to match the post spacing of standard profile panels, making layout and alignment straightforward.
• Versatile Finish: Available in a classic Black & Silver color combination to complement most roof aesthetics.

Specifications

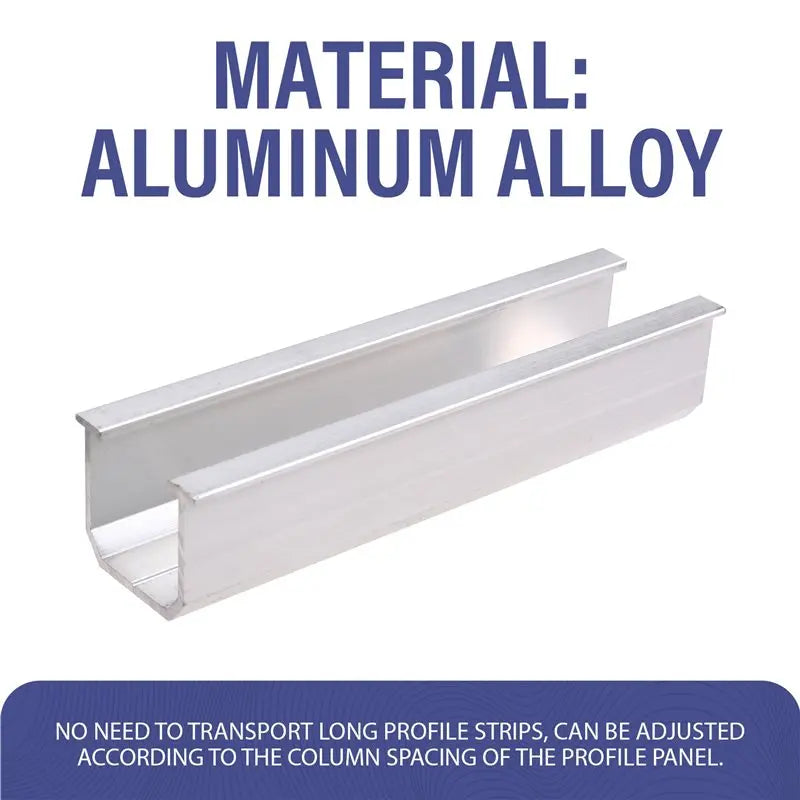

• Material: Aluminum Alloy
• Color: Black & Silver
• Compatibility: Trapezoidal photovoltaic panel installations on metal sheet roofs
• Country of Origin: Made in China

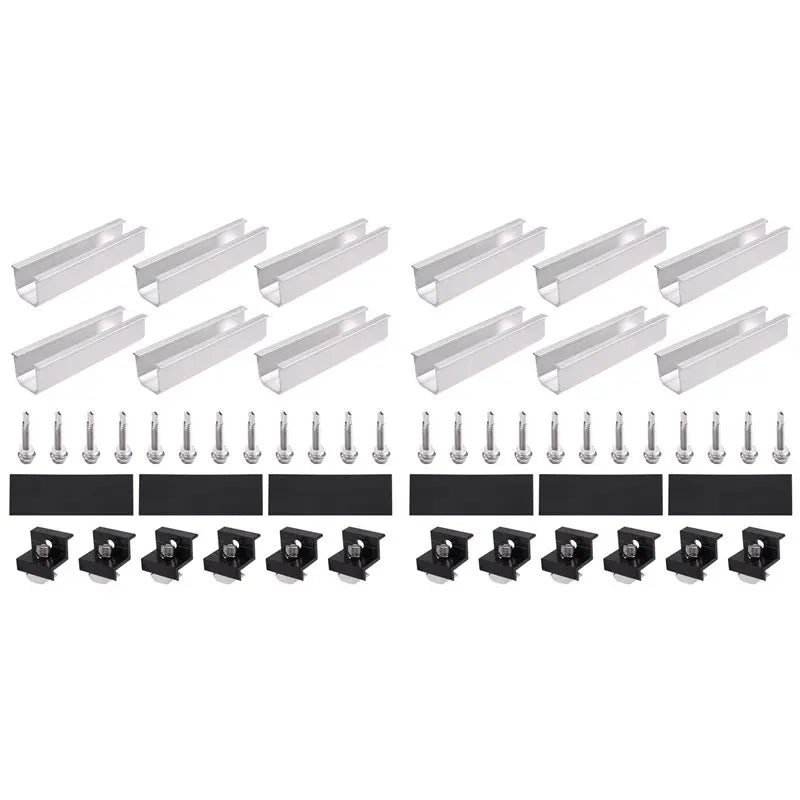

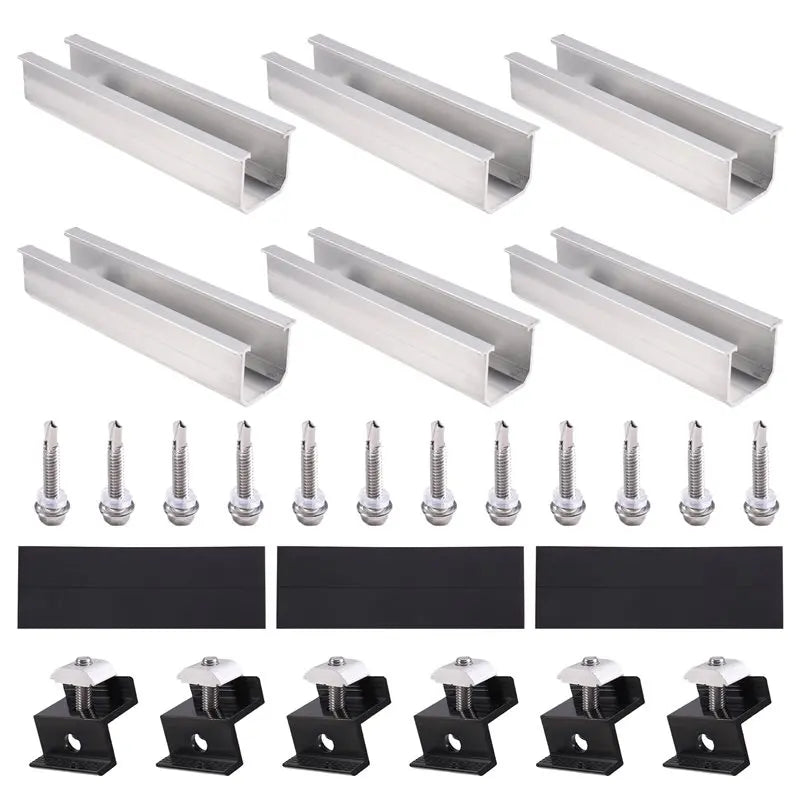

What's in the Box

• 12 × Rails
• 8 × End Clamps

Note: Only the items listed above are included. Measurement tolerances of ±1–3 cm may apply. Slight color variation may occur due to display settings and lighting.

You May Also Like

• 120mm U-Rail Solar Panel Mounting Kit – Clamps Included
• 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner – Portable Repair Hand Tool
• 16-in-1 Multi-Function Bike Repair Tool Portable Folding Hex Wrench Set

Learn more: OSHA on eye and face protection

Frequently Asked Questions

Q: What type of roof is this solar panel rail mounting kit designed for?

A: This 24-piece aluminum PV rail kit is specifically designed for trapezoidal metal sheet roofs — particularly walkable trapezoidal roof profiles with metal sheet skins. The pre-drilled, sealed rail sections align with standard post spacing on profile panels for a clean, secure fit.

Q: How many rails and clamps are included in the 24-piece kit?

A: The kit includes 12 aluminum rails and 8 end clamps, providing a complete fastening solution for securing photovoltaic panels to a trapezoidal roof section.

Q: Will this mounting kit protect my roof from damage during installation?

A: Yes. The kit's design promotes good static load distribution across the roof surface, which helps reduce the suction effect caused by the weight of the PV system on the outer skin of the roof covering — helping preserve the structural integrity of your roof.

Q: Is any drilling required during installation?

A: The profile rail sections come pre-drilled and are covered with sealing tape, significantly reducing on-site preparation time and helping ensure a weather-resistant seal at each mounting point.
