PD3.1 USB-C Charging Tester DC 4.5–50V 12A Power Meter

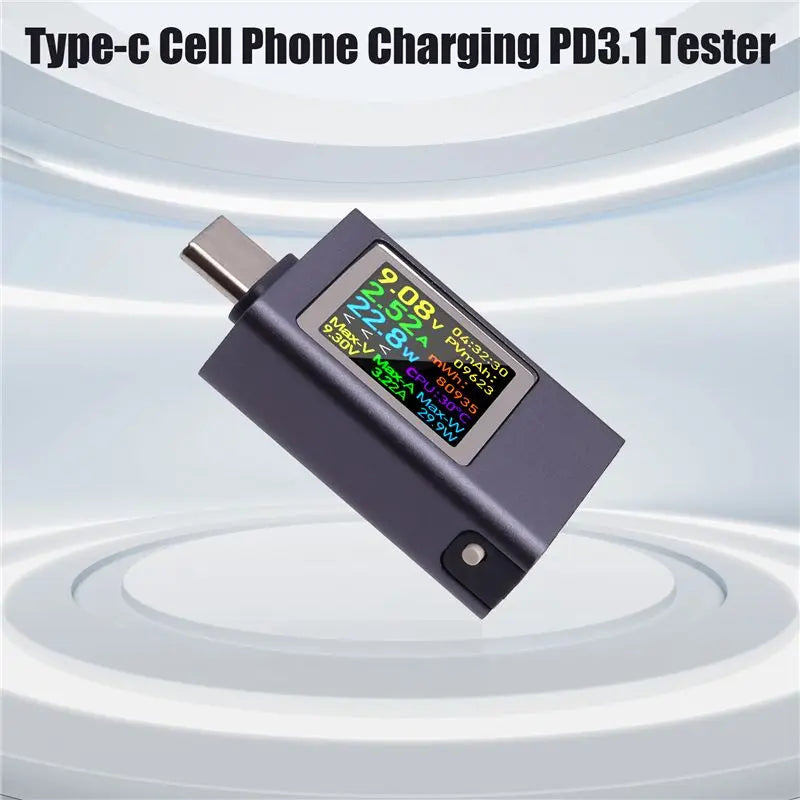

PD3.1 Multi-Function USB-C Charging Tester & DC Power Meter

Take full control of your charging setup with this professional-grade Type-C PD3.1 Charging Tester and DC Voltage/Ammeter Power Meter. Housed in a tough aluminum alloy shell, it displays 13 real-time parameters on a crisp 0.85-inch OLED screen — all at a glance. Whether you're testing a charger, USB cable, or power bank, this compact device gives you precise, reliable readings instantly.

Made in Mainland China.

Key Features

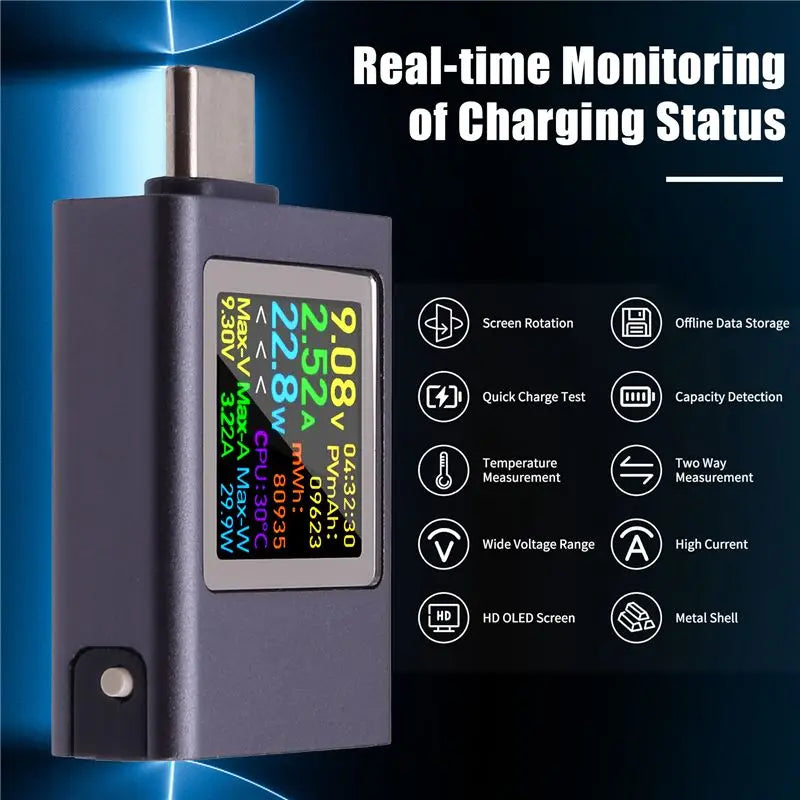

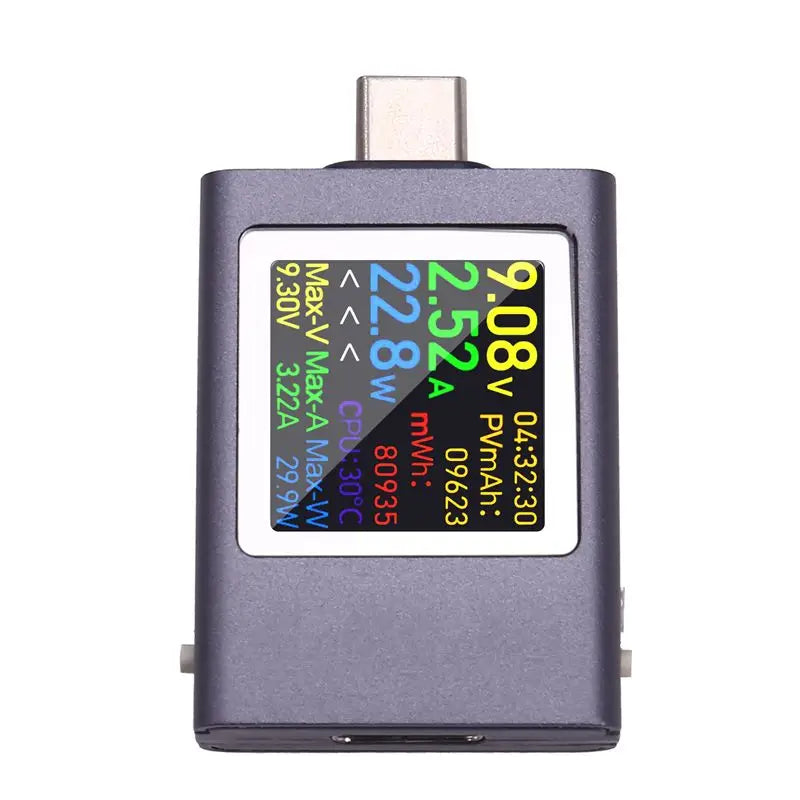

• 13-in-1 Parameter Display: Simultaneously shows current, voltage, power, energy, capacity, timing, brightness level, screen-off interface, current direction, and max voltage/current/power recordings — all on one screen.

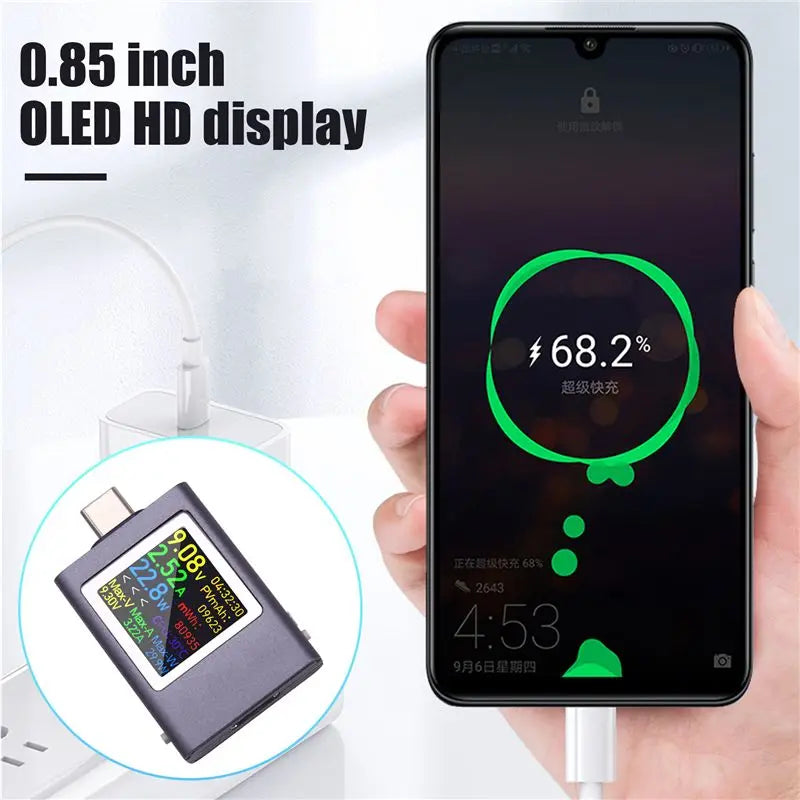

• 0.85" OLED HD Display: Crystal-clear high-definition readout with 360° screen rotation via button press — read it from any angle.
• High-Current 12A Terminal: Supports up to 12A for stable, accurate measurements even at higher charge rates.
• Broad Fast-Charge Protocol Support: Compatible with PD2.0, PD3.0, PD3.1, QC2.0, QC3.0, FCP, SCP, AFC, PE, DASH, VOOC, and SuperVOOC — virtually every major fast-charging standard covered.
• Two-Way Current Testing: Full interface compatibility with bidirectional current detection for comprehensive charging analysis.

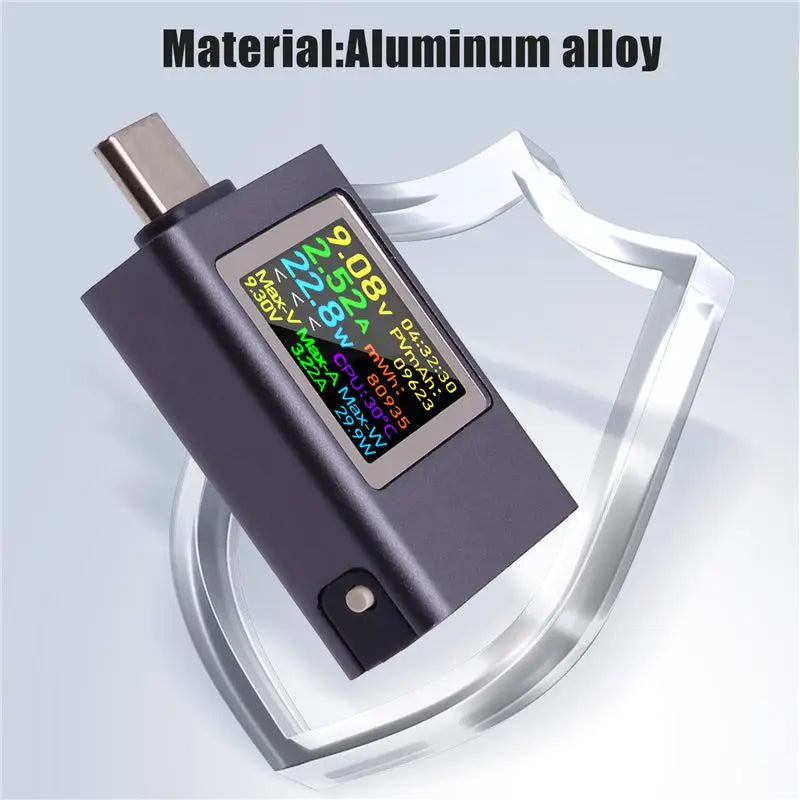

• Durable Aluminum Alloy Shell: Dustproof and drop-resistant construction for reliable use in workshop or travel environments.
• Two Display Page Modes: Switch between views for added convenience and focused monitoring.

Measurement Specifications

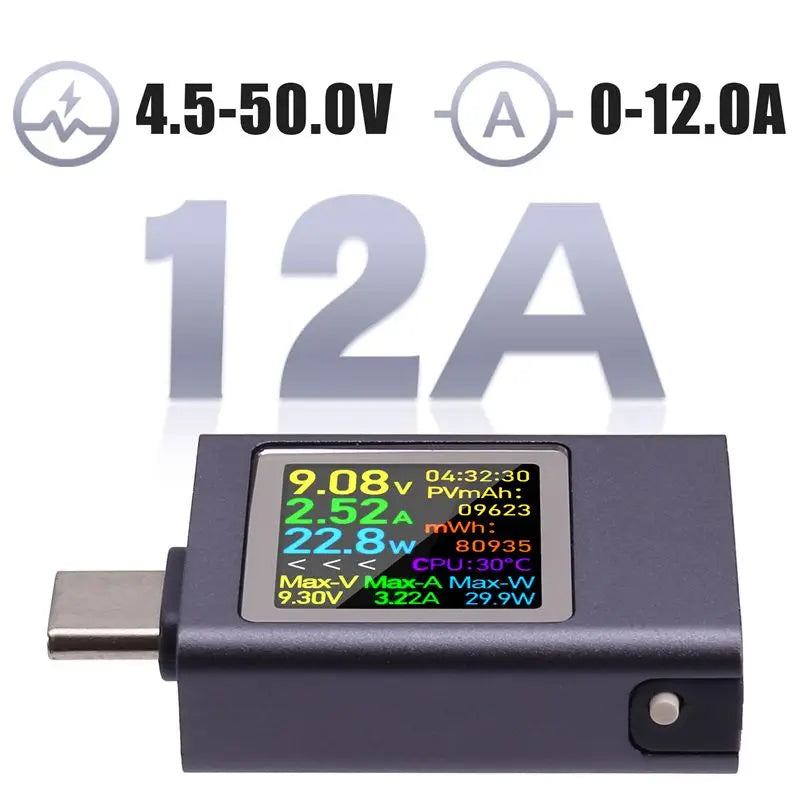

• Voltage: 4.50 – 50.0 V (resolution: 0.01 V)
• Current: 0.00 – 12.0 A (resolution: 0.01 A)
• Power: 0.00 – 600.00 W (resolution: 0.01 W)
• Capacity Accumulation: 0 – 99,999 mAh
• Energy Accumulation: 0 – 9,999 Wh
• Temperature: 0 – 100 °C (resolution: 1 °C)
• Timing: Up to 999H 59M 59S
• Material: Aluminum alloy | Color: Gray

What's in the Box

• 1 × Type-C PD3.1 Cell Phone Charging Tester

Note: Slight color differences may occur due to screen settings and lighting. Measurement tolerance is ±1–3 cm.

Explore More Useful Tools

Looking for more handy gadgets? Check out our 10-in-1 Multi-Functional Bone Wrench Hex Socket Spanner for portable repairs, or the 3-in-1 Precision Eyeglass Screwdriver Keychain for fine precision work on the go.

Learn more: ENERGY STAR product efficiency guidance

Frequently Asked Questions

Q: What fast-charging protocols does this USB-C power meter support?

A: This PD3.1 charging tester supports a wide range of fast-charging protocols including PD2.0, PD3.0, PD3.1, QC2.0, QC3.0, FCP, SCP, AFC, PE, DASH, VOOC, and SuperVOOC — making it compatible with virtually all modern fast-charging standards for comprehensive testing.

Q: How many parameters can the DC voltage ammeter display at once?

A: The tester features a 13-in-1 parameter display on a single 0.85-inch OLED screen, showing current, voltage, power, energy accumulation, capacity (mAh), timing, brightness setting, current direction, and peak voltage/current/power recordings simultaneously.

Q: Is the screen easy to read in different orientations?

A: Yes! The OLED display can be rotated 360° using the onboard button, so you can orient the readout to your preferred viewing angle no matter how the device is positioned.

Q: Does this tester come with a battery or require external power?

A: No battery is included or required. The Type-C charging tester is powered through the USB-C connection it is actively testing — simply plug it in line between your charger and device to begin monitoring.
