RV24YN 20S B502 Rotary Taper Carbon Potentiometer – 5K Ohm with Dial & Knob (4-Pack)
Take precise control of your electronic projects with this 4-pack of RV24YN 20S rotary taper carbon potentiometers. Rated at 5K Ohm (B502) with a ±10% resistance tolerance, each unit ships complete with a graduated dial and a control knob — everything you need to adjust timer circuits, motor speed controllers, temperature regulators, and a wide range of DIY electrical builds.
Constructed from durable metal and plastic, the single-turn carbon film design delivers smooth, consistent resistance adjustment across the full rotational range. The 6 × 10 mm (D × L) shaft fits standard panel cutouts, and the 9 mm threaded bushing mounts securely to enclosures of all types.
Made in Mainland China.
Key Specifications

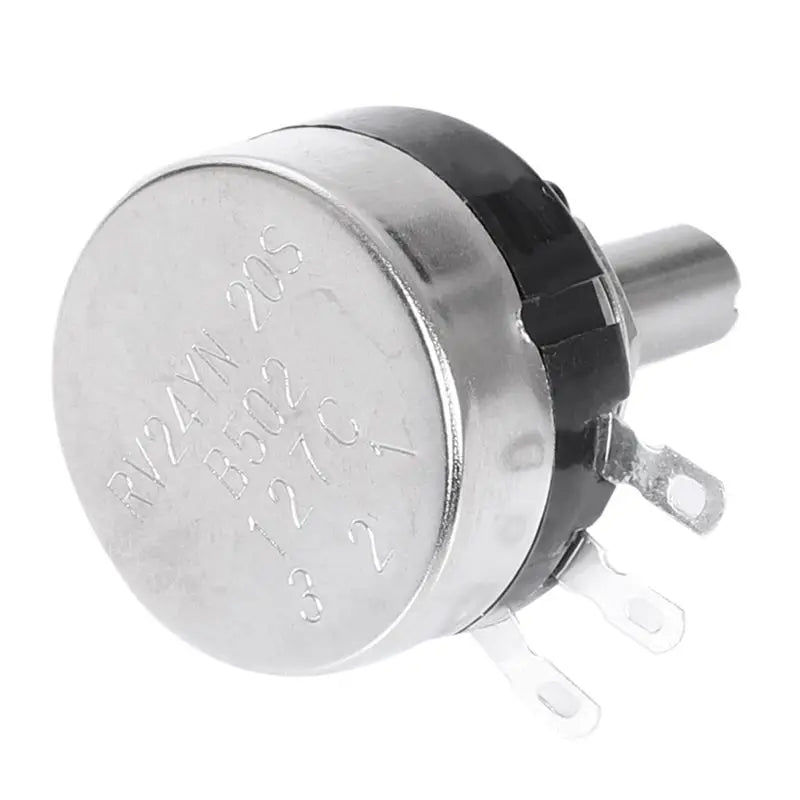

- Model: RV24YN 20S / B502
- Type: Single-turn rotary taper carbon film potentiometer
- Resistance Value: 5K Ohm (5,000 Ω)
- Resistance Tolerance: ±10%
- Terminals: 3
- Shaft Size: 6 × 10 mm (Ø × L)
- Screw Thread Diameter: 9 mm
- Potentiometer Body Size: 25 × 14 mm (Ø × T)

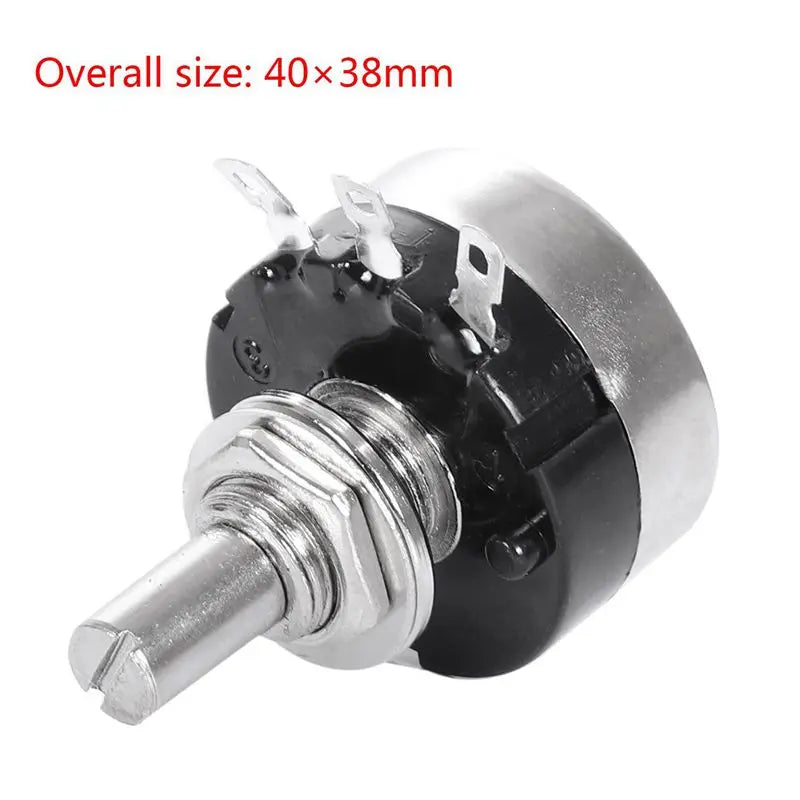

- Total Size (Dial): 40 × 38 mm (Ø × H)
- Color: Black & Silver Tone
- Material: Metal + Plastic
- Weight: 112 g (full set)

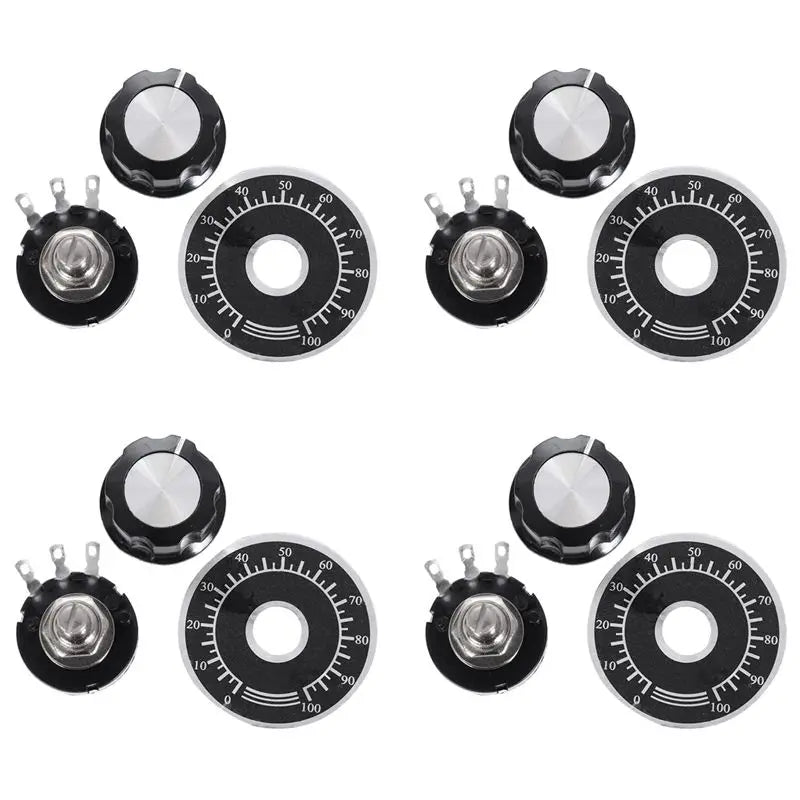

Package Contents
- 4 × RV24YN 20S Potentiometer

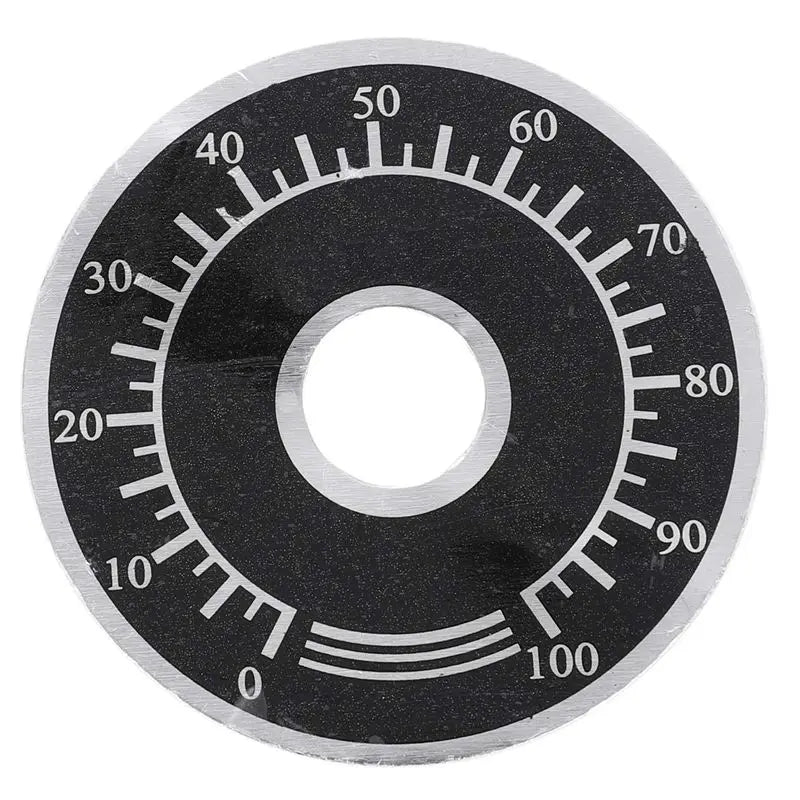

- 4 × Graduated Dial

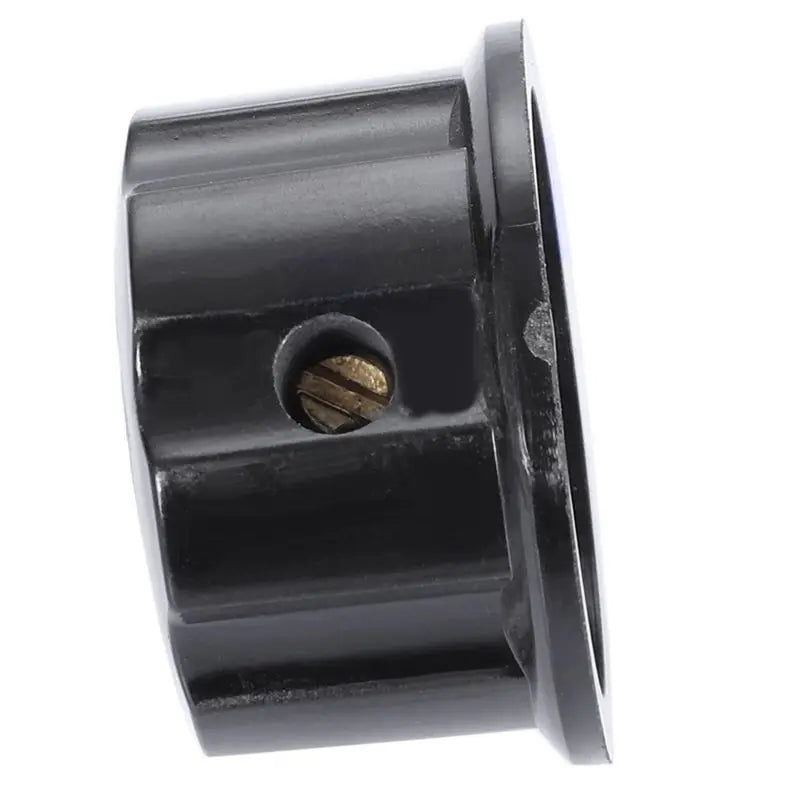

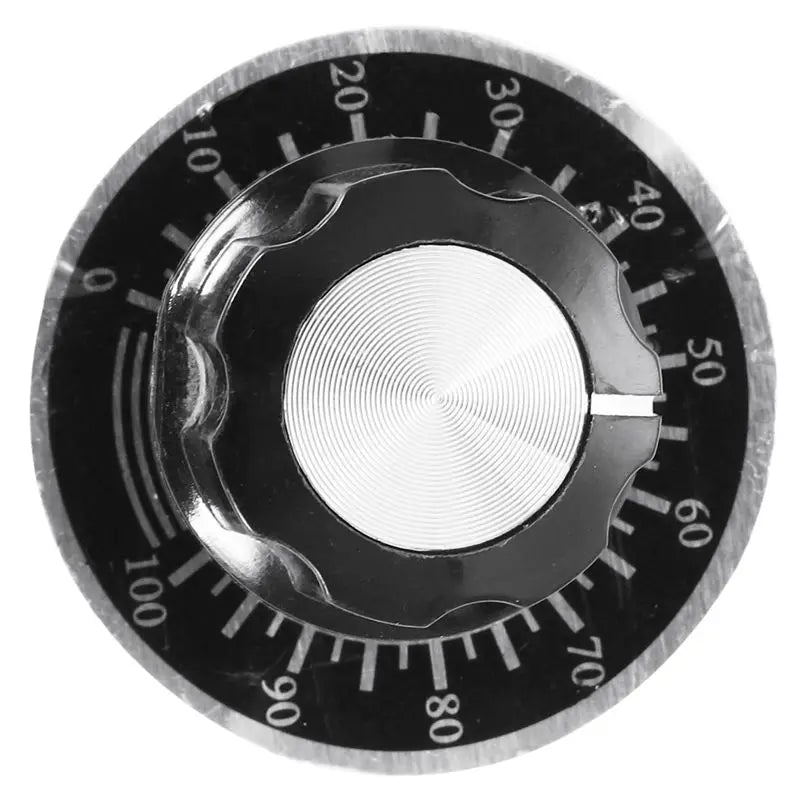

- 4 × Control Knob
Common Applications
- Timer circuit adjustment
- Motor speed control
- Temperature regulation
- Audio volume & tone controls
- DIY electronics & prototyping
- Industrial & hobbyist equipment builds
Related Products You May Need
- 10-in-1 Multi-Functional Wrench – Portable Repair Hand Tool
- A01F-DF-6 Handheld Electric Enameled Copper Wire Stripper 110V
- 3-in-1 Precision Screwdriver Keychain – Mini Repair Tool
Learn more: OSHA on eye and face protection
Frequently Asked Questions
Q: What is the resistance value and tolerance of this carbon potentiometer?
A: Each RV24YN 20S potentiometer has a resistance value of 5K Ohm (5,000 Ω) with a tolerance of ±10%. This makes it suitable for applications where a moderate range of resistance adjustment is required, such as timer, speed, and temperature control circuits.
Q: Does this potentiometer come with a knob and dial?
A: Yes! Every pack includes 4 potentiometers, 4 graduated dials, and 4 control knobs, so your units are ready to mount and use straight out of the box — no need to source hardware separately.
Q: What panel hole size is needed to mount this potentiometer?
A: The shaft diameter is 6 mm and the threaded bushing measures 9 mm in diameter, so you will need a 9 mm panel hole to mount the potentiometer securely using the included threading.
Q: Is this a single-turn or multi-turn potentiometer?
A: This is a single-turn (singleturn) carbon film rotary potentiometer. Full resistance adjustment is achieved within one complete rotation of the shaft, which is ideal for quick and intuitive manual control applications.
